Read MoreTL1105 Series Through Hole Tactile Switch
TL1105 Series Through Hole Tactile Switch
Stock Check for TL1105DF160Q
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Through Hole
About TL1105 Series
- Through hole, or through hole right angle mounting design
- 6mm x 6mm
- Ground terminal option (TLE1105)
- 100gf, 160gf, or 250gf operating force
- Many actuator height options
- Many additional cap and color options for certain models
- 100,000 cycle life
- Silver or gold contact material
- -40°C to 85°C operating temperature
- 50mA @ 12VDC
TL1105 Series Markets
Product Specifications

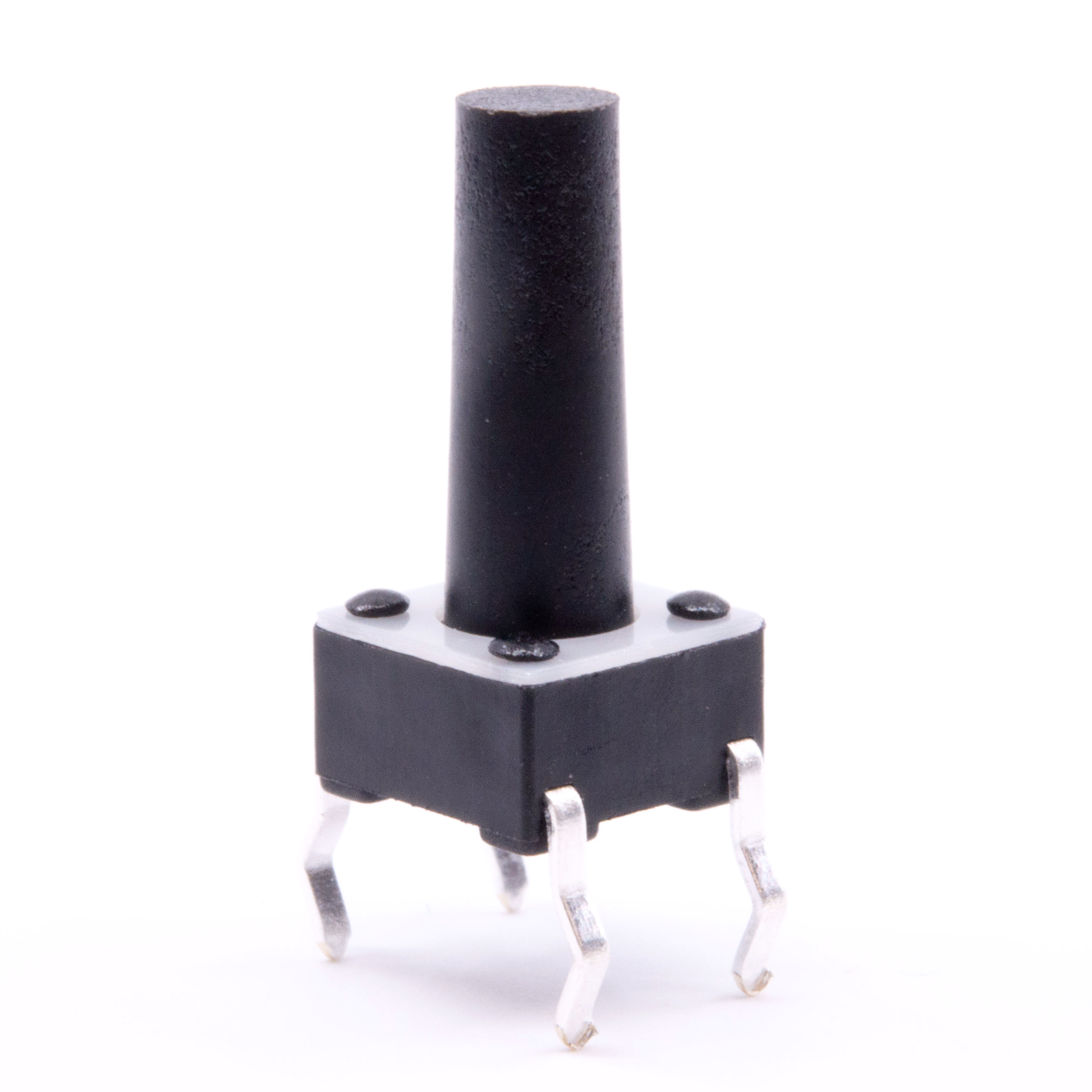

TL1105DF160Q
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Through Hole
- Series Name TL1105
- PackagingBulk
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeThrough Hole
- Termination TypePC Pin
- Contact MaterialSilver
- Actuator TypeStandard
- Actuator Height13.00mm
- Illumination Style-
- Illumination Color-
- Operating Force160gf
- Operating Temperature-20°C to 70°C
