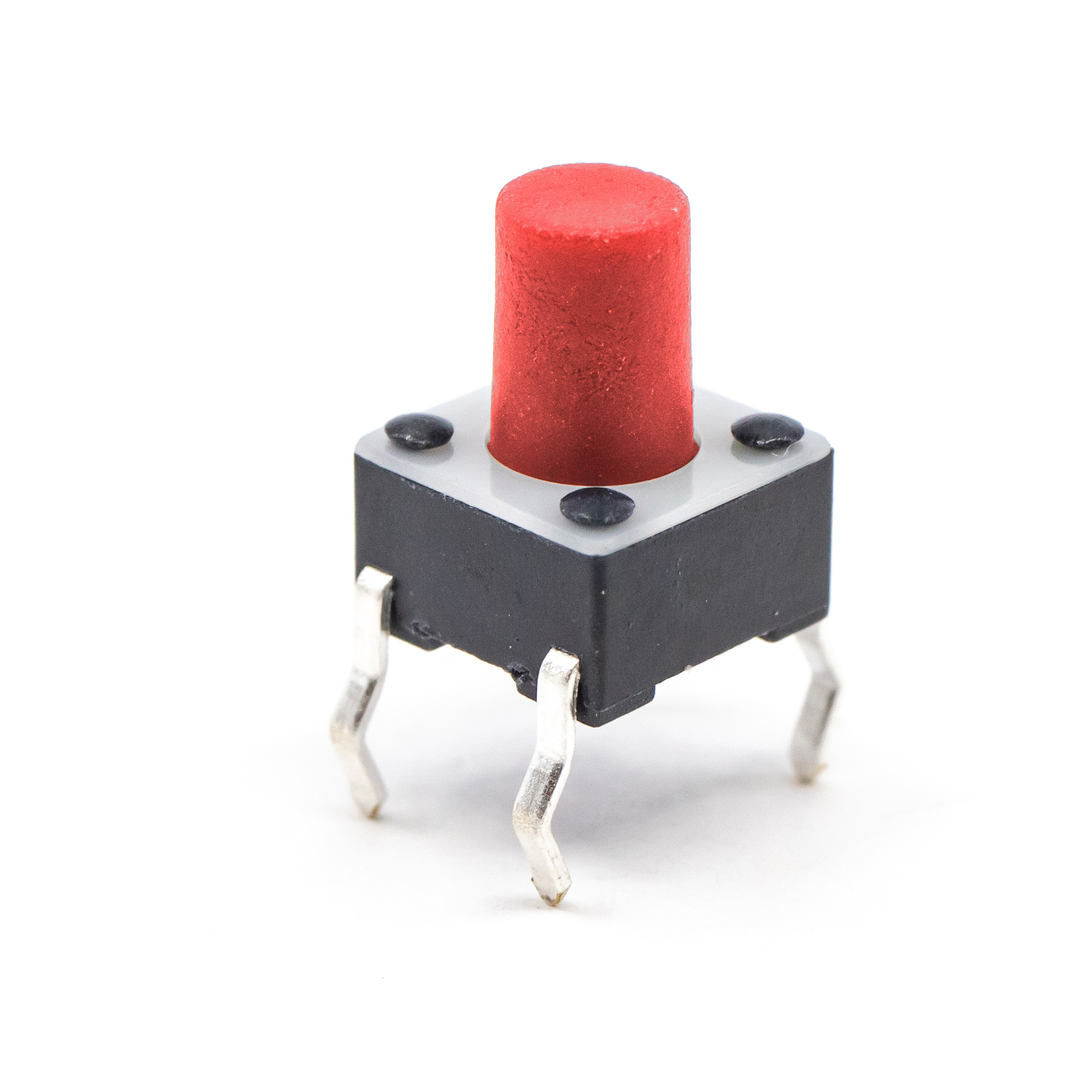

TL1105 Series Through Hole Tactile Switch
Stock Check for TL1105CF250Q
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Through Hole, Illuminated
About TL1105 Series
- Through hole, or through hole right angle mounting design
- 6mm x 6mm
- Ground terminal option (TLE1105)
- 100gf, 160gf, or 250gf operating force
- Many actuator height options
- Many additional cap and color options for certain models
- 100,000 cycle life
- Silver or gold contact material
- -40°C to 85°C operating temperature
- 50mA @ 12VDC
TL1105 Series Markets
Product Specifications
TL1105CF250Q
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Through Hole, Illuminated
- Series Name TL1105
- PackagingBulk
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeThrough Hole
- Termination TypePC Pin
- Contact MaterialSilver
- Actuator TypeStandard
- Actuator Height8.00mm
- Illumination StyleNon-illuminated
- Illumination ColorNon-illuminated
- Operating Force250gf
- Operating Temperature-20°C to 70°C
