Read MoreTL1018 Series Miniature SMT Tactile Switch

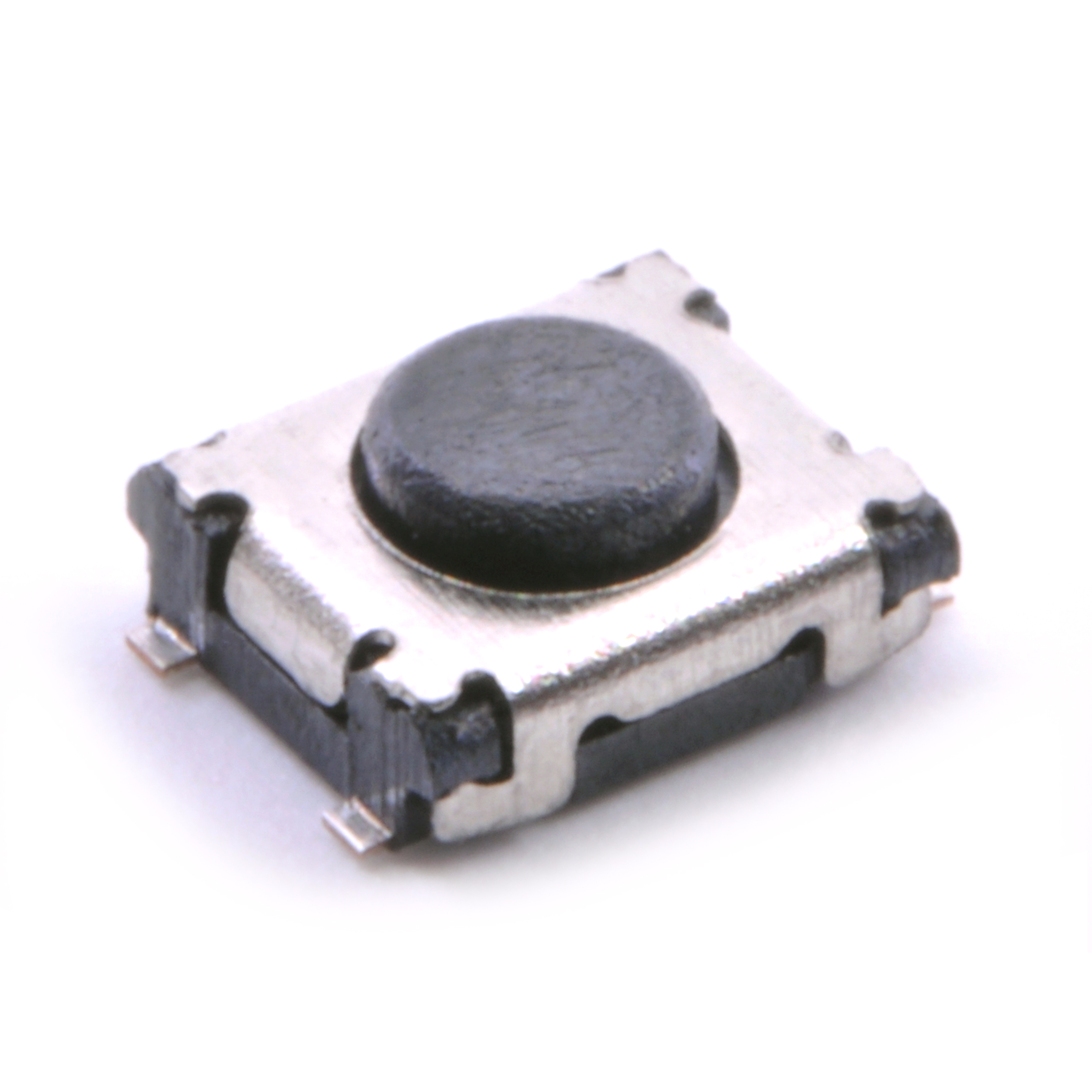

TL1018 Series Miniature SMT Tactile Switch
Stock Check for TL1018AAAF160QG
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Illuminated
About TL1018 Series
- Surface mount (SMT) design
- 3.5mm x 2.6mm
- 160gf, 240gf, 340gf, or 450gf operating force
- Ground terminal option
- Mounting boss option
- Up to 500,000 cycle life
- Silver contact material
- -40°C to 85°C operating temperature
- 50mA @ 12VDC
- Tape and Reel packaging
TL1018 Series Markets
Product Specifications
TL1018AAAF160QG
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Illuminated
- Series Name TL1018
- PackagingTape & Reel
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeSurface Mount
- Termination TypeGull Wing
- Contact MaterialSilver
- Actuator TypeRound, Button
- Actuator Height1.40mm
- Illumination StyleNon-illuminated
- Illumination ColorNon-illuminated
- Operating Force160gf
- Operating Temperature-40°C to 85°C
