Read MoreTL1014 Series Miniature, SMT Right Angle Tactile Switch

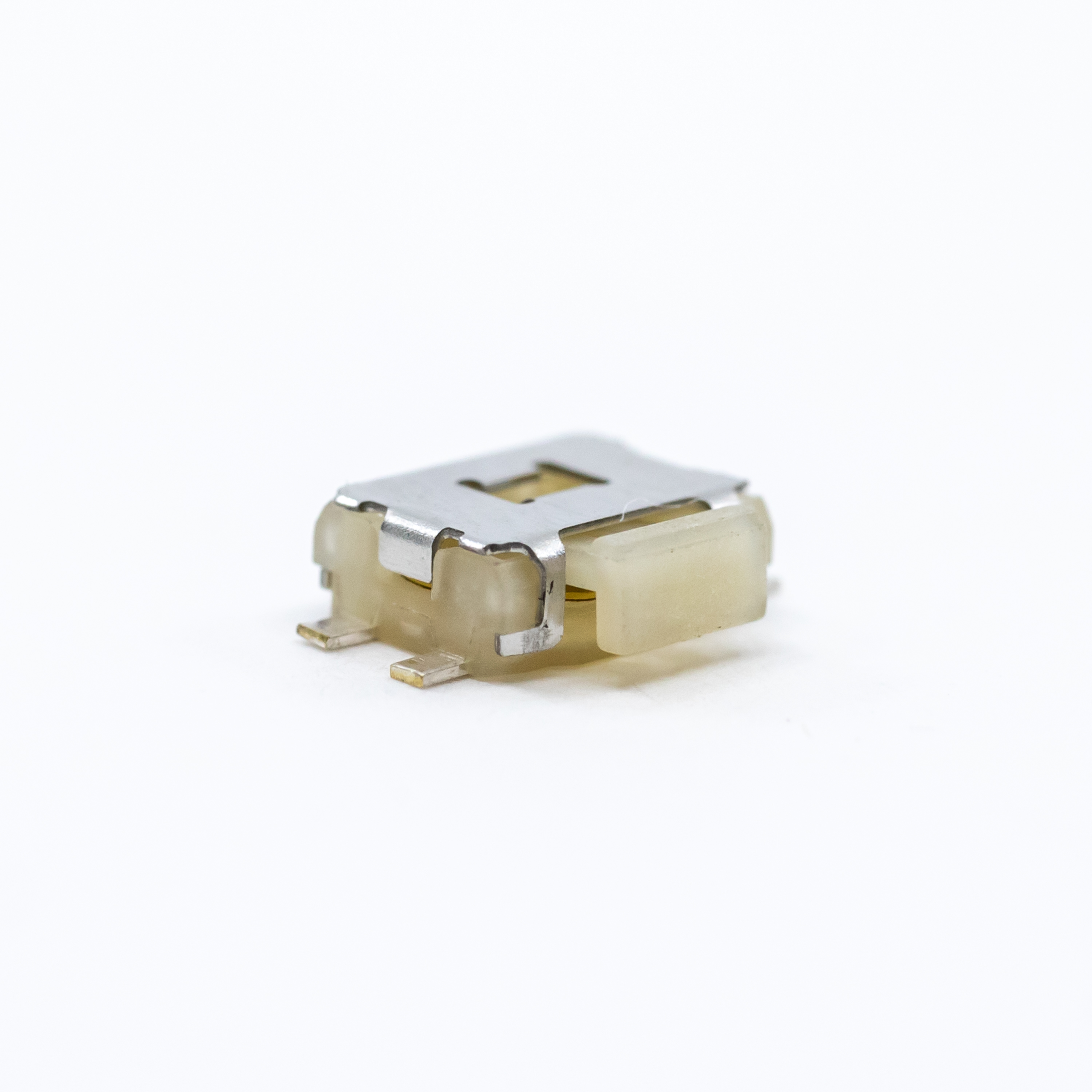

TL1014 Series Miniature, SMT Right Angle Tactile Switch
Stock Check for TL1014AF220QG
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Right Angle
About TL1014 Series
- Surface mount right angle (SMT) design
- 4.7mm x 3.5mm
- 4.5mm actuator length
- 1.65mm height off pcb
- 160gf or 220gf operating force
- Mounting boss option
- Gull wing termination
- Up to 200,000 cycle life
- Silver contact material
- -40 to 85°C operating temperature
- 50mA @12VDC
- Tape and reel packaged
TL1014 Series Markets
Product Specifications
TL1014AF220QG
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Right Angle
- Series Name TL1014
- PackagingTape & Reel
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeSurface Mount, Right Angle
- Termination TypeGull Wing
- Contact MaterialSilver
- Actuator TypeRectangular, Button
- Actuator Height4.50mm
- Illumination Style-
- Illumination Color-
- Operating Force220gf
- Operating Temperature-40°C to 85°C
