Read MoreRR3130 Series Round, Power Rocker Switch

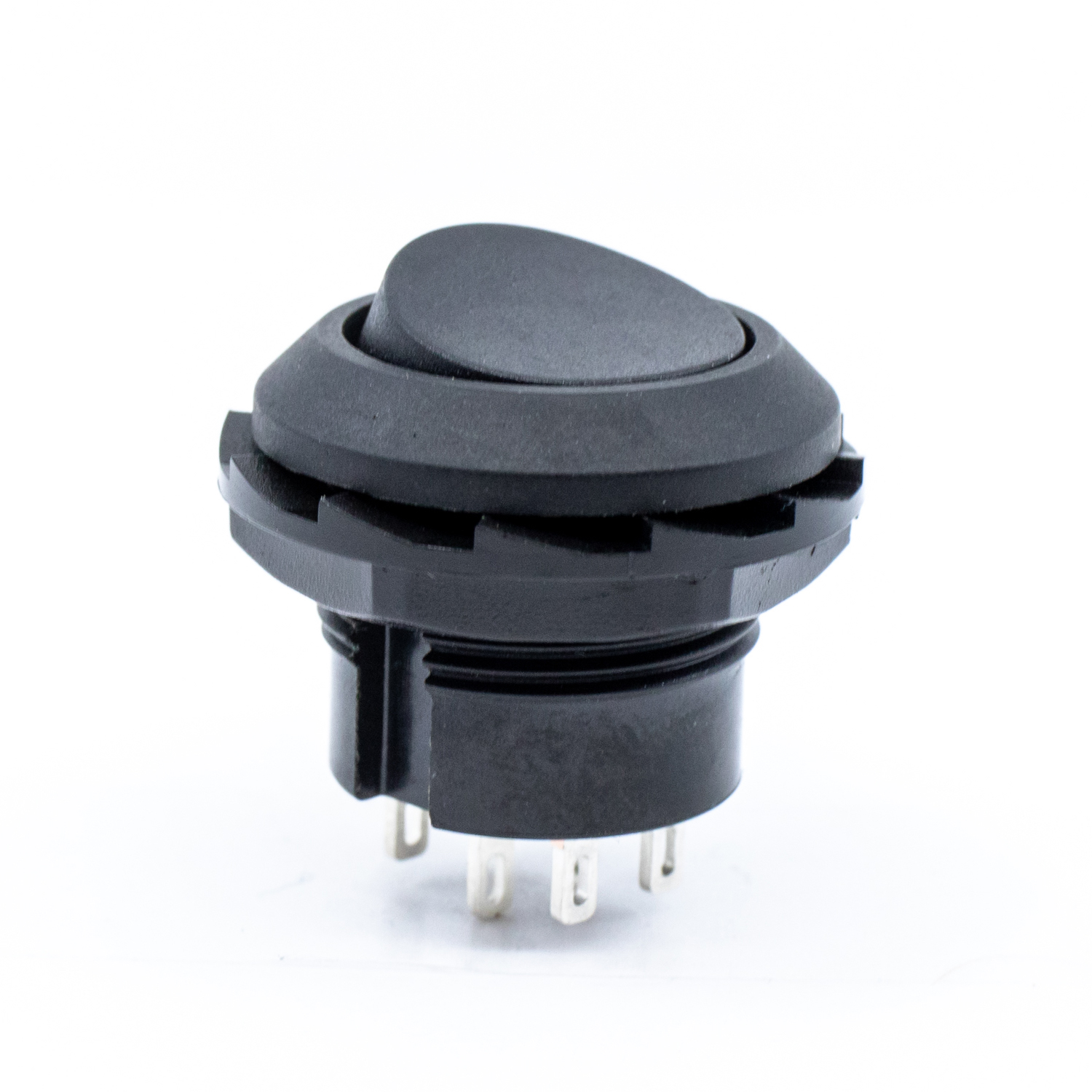

RR3130 Series Round, Power Rocker Switch
Stock Check for RR3130BBLKBLKES
Not the product you are looking for? Configure your product
ROCKER, 10A, 125VAC, DPDT, On-On, Panel Mount, Threaded Body with Nut
About RR3130 Series
- 18.2mm panel cutout
- 10A 125VAC, 6A 250VAC; UL, cUL
- 1 or 2 pole; single or double throw
- Panel mount threaded body with nut design
- Solder termination
- Housing and actuator color options
- Actuator marking options
- Non-illuminated
- 0°C to 65°C operating temperature
RR3130 Series Markets
Product Specifications
RR3130BBLKBLKES
ROCKER, 10A, 125VAC, DPDT, On-On, Panel Mount, Threaded Body with Nut
- Series Name RR3130
- PackagingBulk
- Current Rating10A
- Voltage Rating125VAC
- CircuitDPDT
- FunctionOn-On
- Mounting TypePanel Mount, Threaded Body with Nut
- Termination TypeSolder
- Actuator TypeRound
- Actuator ColorBlack
- Illumination Style-
- Illumination Color-
- Panel Cutout DimensionsCircular - 18.2mm Dia.
- Operating Temperature0°C to 65°C
Support for RR3130BBLKBLKES
Not the product you are looking for? Configure your product
