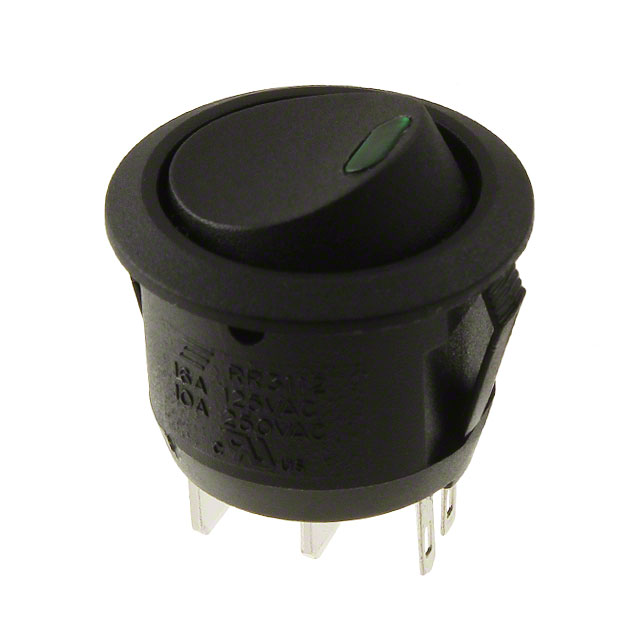

RR3112 Series Round, Illuminated, Power Rocker Switch
Stock Check for RR3112LBLKBLKGRNEF3
Not the product you are looking for? Configure your product
ROCKER, 16A, 125VAC, SPST, On-Off, Panel Mount, Snap-In, Illuminated
About RR3112 Series
- 20.2mm panel cutout
- 16A 125VAC, 10A 250VAC; UL, cUL
- SPST or SPDT; momentary or latching function
- Panel mount snap-in design
- Quick connect – 0.187″ termination
- Full illumination or non-illuminated options
- Six actuator marking options
- LED or Neon bulb illumination color and voltage options
- 0°C to 65°C operating temperature
RR3112 Series Markets
Product Specifications
RR3112LBLKBLKGRNEF3
ROCKER, 16A, 125VAC, SPST, On-Off, Panel Mount, Snap-In, Illuminated
- Series Name RR3112
- PackagingBulk
- Current Rating16A
- Voltage Rating125VAC
- CircuitSPST
- FunctionOn-Off
- Mounting TypePanel Mount, Snap-In
- Termination TypeQuick Connect - 0.187"
- Actuator TypeRound - Illuminated
- Actuator ColorBlack
- Illumination StyleFull
- Illumination ColorLED, Green
- Illumination Voltage3VDC
- Panel Cutout DimensionsCircular - 20.2mm Dia.
- Operating Temperature0°C to 65°C
Support for RR3112LBLKBLKGRNEF3
Not the product you are looking for? Configure your product
