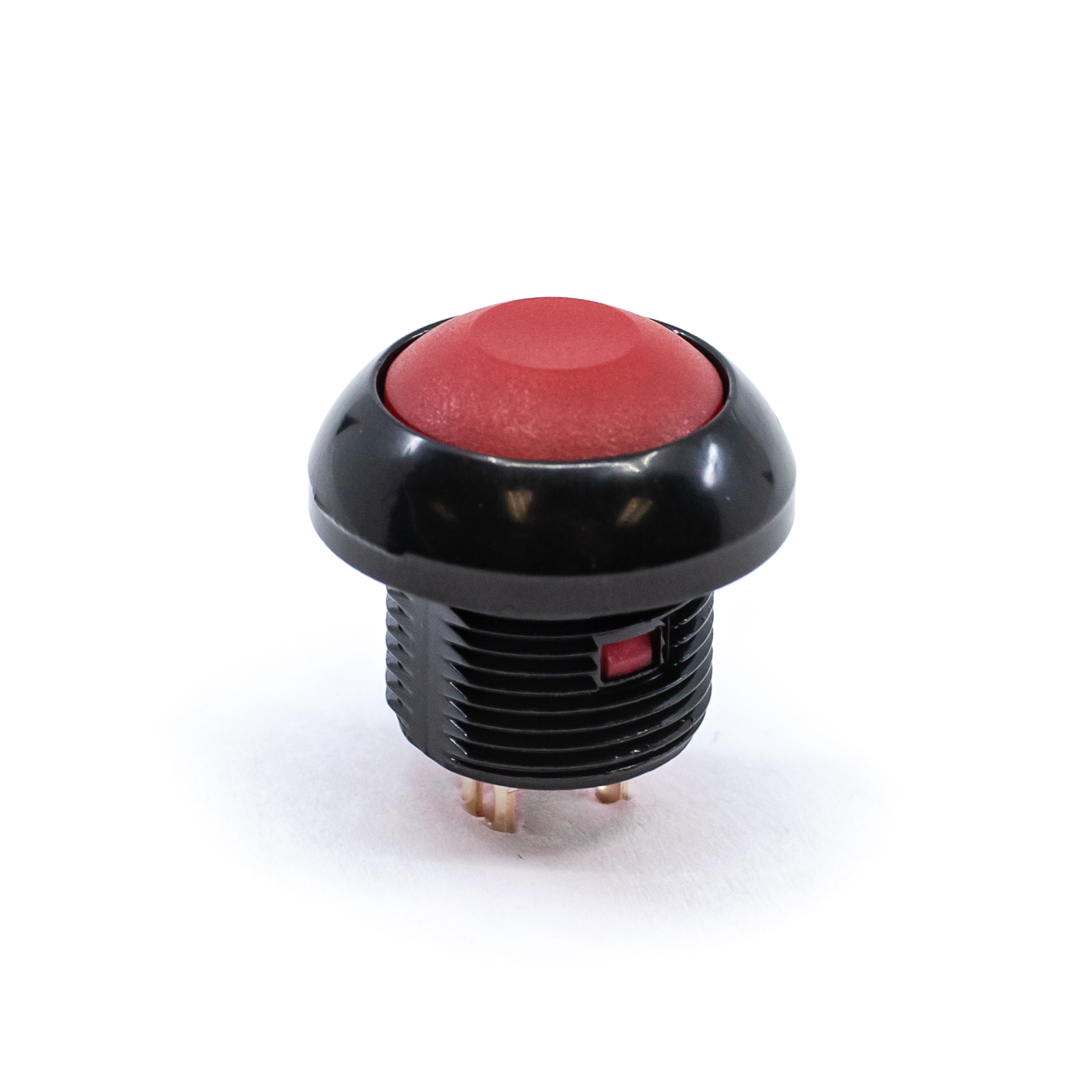

RP8300 Series Round, Illuminated Pushbutton Switch
Stock Check for RP8300B2M1CEBLKREDNIL
Not the product you are looking for? Configure your product
PUSHBUTTON, 200mA, 50VDC, SPST, Off-(On), Panel Mount, Front
About RP8300 Series
- Life expectancy of 500,000 cycles
- Electrical Rating: 500mA @ 48 VAC, 200mA @ 50 VDC / 250 VAC
- SPST, momentary pushbuttons;Â IP67 rated
- Threaded mount
- LED illumination options
- Metal Diecast housing (black, stain nickel or chrome)
- Operating Temperature: -30°C to 85°C
- Travel: 1.5mm
RP8300 Series Markets
Product Specifications
RP8300B2M1CEBLKREDNIL
PUSHBUTTON, 200mA, 50VDC, SPST, Off-(On), Panel Mount, Front
- Series Name RP8300
- PackagingBulk
- Current Rating200mA
- Voltage Rating50VDC
- CircuitSPST
- FunctionOff-(On)
- Mounting TypePanel Mount, Front
- Termination TypeSolder
- Contact MaterialGold over Silver
- Actuator TypeRound, Button
- Actuator ColorRed
- Illumination Style-
- Illumination Color-
- Ingress ProtectionIP67
- Panel Cutout DimensionsCircular - 13.6mm Dia.
- Operating Temperature-30°C to 85°C
Support for RP8300B2M1CEBLKREDNIL
