Read MoreRP8300 Series Round, Illuminated Pushbutton Switch

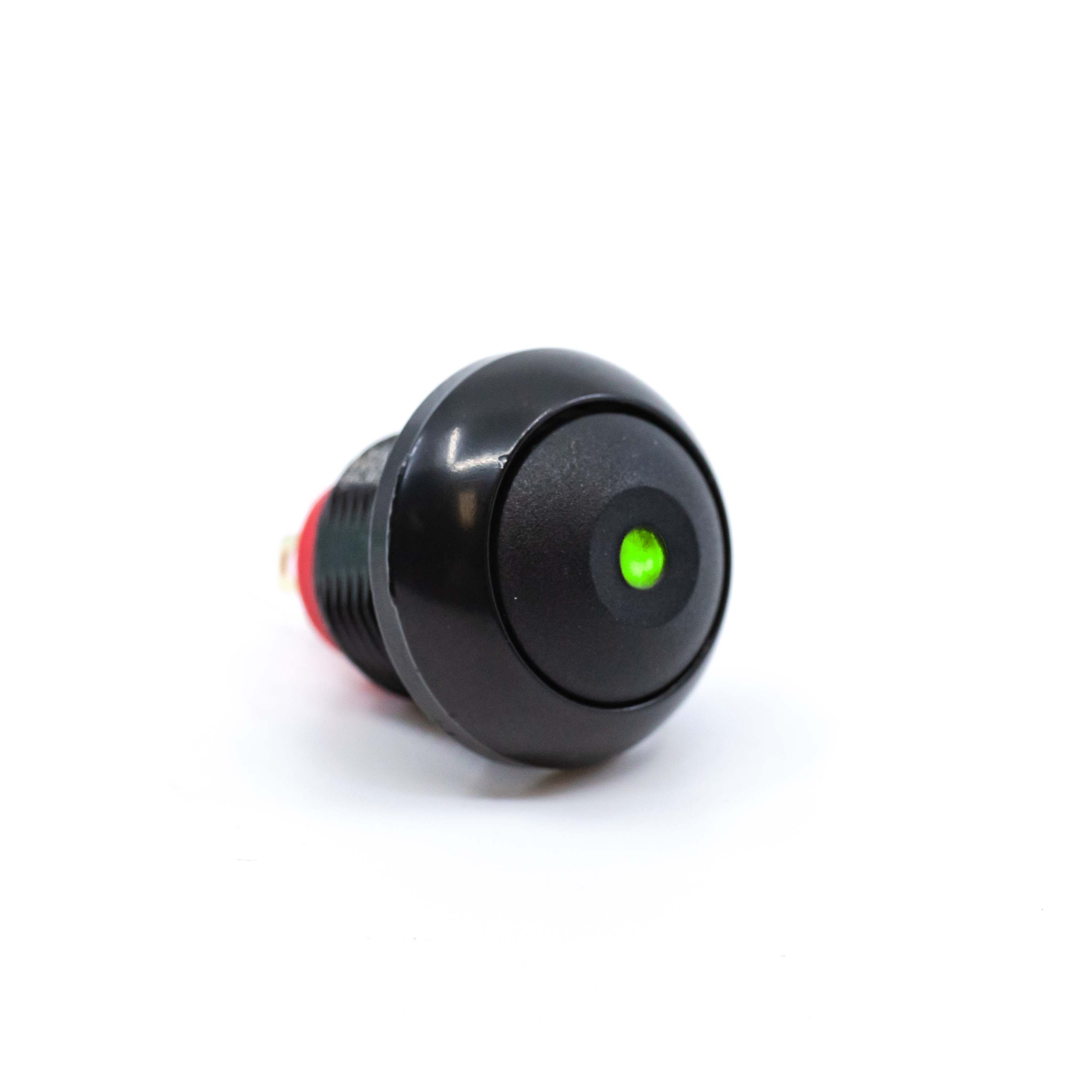

RP8300 Series Round, Illuminated Pushbutton Switch
Stock Check for RP8300B2M1CEBLKBLKGRN
Not the product you are looking for? Configure your product
PUSHBUTTON, 200mA, 50VDC, SPST, Off-(On), Panel Mount, Front, Illuminated
About RP8300 Series
- Life expectancy of 500,000 cycles
- Electrical Rating: 500mA @ 48 VAC, 200mA @ 50 VDC / 250 VAC
- SPST, momentary pushbuttons;Â IP67 rated
- Threaded mount
- LED illumination options
- Metal Diecast housing (black, stain nickel or chrome)
- Operating Temperature: -30°C to 85°C
- Travel: 1.5mm
RP8300 Series Markets
Product Specifications
RP8300B2M1CEBLKBLKGRN
PUSHBUTTON, 200mA, 50VDC, SPST, Off-(On), Panel Mount, Front, Illuminated
- Series Name RP8300
- PackagingBulk
- Current Rating200mA
- Voltage Rating50VDC
- CircuitSPST
- FunctionOff-(On)
- Mounting TypePanel Mount, Front
- Termination TypeSolder
- Contact MaterialGold over Silver
- Actuator TypeRound, Button
- Actuator ColorBlack
- Illumination StyleDot
- Illumination ColorLED, Green
- Illumination Voltage2.1VDC
- Ingress ProtectionIP67
- Panel Cutout DimensionsCircular - 13.6mm Dia.
- Operating Temperature-30°C to 85°C
Support for RP8300B2M1CEBLKBLKGRN
Not the product you are looking for? Configure your product
