RDM Series Sealed, Ultra Slim Rotary DIP Switch

RDM Series Sealed, Ultra Slim Rotary DIP Switch

RDM Series: RDMBR10R2T

Categories: ROTARY DIP

RoHS Compliant REACH Compliant

RDM Series Sealed, Ultra Slim Rotary DIP Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

RDMBR10R2T

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample Request Quote

Stock Check for RDMBR10R2T

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the RDMBR10R2T from our authorized distributors.

In-Stock Distributors

ROTARY DIP, 100mA, 42VDC, BCD, Real Code, Through Hole, Right Angle

Powered by oemsecrets

About RDM Series

  • IP67 rated
  • Electrical ratings: Switch: 42VDC, 100mA; Carry: 42VDC, 400mA
  • Through hole vertical, right angle; or surface mount (SMT) design
  • 3×3 pcb terminal layout
  • Rotary for tool or Rotary with shaft actuator
  • 10 or 16 positions;  Real or complementary code
  • 0.100″ (2.54mm), Full pitch
  • 25,000 steps life expectancy
  • Gold contact material
  • -60ºC to 125ºC operating temperature
  • Tube or tape & reel packaging

Through Hole VS Surface Mount Method? - Switch Smart

RDM Series Markets

Agricultural

Product Specifications

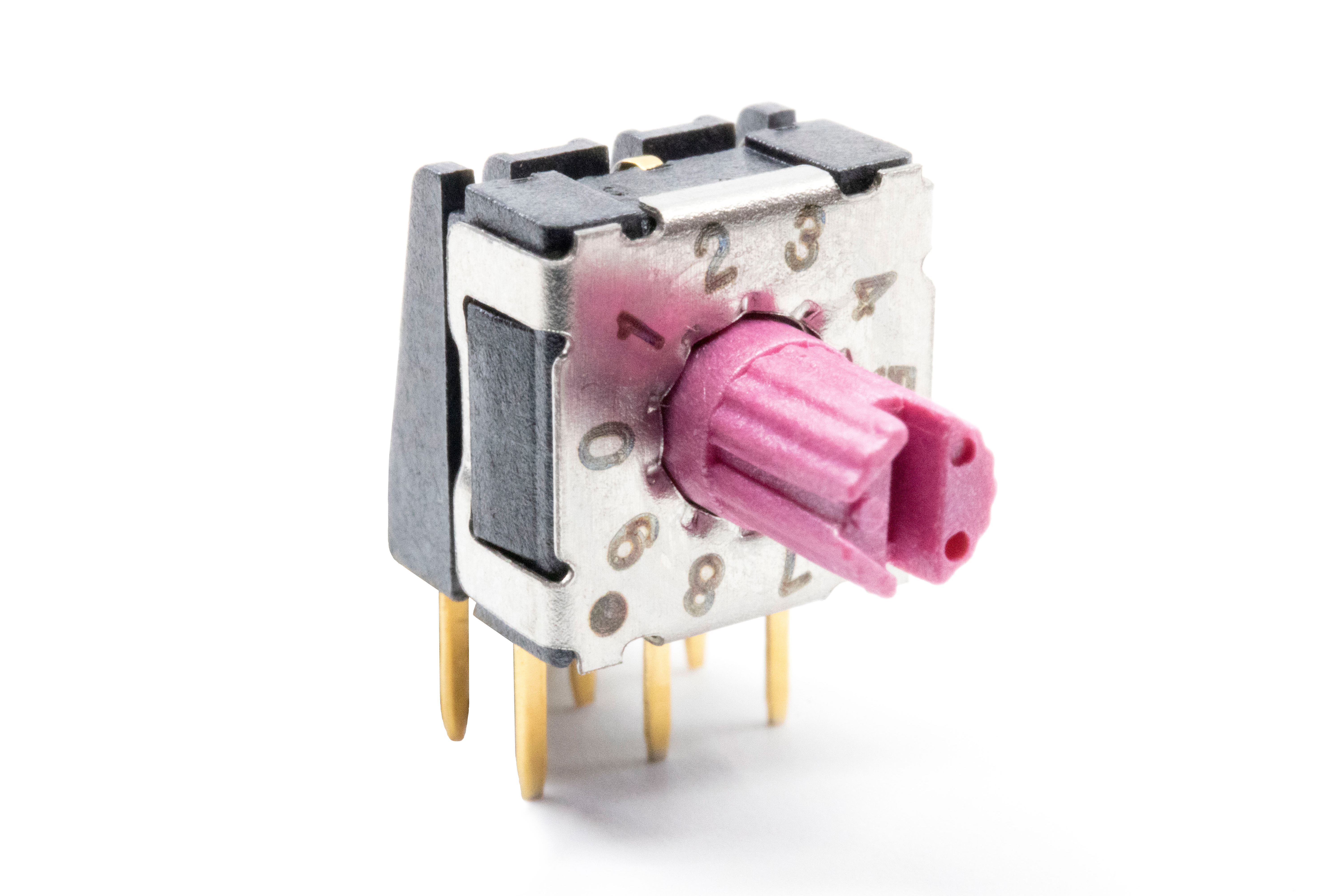

RDMBR10R2T

ROTARY DIP, 100mA, 42VDC, BCD, Real Code, Through Hole, Right Angle

  • Series Name RDM
  • PackagingTube
  • Current Rating100mA
  • Voltage Rating42VDC
  • CircuitBCD
  • Mounting TypeThrough Hole, Right Angle
  • Termination TypePC Pin
  • Contact MaterialGold
  • Actuator TypeRotary with Shaft
  • Ingress ProtectionIP67
  • Operating Temperature-60°C to 125°C
  • Nbr of Positions10
  • Pitch0.100" (2.54mm), Full
