RDM Series Sealed, Ultra Slim Rotary DIP Switch

RDM Series Sealed, Ultra Slim Rotary DIP Switch

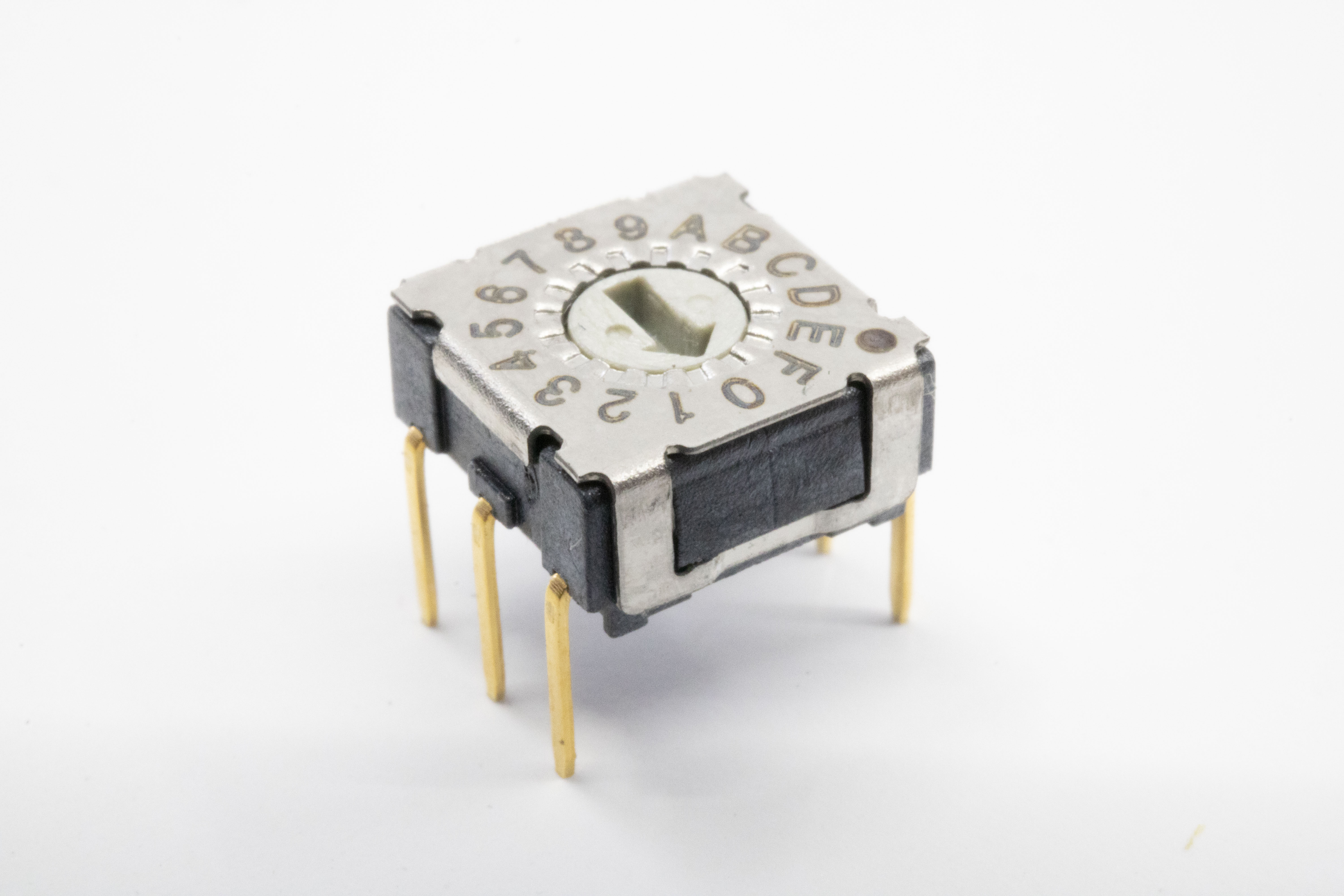

RDM Series: RDMAR16P1T

Categories: ROTARY DIP

RoHS Compliant REACH Compliant

RDM Series Sealed, Ultra Slim Rotary DIP Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

RDMAR16P1T

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for RDMAR16P1T

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the RDMAR16P1T from our authorized distributors.

In-Stock Distributors

#REF!

Powered by oemsecrets

About RDM Series

  • IP67 rated
  • Electrical ratings: Switch: 42VDC, 100mA; Carry: 42VDC, 400mA
  • Through hole vertical, right angle; or surface mount (SMT) design
  • 3×3 pcb terminal layout
  • Rotary for tool or Rotary with shaft actuator
  • 10 or 16 positions;  Real or complementary code
  • 0.100″ (2.54mm), Full pitch
  • 25,000 steps life expectancy
  • Gold contact material
  • -60ºC to 125ºC operating temperature
  • Tube or tape & reel packaging

Through Hole VS Surface Mount Method? - Switch Smart

RDM Series Markets

Agricultural

Product Specifications

RDMAR16P1T

#REF!

  • Series Name RDM
  • PackagingTube
  • Current Rating100mA
  • Voltage Rating42VDC
  • CircuitHexadecimal
  • FunctionReal Code
  • Mounting TypeThrough Hole
  • Termination TypePC Pin
  • Contact MaterialGold
  • Actuator TypeRotary for Tool
  • Ingress ProtectionIP67
  • Operating Temperature-60°C to 125°C
  • Nbr of Positions16
  • Pitch0.100" (2.54mm), Full
