Read MoreP16 Series Illuminated Pushbutton Switch
P16 Series Illuminated Pushbutton Switch
Stock Check for P16OAR1KGRNGRN
Not the product you are looking for? Configure your product
PUSHBUTTON, 8A (AC)/6A (DC), 125VAC/24VDC, SPDT, On-(On), Panel Mount, Front, Illuminated
About P16 Series
- cURus power rated for direct and alternating currents
- Panel mount cutout sized 16mm in diameter
- Circular, rectangular and square panel mount designs
- SPDT, DPDT, 3PDT, 4PDT circuits; maintained (latching) or momentary pushbuttons
- Exclusive socket terminal design
- Mechanical Life: 50,000 cycles
- Neon, incandescent and LED lamps in multiple colors
- Multiple lens colors available
P16 Series Markets
Product Specifications

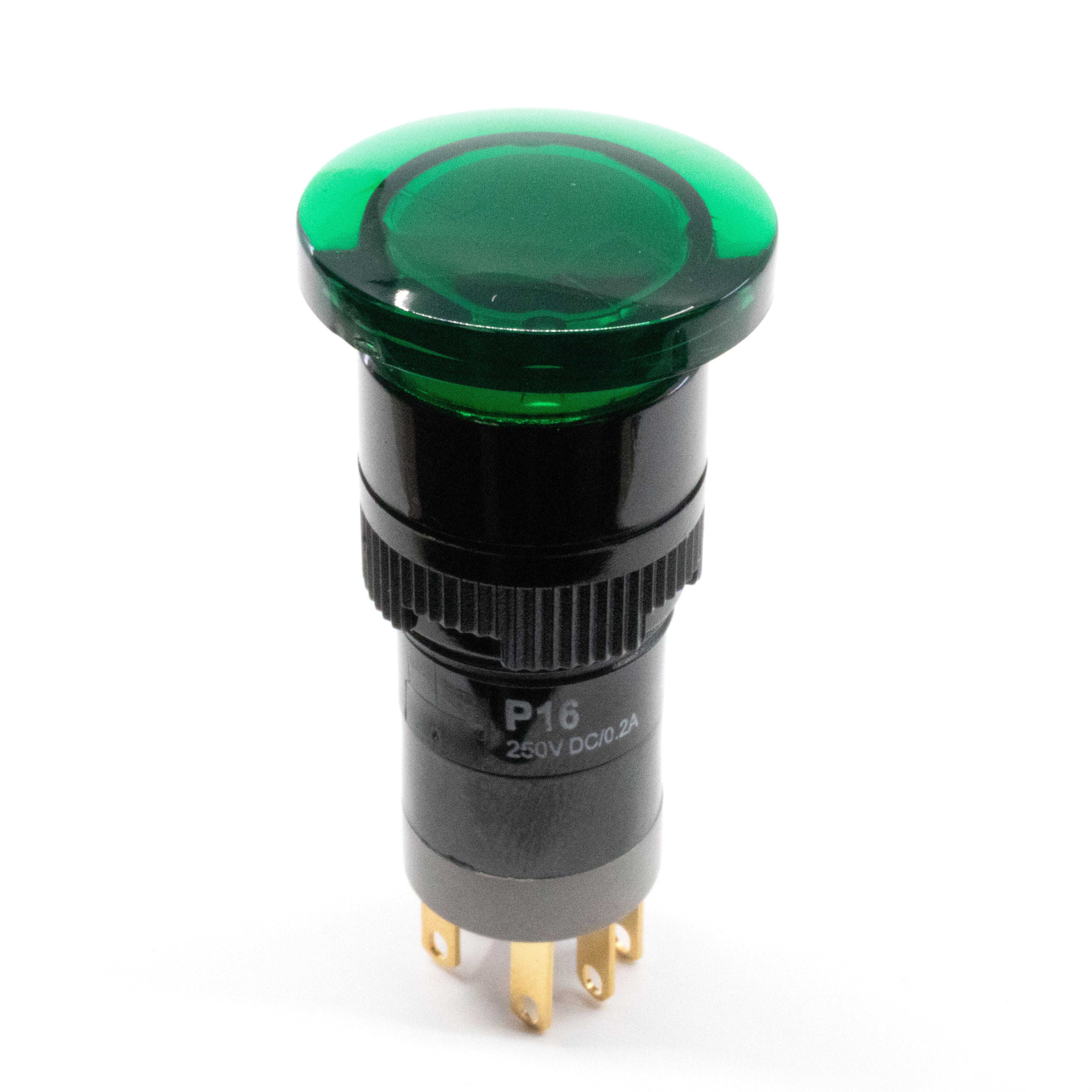

P16OAR1KGRNGRN
PUSHBUTTON, 8A (AC)/6A (DC), 125VAC/24VDC, SPDT, On-(On), Panel Mount, Front, Illuminated
- Series Name P16
- PackagingBulk
- Current Rating8A (AC)/6A (DC)
- Voltage Rating125VAC/24VDC
- CircuitSPDT
- FunctionOn-(On)
- Mounting TypePanel Mount, Front
- Termination TypeQuick Connect - 0.110"
- Actuator TypeRound, Button, Mushroom
- Actuator ColorGreen
- Illumination StyleFull
- Illumination ColorLED, Green
- Illumination Voltage24VDC
- Panel Cutout DimensionsCircular - 16mm Dia.
- Operating Temperature-20°C to 55°C
Support for P16OAR1KGRNGRN
