Read MoreLP4 Series Illuminated Pushbutton Switch
LP4 Series Illuminated Pushbutton Switch
Stock Check for LP4OA1PBCTR
Not the product you are looking for? Configure your product
PUSHBUTTON, 100mA, 30VDC, DPDT, On-(On), Through Hole, Illuminated
About LP4 Series
- Through hole; vertical or right angle mounting design
- Electrical Rating: 100mA, 30VDC
- DPDT; Latching or momentary
- PC Pin termination
- Square, round or plunger actuator
- With or without bezel
- LED illumination options
- Button & housing color options
- Mechanical Life: 50,000 cycles
- -40°C to +85°C operating temperature
Product Specifications

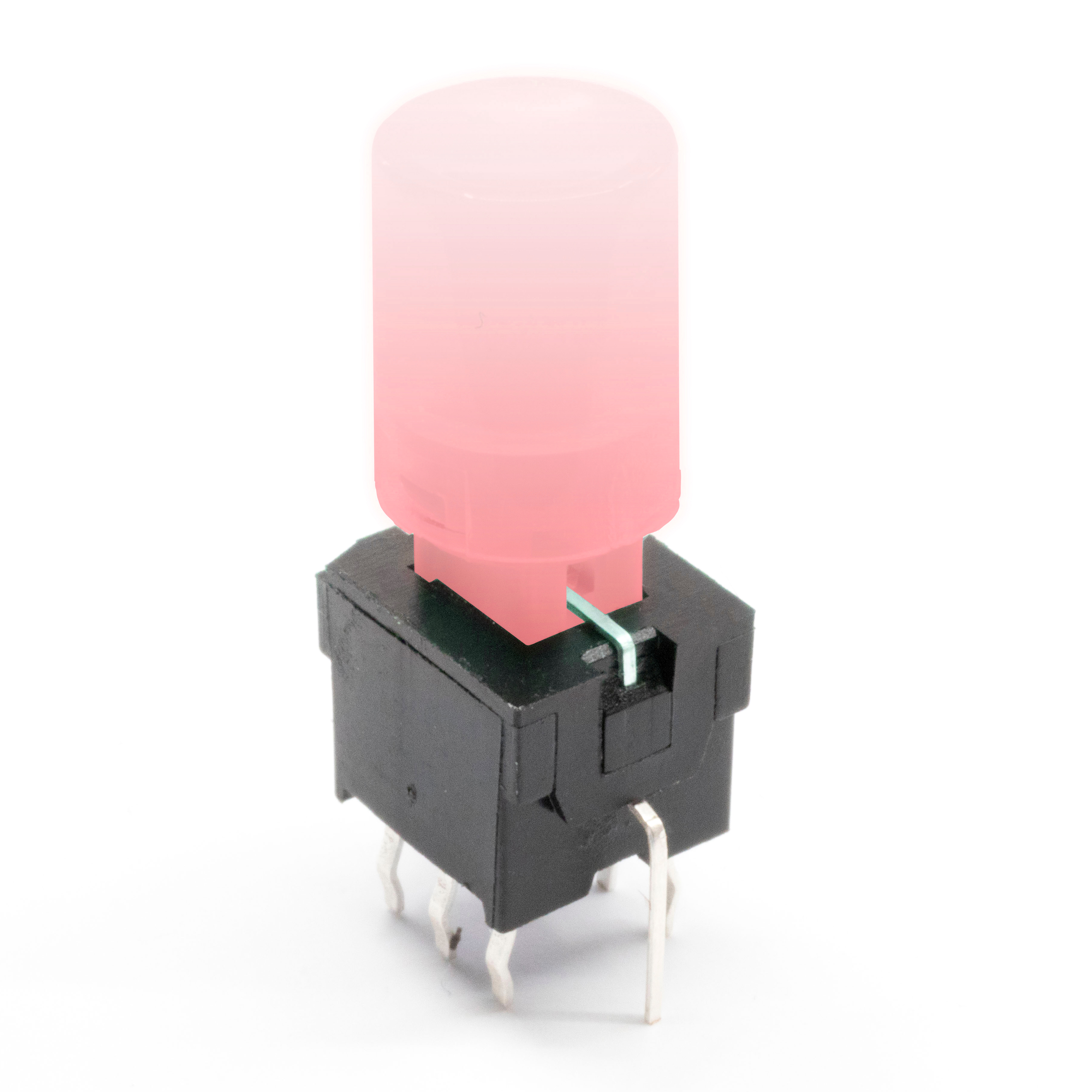

LP4OA1PBCTR
PUSHBUTTON, 100mA, 30VDC, DPDT, On-(On), Through Hole, Illuminated
- Series Name LP4
- PackagingBulk
- Current Rating100mA
- Voltage Rating30VDC
- CircuitDPDT
- FunctionOn-(On)
- Mounting TypeThrough Hole
- Termination TypePC Pin
- Actuator TypeRound, Button
- Illumination StyleFull
- Illumination ColorLED, Red
- Operating Temperature-40°C to 85°C
