Read MoreLP4 Series Illuminated Pushbutton Switch

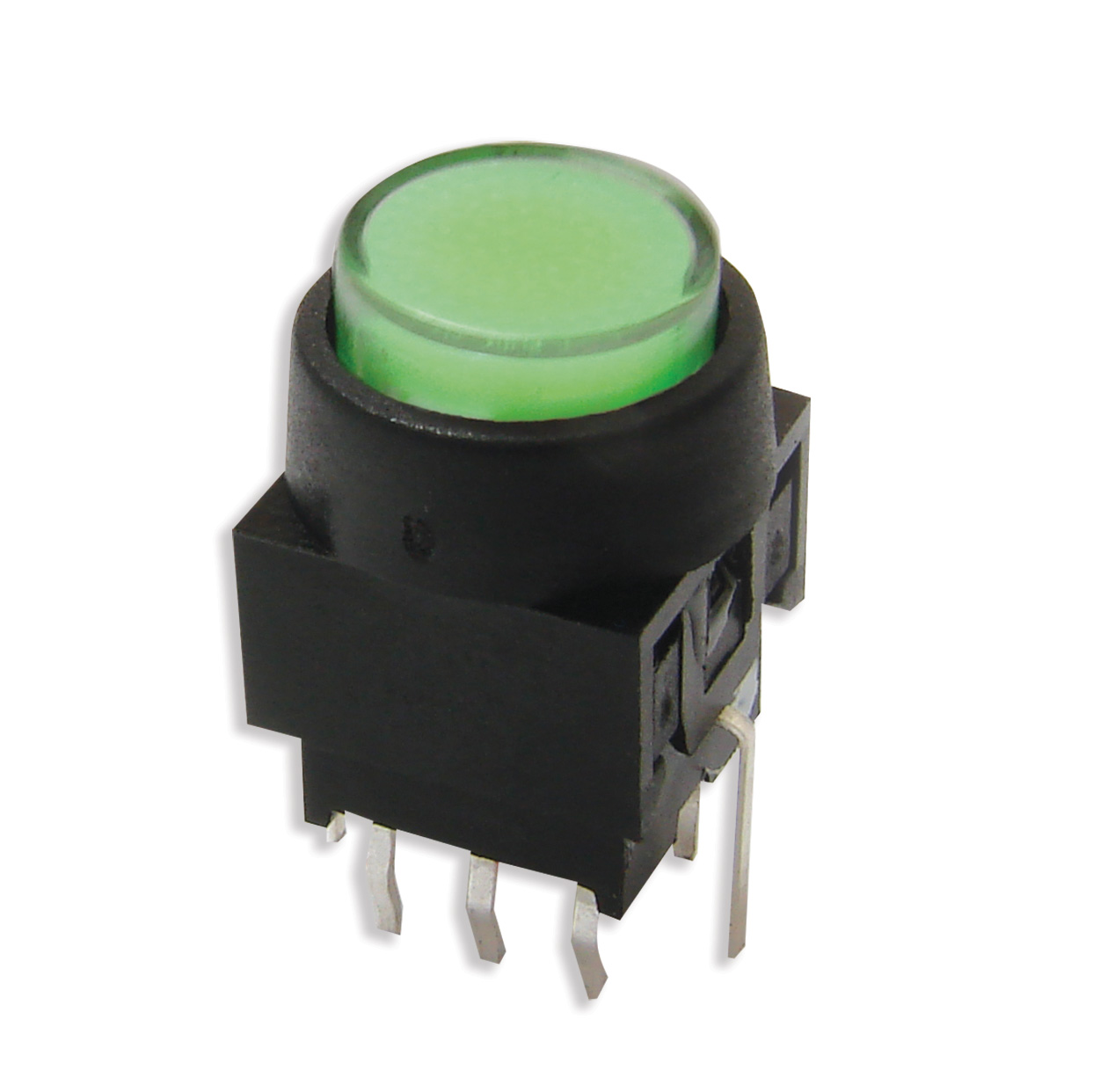

LP4 Series Illuminated Pushbutton Switch
Stock Check for LP4OA1PBCTG
Not the product you are looking for? Configure your product
PUSHBUTTON, 100mA, 30VDC, DPDT, On-(On), Through Hole, Illuminated
About LP4 Series
- Latching and momentary options
- Multiple bezel and button designs
- Right angle or vertical through-hole mounting design
- Full LED illumination options
- 2 poles; momentary and maintained (latching) functions
- Mechanical Life: 50,000 cycles
- Contact Rating: 100mA, 30VDC
- Operating Temperature: -40°C to +85°C
- Operating Force: 250gf
- Travel: 1.5mm full; 1.0mm latching
LP4 Series Markets
Product Specifications
LP4OA1PBCTG
PUSHBUTTON, 100mA, 30VDC, DPDT, On-(On), Through Hole, Illuminated
- Series Name LP4
- PackagingBulk
- Current Rating100mA
- Voltage Rating30VDC
- CircuitDPDT
- FunctionOn-(On)
- Mounting TypeThrough Hole
- Termination TypePC Pin
- Actuator TypeRound, Button
- Illumination StyleFull
- Illumination ColorLED, Green
- Operating Temperature-20°C to 70°C
Support for LP4OA1PBCTG
Not the product you are looking for? Configure your product
