Read MoreKAE Series Low Profile DIP Switch

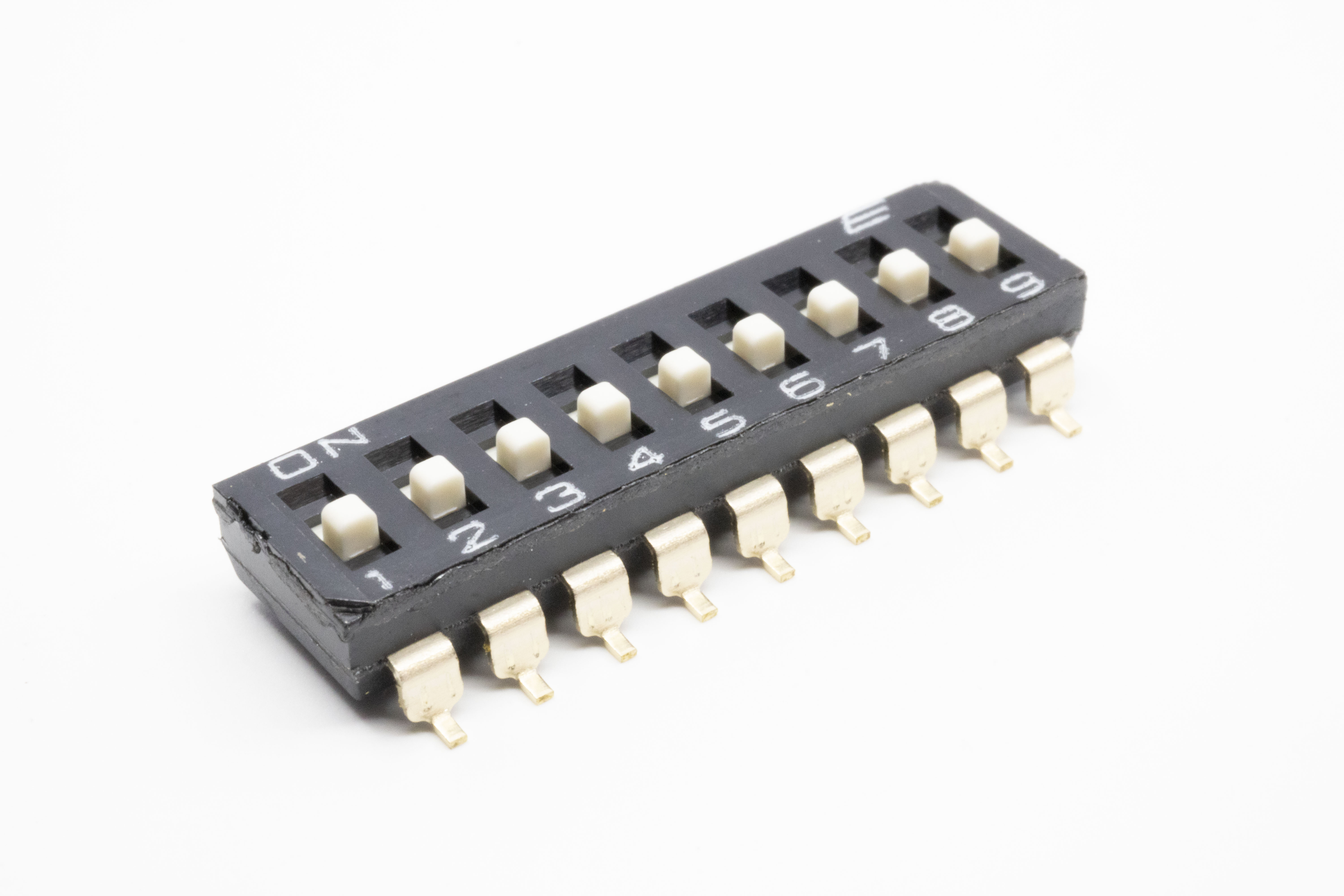

KAE Series Low Profile DIP Switch
Stock Check for KAE09LGGT
Not the product you are looking for? Configure your product
DIP, 25mA, 24VDC, SPST - 9 Positions, Surface Mount
About KAE Series
- Electrical rating: Switch: 25mA @ 24VDC; Carry: 100mA @ 50VDC
- Through hole or surface mount (SMT) design
- 1 to 12 positions; SPST each position
- Splayed PC Pin, straight PC Pin, or gull wing termination
- Slide actuator; extended or recessed; top tape seal option
- 0.100″ (2.54mm) Full pitch
- Gold contact material
- -20°C to 85°C operating temperature
- Tube or tape & reel packaging
Product Specifications
KAE09LGGT
DIP, 25mA, 24VDC, SPST - 9 Positions, Surface Mount
- Series Name KAE
- PackagingTube
- Current Rating25mA
- Voltage Rating24VDC
- CircuitSPST - 9 Positions
- Mounting TypeSurface Mount
- Termination TypeGull Wing
- Contact MaterialGold
- Actuator TypeSlide (Standard)
- Actuator Height4.45mm
- Ingress ProtectionWithout Top Tape Seal
- Operating Temperature-20°C to 85°C
- Pitch0.100" (2.54mm), Full
