Low Profile Switches Available from E-Switch
March 12, 2010 | N/A min read
E-Switch's low profile switches allow you to save space on your application.
Read MoreKAE Series Low Profile DIP Switch
KAE Series Low Profile DIP Switch
Stock Check for KAE02LGGR
Not the product you are looking for? Configure your product
DIP, 25mA, 24VDC, SPST, Surface Mount
About KAE Series
- Electrical rating:Â Switch:Â 25mA @ 24VDC;Â Carry:Â 100mA @ 50VDC
- Through hole or surface mount (SMT) design
- 1 to 12 positions; SPST each position
- Splayed, straight, or gull wing termination options
- Extended or recessed actuator; top tape seal option
- 0.100″ (2.54mm) Full pitch
- Low profile
- 1.0mm nominal travel
- 2,000 cycle life
- Gold contact material
- -20°C to 85°C operating temperature
- Tube or tape and reel packaging
KAE Series Markets
Product Specifications

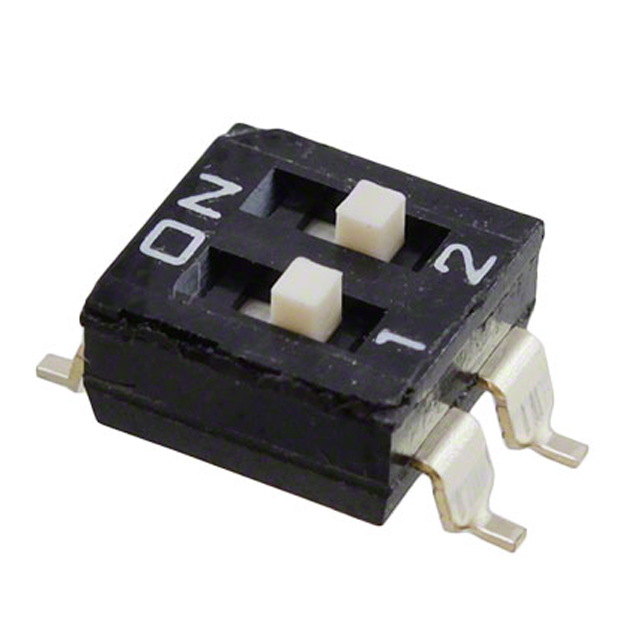

KAE02LGGR
DIP, 25mA, 24VDC, SPST, Surface Mount
- Series Name KAE
- PackagingTape & Reel
- Current Rating25mA
- Voltage Rating24VDC
- CircuitSPST
- Mounting TypeSurface Mount
- Termination TypeGull Wing
- Contact MaterialGold
- Actuator TypeSlide (Standard)
- Actuator Height4.45mm
- Operating Temperature-20°C to 85°C
- Nbr of Positions2
- Pitch0.100" (2.54mm), Full
