Read MoreEGL2290 Series Illuminated, SMT Slide Switch

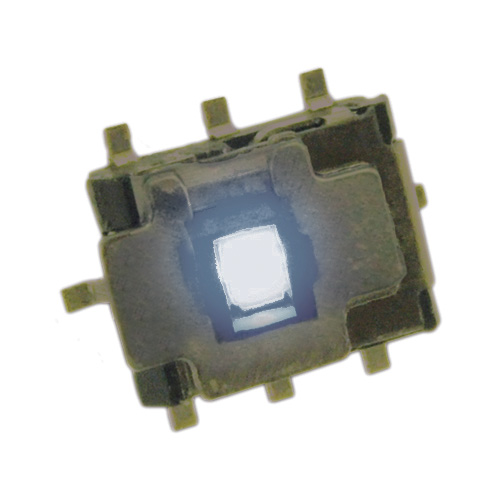

EGL2290 Series Illuminated, SMT Slide Switch
Stock Check for EGL2290W
Not the product you are looking for? Configure your product
SLIDE, 300mA, 6VDC, DPDT, On-On, Surface Mount, Illuminated
About EGL2290 Series
- 0.3A @ 6VDC
- Surface mount (SMT) design
- LED illumination; many color options
- DPDT circuit; 2 position actuator
- Compact 7.65mm x 5.5mm package design
- 200gf operating force
- 10,000 cycle life
- -40°C to 85°C operating temperature
EGL2290 Series Markets
Product Specifications
EGL2290W
SLIDE, 300mA, 6VDC, DPDT, On-On, Surface Mount, Illuminated
- Series Name EGL2290
- PackagingTape & Reel
- Current Rating300mA
- Voltage Rating6VDC
- CircuitDPDT
- FunctionOn-On
- Mounting TypeSurface Mount
- Termination TypeGull Wing
- Actuator TypeIlluminated
- Actuator Height1.00mm
- Illumination StyleIlluminated
- Illumination ColorLED, White
- Illumination Voltage3.3VDC
- Operating Temperature-40°C to 85°C
Support for EGL2290W
Not the product you are looking for? Configure your product
Related Posts
What is a Capacitive Touch Switch and How Do They Work?
January 22, 2024 | N/A min read
Capacitance is the ability of a system to store an electric charge, but what does that mean when applied to...
Read More

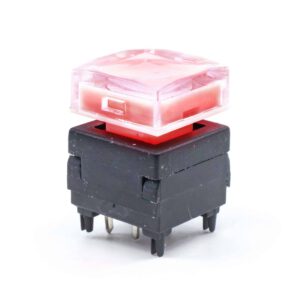

E-Switch is Your Illuminated Pushbutton Switch Supplier
