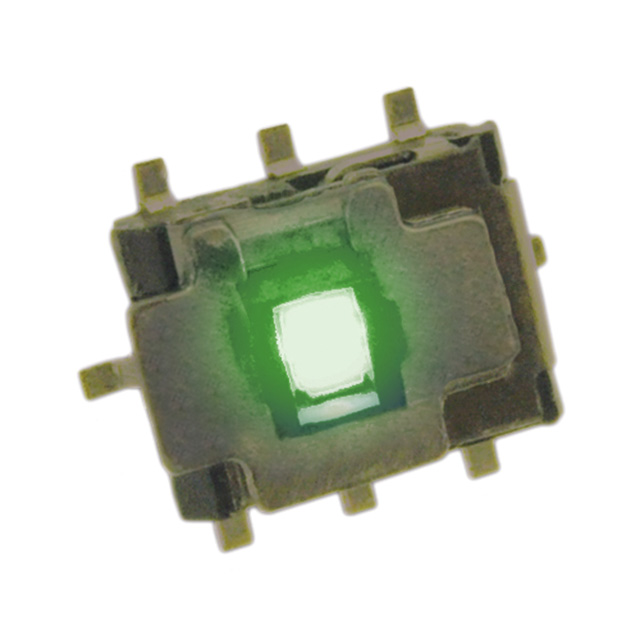

EGL2290 Series Illuminated, SMT Slide Switch
Stock Check for EGL2290G
Not the product you are looking for? Configure your product
SLIDE, 300mA, 6VDC, DPDT, On-On, Surface Mount, Illuminated
About EGL2290 Series
- 0.3A @ 6VDC
- Surface mount (SMT) design
- LED illumination; many color options
- DPDT circuit; 2 position actuator
- Compact 7.65mm x 5.5mm package design
- 200gf operating force
- 10,000 cycle life
- -40°C to 85°C operating temperature
EGL2290 Series Markets
Product Specifications
EGL2290G
SLIDE, 300mA, 6VDC, DPDT, On-On, Surface Mount, Illuminated
- Series Name EGL2290
- PackagingTape & Reel
- Current Rating300mA
- Voltage Rating6VDC
- CircuitDPDT
- FunctionOn-On
- Mounting TypeSurface Mount
- Termination TypeGull Wing
- Actuator TypeIlluminated
- Actuator Height1.00mm
- Illumination StyleIlluminated
- Illumination ColorLED, Green
- Illumination Voltage2.1VDC
- Operating Temperature-40°C to 85°C
