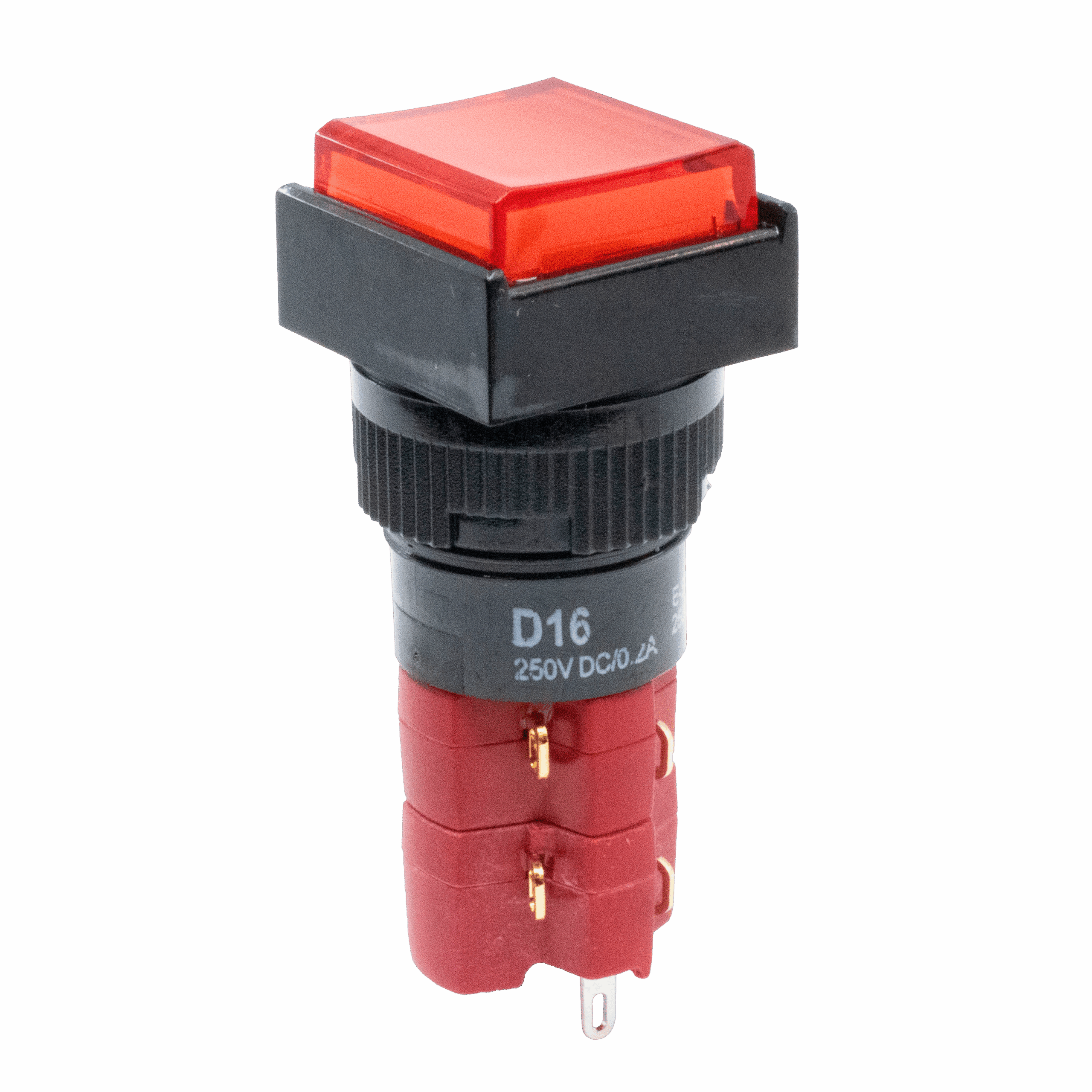

D16 Series Illuminated Pushbutton Switch

D16 Series Illuminated Pushbutton Switch Wire Leads & Connectors Available

D16 Series: D16EES11

Categories: PUSHBUTTON

  • document Series Data Sheet
  • document Spec Sheet (2D)

RoHS Compliant REACH Compliant UL Certified

D16 Series Illuminated Pushbutton Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

D16EES11

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for D16EES11

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the D16EES11 from our authorized distributors.

In-Stock Distributors

PUSHBUTTON, 8A (AC)/6A (DC), 125VAC/24VDC, SPDT, On-On, Panel Mount, Front

Powered by oemsecrets

About D16 Series

  • Modular interface/contact block design
  • Robust product for industrial applications
  • Attractive front panel design
  • Illuminated options (LED, neon, incandescent)
  • UL 508 recognized
  • Contact Rating
    • 5A @ 250VAC – UL
    • 8A @ 125VAC – UL, CSA
    • 6A @ 24VDC – UL, CSA
  • Circular, rectangular and square panel mount designs
  • SPDT, DPDT, 3PDT or 4PDT; maintained (latching) or momentary pushbuttons
  • Exclusive solder lug design
  • Mechanical Life: 100,000 cycles
  • Electrical Life: 50,000 cycles
  • P16 Series available with socket connection; L16 Series has pilot indicators

D16 Series Markets

Tour Bus

Product Specifications

D16EES11

PUSHBUTTON, 8A (AC)/6A (DC), 125VAC/24VDC, SPDT, On-On, Panel Mount, Front

  • Series Name D16
  • PackagingBulk
  • Current Rating8A (AC)/6A (DC)
  • Voltage Rating125VAC/24VDC
  • CircuitSPDT
  • FunctionOn-On
  • Mounting TypePanel Mount, Front
  • Termination TypeSolder
  • Actuator TypeSquare, Button (Not Included)
  • Panel Cutout DimensionsCircular - 16mm Dia.
  • Operating Temperature-20°C to 55°C
