P16 Series Illuminated Pushbutton Switch

P16 Series Illuminated Pushbutton Switch

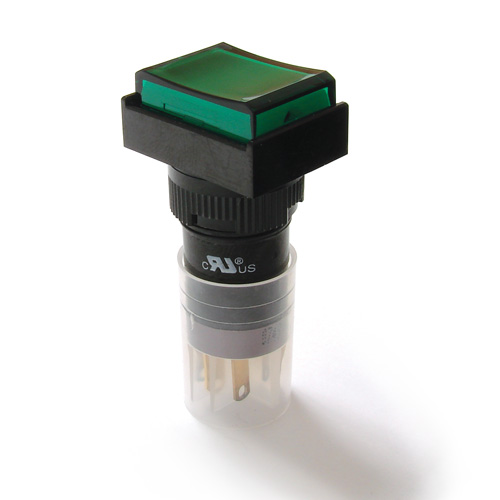

The P16 Series illuminated pushbutton switch comes with SPDT, DPDT, 3PDT, or 4PDT circuits and an exclusive socket terminal. Maintained (latching) or momentary pushbuttons are available in round, square, or rectangular shapes meant to for a panel mount cutout sized 16mm in diameter. The P16 Series illuminated pushbutton switches have a mechanical life expectancy of 100,000 cycles and a mechanical life expectancy of 50,000 cycles. Neon, incandescent, and LED lamps are available in multiple colors. Multiple lens colors are also available. Applications for these illuminated pushbutton switches include:

  • Lower power on/off designs
  • Telecommunications
  • Networking
  • Computers/servers
  • Performance audio
  • External hard drives and modems
  • Instrumentation


  • cURus and VDE power rated for direct and alternating currents
  • Circular, rectangular, and square panel mount designs
  • SPDT, DPDT, 3PDT, 4PDT circuits; maintained (latching) or momentary pushbuttons
  • Exclusive socket terminal design



Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

P16 Wire

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

Detail Specifications

ELECTRICAL RATING: 5A @ 250VAC [UL]; 8A @ 125VAC [UL, CSA]; 6A @ 24VDC [UL, CSA] MECHANICAL LIFE: 100,000 Cycles ELECTRICAL LIFE: 50,000 Cycles CONTACT RESISTANCE: 100mΩ Max. Typical; Initial at 2-4VDC INSULATION RESISTANCE: >1,000MΩ DIELECTRIC STRENGTH: >1,500V for 1 Minute; >3,000V Between Poles OPERATING FORCE: 300g/pole OPERATING/STORAGE TEMPERATURE: -20°C to 55°C / MATERIALS / SWITCH HOUSING: Polyetherimide (PEI) CONTACT HOUSING: Diallyl Phthalate (DAP) LENS: Polycarbonate (PC) CONTACTS: Silver Plated Copper Alloy TERMINALS: Silver Plated Copper Alloy
