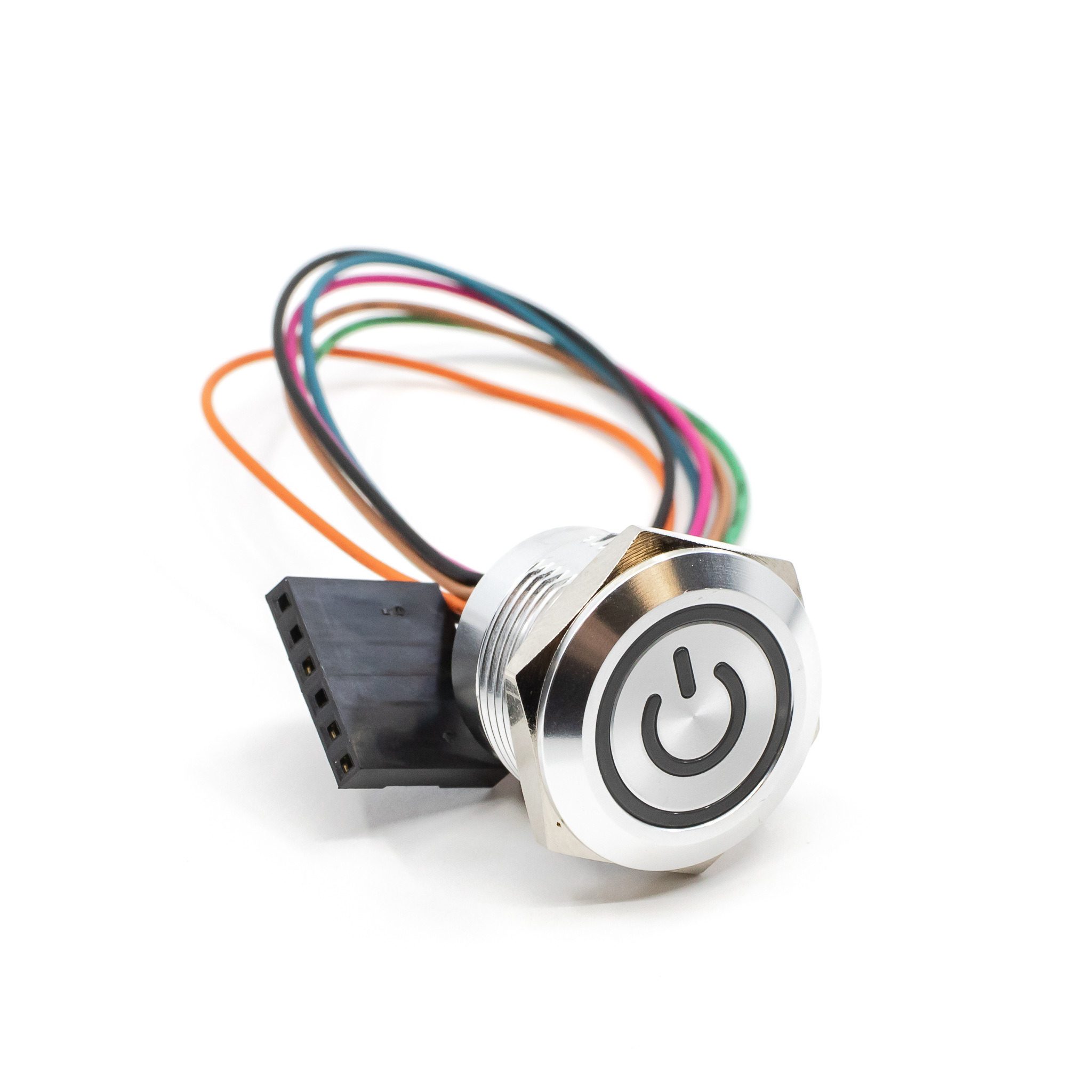

CS Series Illuminated, Touch Sensor Anti-Vandal Switch

CS Series Illuminated, Touch Sensor Anti-Vandal Switch Wire Leads & Connectors Available

CS Series: CS4M2FP

Categories: ANTI-VANDAL

RoHS Compliant REACH Compliant

CS Series Illuminated, Touch Sensor Anti-Vandal Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

CS4M2FP

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for CS4M2FP

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the CS4M2FP from our authorized distributors.

In-Stock Distributors

ANTI-VANDAL, 1A, 24VDC, SPST, Off-(On), Panel Mount, Front, Illuminated

Powered by oemsecrets

About CS Series

  • 19mm or 22mm panel cutout
  • 1A, 24VDC;  IP68 rated
  • Capacitive switching technology (touch sensor)
  • (6) wires 150mm long, with connector
  • SPST circuit; latching or momentary function
  • Ring or ring/power symbol illumination options
  • Aluminum, clear anodized finish
  • 50 million cycles electrical life
  • -40°C to 85°C operating temperature

Anti-Vandal Switches: E-Switch CS Series [New]

CS Series Markets

Medical

Product Specifications

CS4M2FP

ANTI-VANDAL, 1A, 24VDC, SPST, Off-(On), Panel Mount, Front, Illuminated

  • Series Name CS
  • PackagingBulk
  • Current Rating1A
  • Voltage Rating24VDC
  • CircuitSPST
  • FunctionOff-(On)
  • Mounting TypePanel Mount, Front
  • Termination TypeWire Leads with Connector
  • Actuator TypeRound, Button, Flush
  • Actuator ColorSilver
  • Illumination StyleRing/Power Symbol
  • Illumination ColorLED, RGB
  • Ingress ProtectionIP68
  • Panel Cutout DimensionsCircular - 19mm Dia.
  • Operating Temperature-40°C to 85°C
