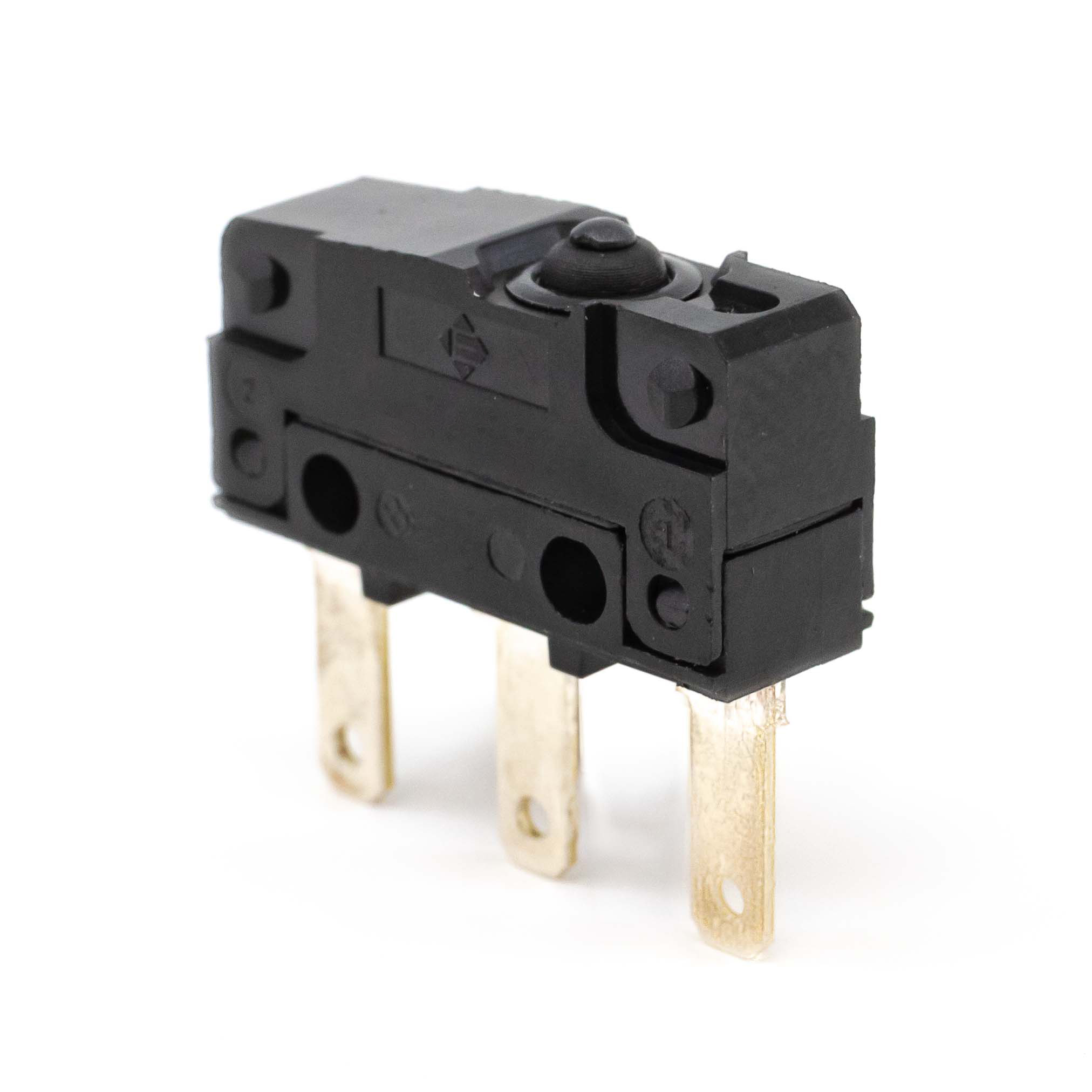

WS2 Series Sealed Snap Action Switch

WS2 Series Sealed Snap Action Switch Wire Leads & Connectors Available

WS2 Series: WS20850100F183C1A

Categories: SNAP ACTION

RoHS Compliant REACH Compliant UL Certified

WS2 Series Sealed Snap Action Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

WS20850100F183C1A

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for WS20850100F183C1A

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the WS20850100F183C1A from our authorized distributors.

In-Stock Distributors

SNAP ACTION, 2A, 250VAC/30VDC, SPDT, On-On, Panel Mount

Powered by oemsecrets

About WS2 Series

  • IP67
  • Electrical ratings:
    • 2A 30VDC or 250VAC; UL, cUL
  • SPDT circuit; latching function
  • Panel mount or through hole mounting design
  • Solder lug, quick connect, or PCB pin termination options
  • Pin plunger actuator
  • 183gf max. operating force
  • 500,000 cycles min. mechanical life
  • -25 to 85°C operating temperature
  • Silver contact material

E-Switch E-Bits: WS2 Snap Action Switch

WS2 Series Markets

Home Maintenance

Product Specifications

WS20850100F183C1A

SNAP ACTION, 2A, 250VAC/30VDC, SPDT, On-On, Panel Mount

  • Series Name WS2
  • PackagingBulk
  • Current Rating2A
  • Voltage Rating250VAC/30VDC
  • CircuitSPDT
  • FunctionOn-On
  • Mounting TypePanel Mount
  • Termination TypeQuick Connect - 0.110"
  • Contact MaterialSilver
  • Actuator TypeRound (Pin Plunger)
  • Ingress ProtectionIP67
  • Operating Force183gf
  • Operating Temperature-25°C to 85°C
