Read MoreULV4 Series UL Certified, Illuminated Anti-Vandal Switch

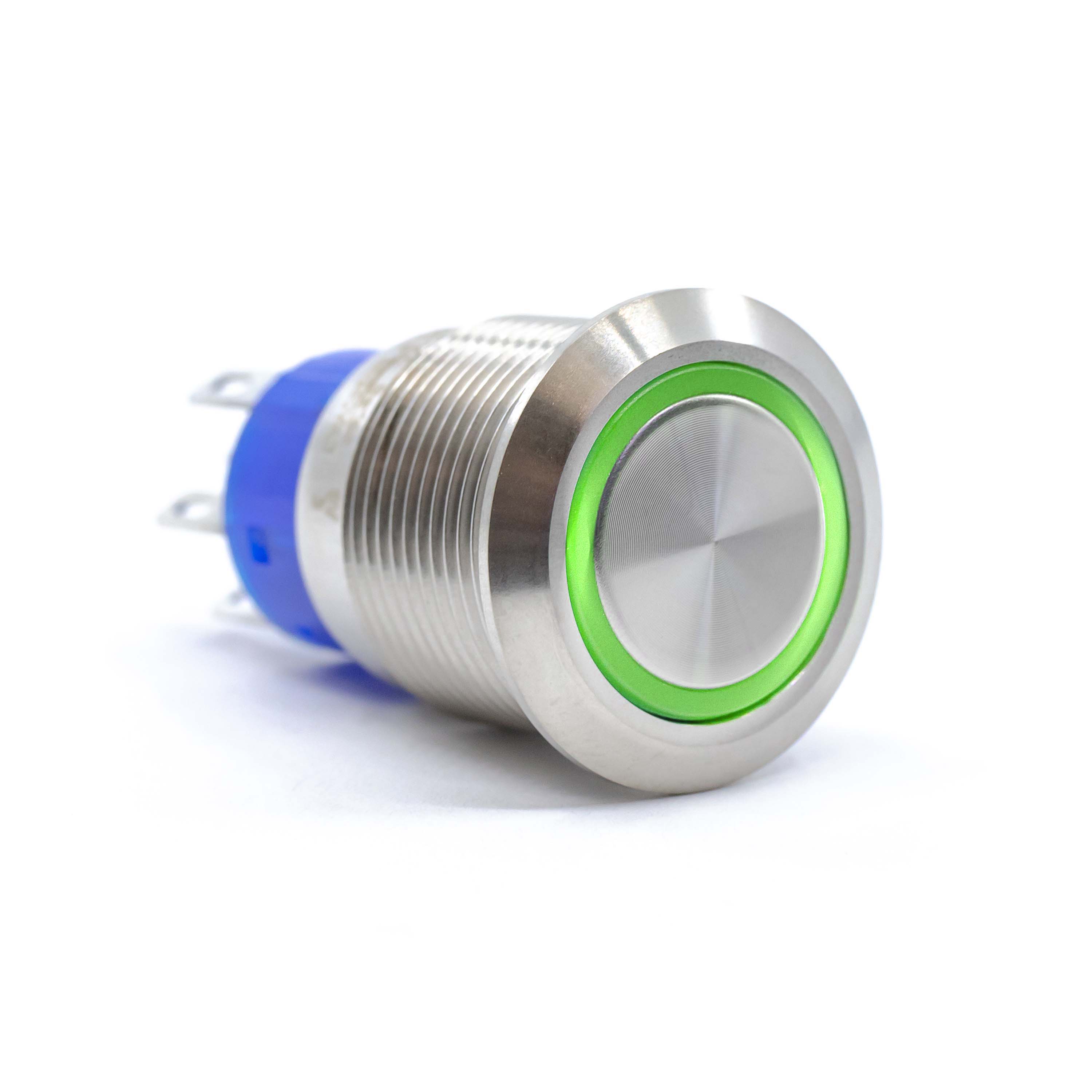

ULV4 Series UL Certified, Illuminated Anti-Vandal Switch
Stock Check for ULV4F23SS331
Not the product you are looking for? Configure your product
ANTI-VANDAL, 3A, 125/250VAC, SPDT, On-On, Panel Mount, Front, Illuminated
About ULV4 Series
- 19mm diameter panel cutout
- 3A, 125/250VAC, UL;Â IP67 rated
- SPDT or DPDT circuit; latching or momentary
- Solder, wire leads, detachable socket, or molded back
- Flat, high, or domed actuator
- Stainless steel, black anodized, or nickel finish
- Illuminated dot, ring, power symbol, custom graphic, or non-ilum.
- Many LED color and voltage options including bi-color
- 43 different illuminated custom graphics options
- Silver or gold contact material
- -20°C to 55°C operating temperature
Product Specifications
ULV4F23SS331
ANTI-VANDAL, 3A, 125/250VAC, SPDT, On-On, Panel Mount, Front, Illuminated
- Series Name ULV4
- PackagingBulk
- Current Rating3A
- Voltage Rating125/250VAC
- CircuitSPDT
- FunctionOn-On
- Mounting TypePanel Mount, Front
- Termination TypeSolder
- Contact MaterialSilver
- Actuator TypeRound, Button, Flush
- Actuator ColorSilver
- Illumination StyleRing
- Illumination ColorLED, Green
- Illumination Voltage3VDC
- Ingress ProtectionIP67
- Panel Cutout DimensionsCircular - 19mm Dia.
- Operating Temperature-20°C to 55°C
Support for ULV4F23SS331
Not the product you are looking for? Configure your product
