Read MoreTL6150 Series Sealed, Long Life, SMT Tactile Switch

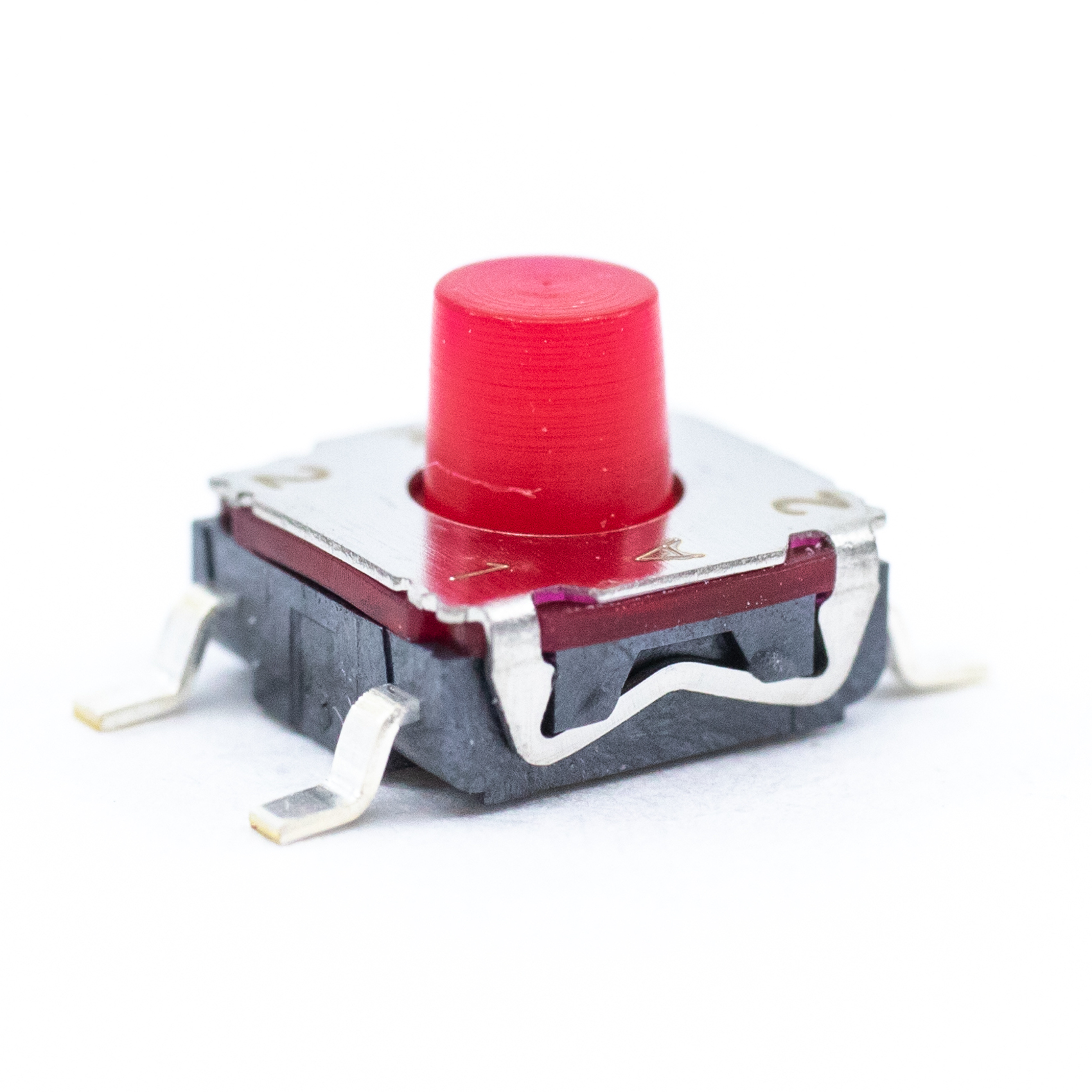

TL6150 Series Sealed, Long Life, SMT Tactile Switch
Stock Check for TL6150BF160QJ
Not the product you are looking for? Configure your product
TACT, 50mA, 32VDC, SPST-NO, Off-(On), Surface Mount
About TL6150 Series
- IP67
- Surface mount (SMT) design
- 6.2mm x 6.2mm
- Up to 5,000,000 cycle life
- 160gf, 200gf, 350gf operating force
- Multiple actuator height options
- Gull wing or J lead termination
- Silver contact material
- -40°C to 85°C operating temperature
- 50mA @ 32VDC
- Tape and reel packaged
TL6150 Series Markets
Product Specifications
TL6150BF160QJ
TACT, 50mA, 32VDC, SPST-NO, Off-(On), Surface Mount
- Series Name TL6150
- PackagingTape & Reel
- Current Rating50mA
- Voltage Rating32VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeSurface Mount
- Termination TypeJ-lead
- Contact MaterialSilver
- Actuator TypeStandard
- Actuator Height5.20mm
- Illumination Style-
- Illumination Color-
- Ingress ProtectionIP67
- Operating Force160gf
- Operating Temperature-40°C to 85°C
Support for TL6150BF160QJ
Not the product you are looking for? Configure your product
