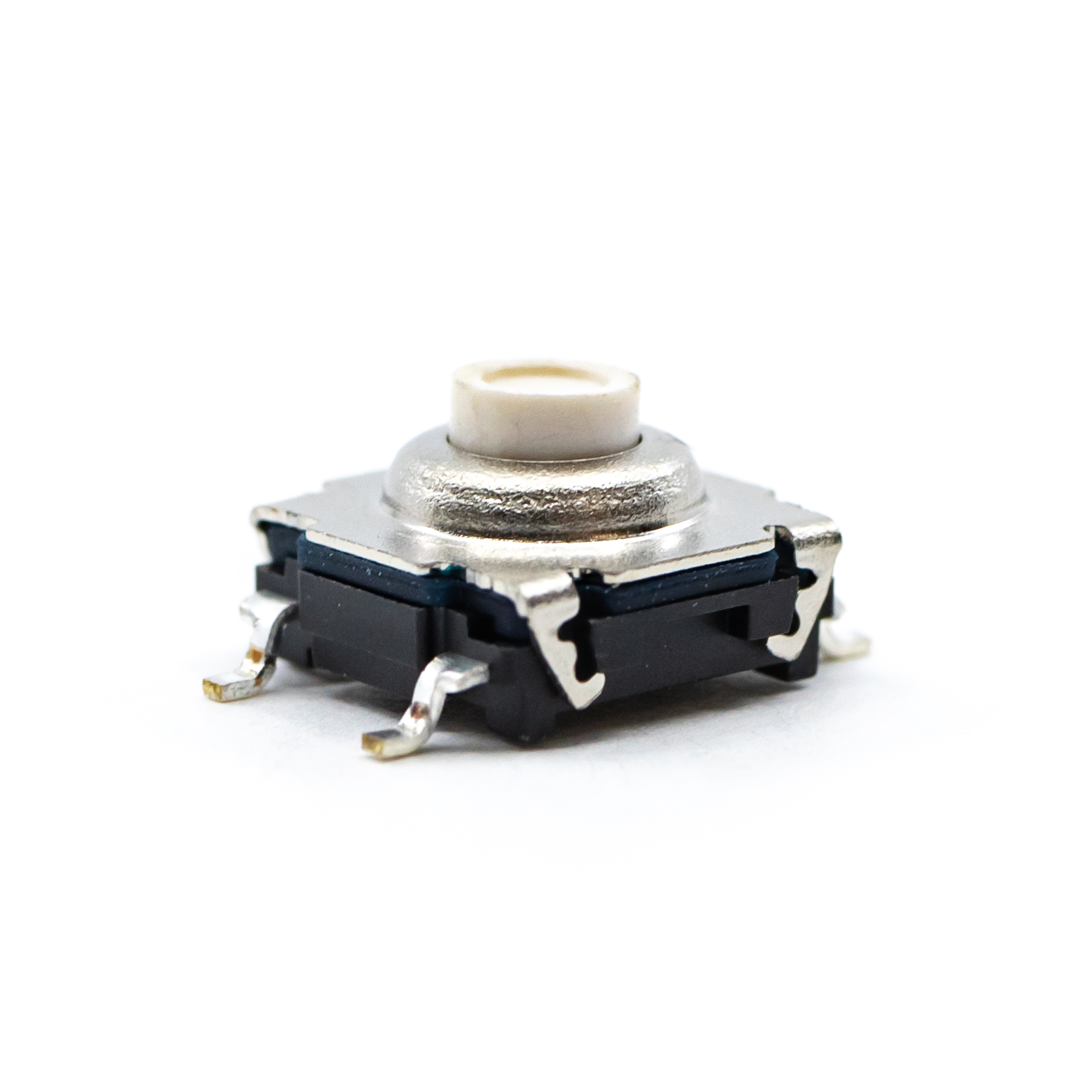

TL6120 Series Sealed, SMT Tactile Switch
Stock Check for TL6120AF500QG
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount
About TL6120 Series
- IP67
- Surface mount (SMT) design
- 7.4mm x 7.4mm
- 130gf, 160gf, 300gf, or 500gf operating force
- Many actuator height options
- Up to 1,000,000 cycle life
- Silver or gold contact material
- -40°C to 85°C operating temperature
- 50mA @ 12VDC
TL6120 Series Markets
Product Specifications
TL6120AF500QG
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount
- Series Name TL6120
- PackagingTape & Reel
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeSurface Mount
- Termination TypeGull Wing
- Contact MaterialSilver
- Actuator TypeStandard
- Actuator Height4.70mm
- Illumination Style-
- Illumination Color-
- Operating Force500gf
- Operating Temperature-40°C to 85°C
