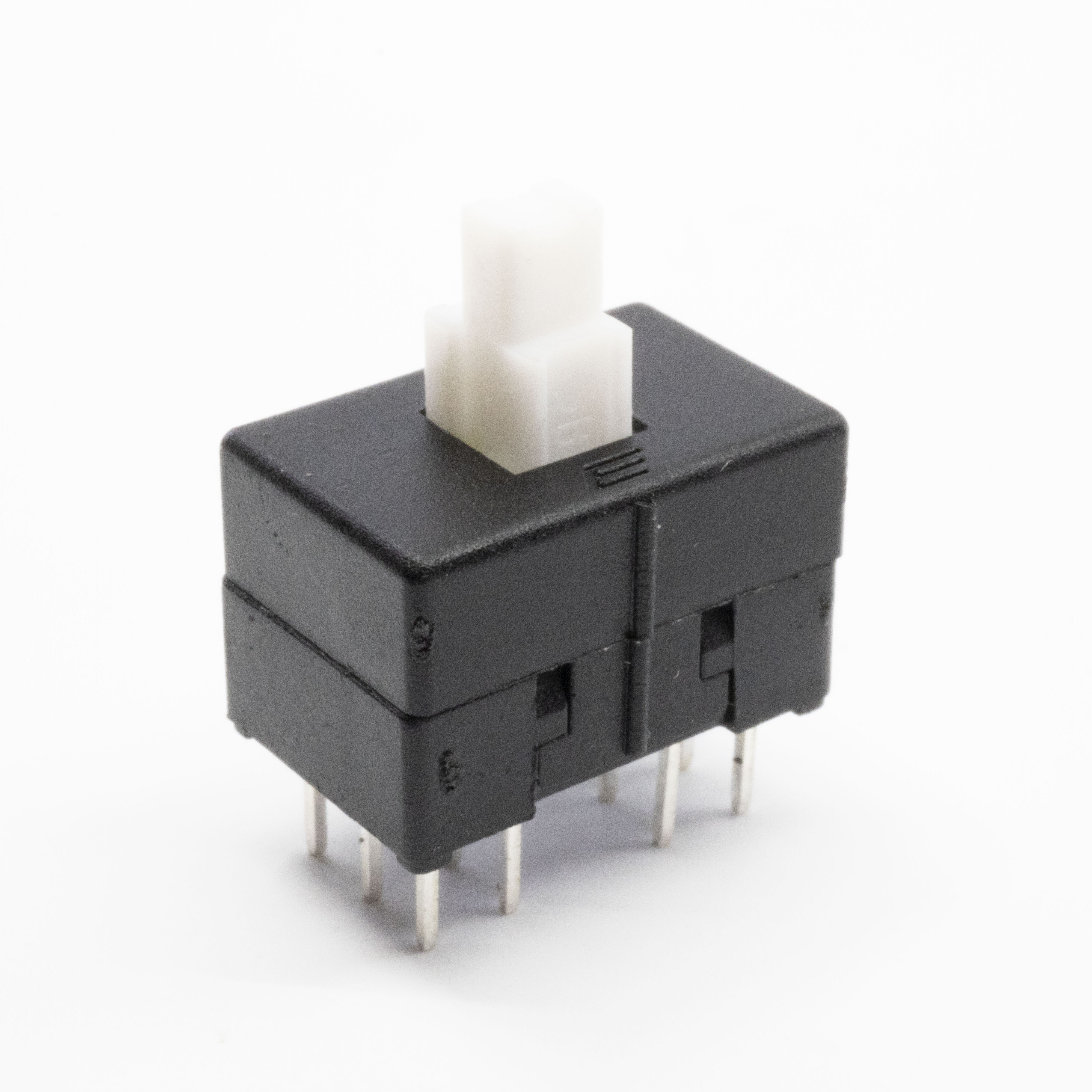

TL4201 Series Subminiature Pushbutton Switch
Stock Check for TL4201OAXA
Not the product you are looking for? Configure your product
PUSHBUTTON, 100mA, 30VDC, 4PDT, On-On, Through Hole
About TL4201 Series
- 4PDT
- Long travel (2.5mm), with actuator and cap options
- Electrical Rating: 100mA @ 30VDC
- PC board mounting design
- Momentary or maintained (latching) functions
- Operating Temperature: -20°C to +70°C
- Life Expectancy: 10,000 cycles
- For DPDT version of this switch, see TL2201 Series Subminiature Pushbutton Switch
TL4201 Series Markets
Product Specifications
TL4201OAXA
PUSHBUTTON, 100mA, 30VDC, 4PDT, On-On, Through Hole
- Series Name TL4201
- PackagingBulk
- Current Rating100mA
- Voltage Rating30VDC
- Circuit4PDT
- FunctionOn-On
- Mounting TypeThrough Hole
- Termination TypePC Pin
- Actuator TypePlunger for Cap
- Illumination StyleNon-illuminated
- Illumination ColorNon-illuminated
- Operating Temperature-30°C to 85°C
