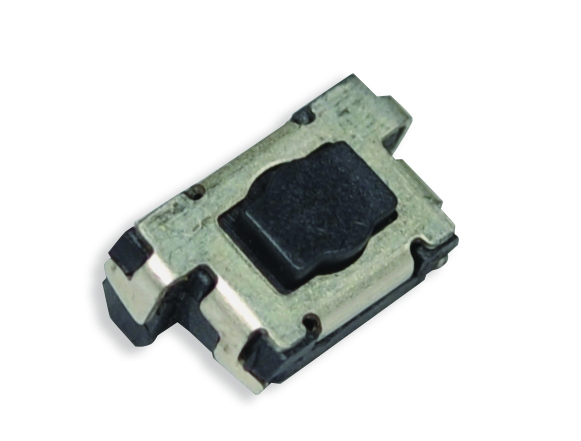

TL4100 Series Miniature, SMT Edge Mount Right Angle Tactile Switch
Stock Check for TL4100AF120QG
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Right Angle, Edge Mount
About TL4100 Series
- Edge mount right angle (SMT) design
- 6.2mm x 2.5mm
- 2.0mm actuator height
- 120gf, 160gf, or 240gf operating force
- Gullwing and L-shape terminals option
- Up to 1,000,000 cycle life
- 0.15mm travel
- Silver contact material
- -40°C to 85°C operating temperature
- 50mA @ 12VDC
- Tape and reel packaged
TL4100 Series Markets
Product Specifications
TL4100AF120QG
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Right Angle, Edge Mount
- Series Name TL4100
- PackagingTape & Reel
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeSurface Mount, Right Angle, Edge Mount
- Termination TypeGull Wing
- Contact MaterialSilver
- Actuator TypeRectangular, Button
- Actuator Height2.00mm
- Illumination StyleNon-illuminated
- Illumination ColorNon-illuminated
- Operating Force120gf
- Operating Temperature-40°C to 85°C
