Read MoreTL3340 Series Subminiature, SMT Right Angle Tactile Switch
TL3340 Series Subminiature, SMT Right Angle Tactile Switch
Stock Check for TL3340AF160QG
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Right Angle
About TL3340 Series
- Surface mount, right angle (SMT) design
- 4.25mm x 3.3mm
- 3.4mm or 5.9mm actuator height. 3.4mm available in shock resistant silicon
- 130gf, 160gf, or 260gf operating force
- Gull wing termination
- 100,000 cycle life. 300,000 for silicon actuator
- Silver contact material
- -35°C to 85°C operating temperature
- 50mA @ 12VDC
- Tape and reel packaged
TL3340 Series Markets
Product Specifications

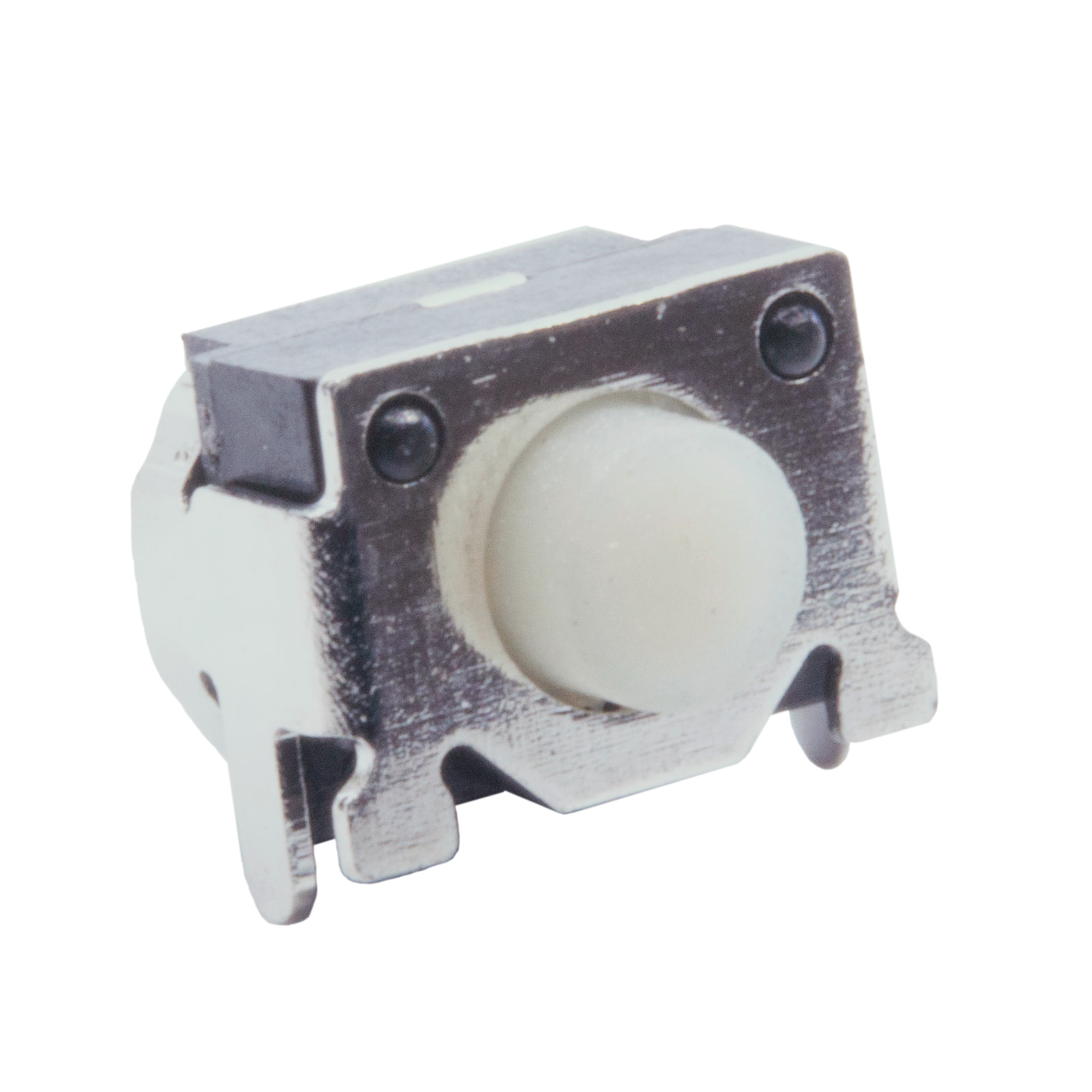

TL3340AF160QG
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Right Angle
- Series Name TL3340
- PackagingTape & Reel
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeSurface Mount, Right Angle
- Termination TypeGull Wing
- Contact MaterialSilver
- Actuator TypeStandard
- Actuator Height3.40mm
- Operating Force160gf
- Operating Temperature-35°C to 85°C
