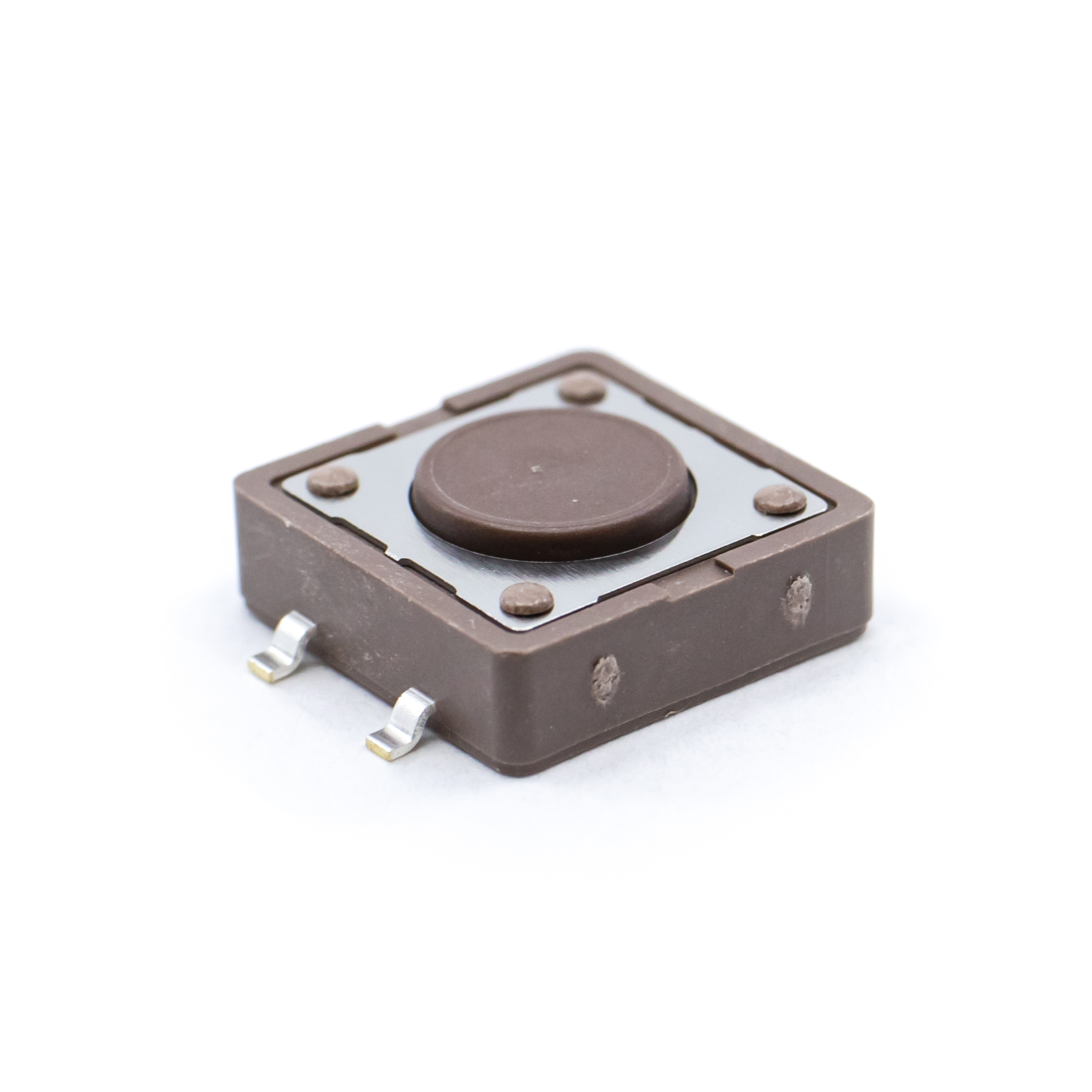

TL3300 Series Long Life, SMT Tactile Switch
Stock Check for TL3300DF160Q
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount
About TL3300 Series
- Surface mount (SMT) design
- 12mm x 12mm
- 130gf, 160gf, 260gf, 320gf, or 520gf operating force
- Multiple actuator height options
- Long life up to 10,000,000 cycles
- Silver contact material
- -25 to 70°C operating temperature
- 50mA @ 12VDC
TL3300 Series Markets
Product Specifications
TL3300DF160Q
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount
- Series Name TL3300
- PackagingTape & Reel
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeSurface Mount
- Termination TypeGull Wing
- Contact MaterialSilver
- Actuator TypeStandard
- Actuator Height4.30mm
- Operating Force160gf
- Operating Temperature-25°C to 70°C
