Read MoreTL3220 Series Ultraminiature, Illuminated, SMT Tactile Switch

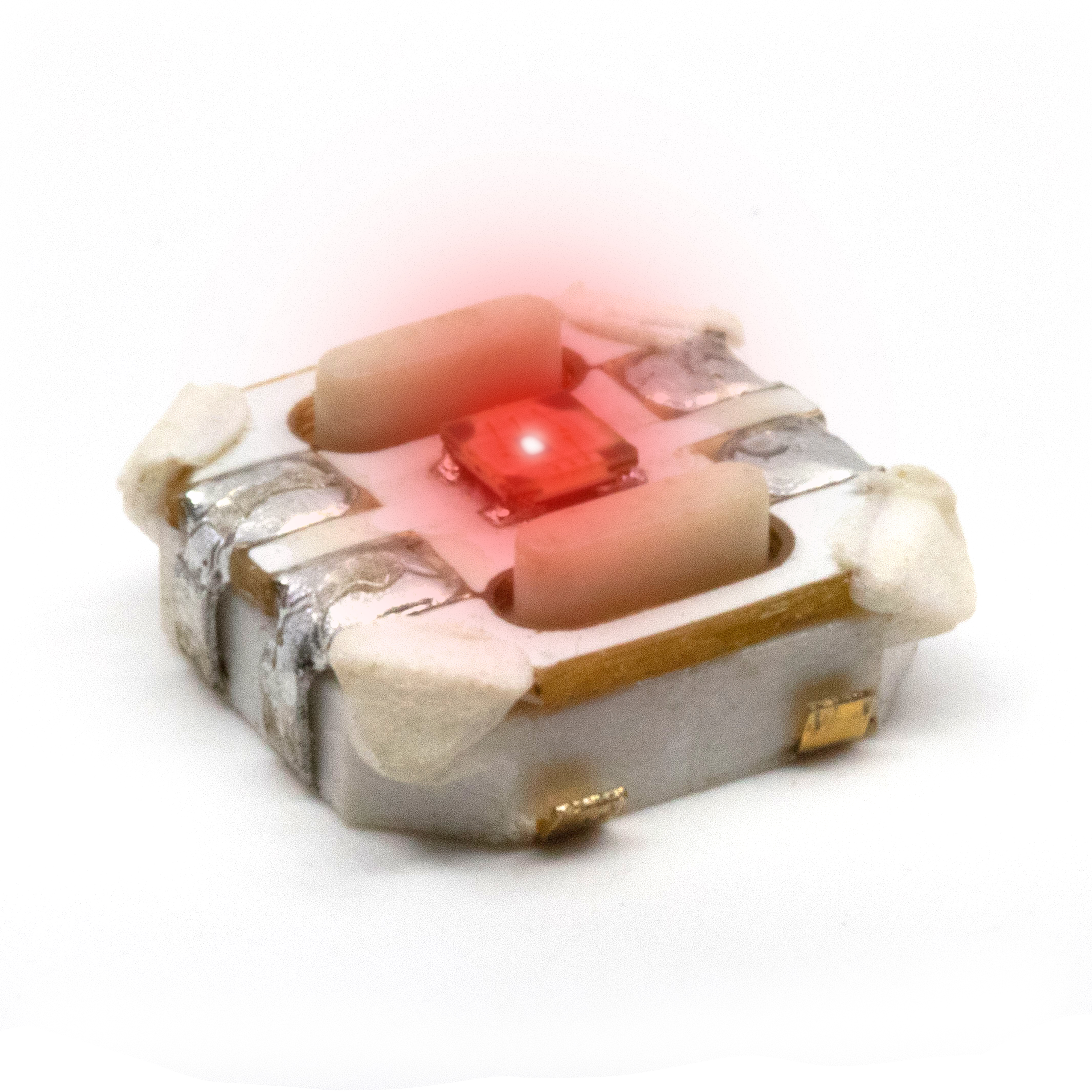

TL3220 Series Ultraminiature, Illuminated, SMT Tactile Switch
Stock Check for TL3220AF160RGBR
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Illuminated
About TL3220 Series
- Surface mount (SMT) design
- 4.90mm x 4.90mm outline
- Gull wing termination
- LED, RGB illuminated
- 160gf operating force
- 100,000 cycle life
- Gold contact material
- -40°C to 85°C operating temperature
- 50mA @ 12VDC
TL3220 Series Markets
Product Specifications
TL3220AF160RGBR
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Illuminated
- Series Name TL3220
- PackagingTape & Reel
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeSurface Mount
- Termination TypeGull Wing
- Contact MaterialGold
- Actuator TypeStandard
- Actuator Height2.00mm
- Illumination StyleIlluminated
- Illumination ColorLED, RGB
- Illumination Voltage1.8, 2.8, 2.8VDC
- Operating Force160gf
- Operating Temperature-40°C to 85°C
Support for TL3220AF160RGBR
Not the product you are looking for? Configure your product
