TL2205 Series Illuminated Pushbutton Switch
Stock Check for TL2205OABPBB
Not the product you are looking for? Configure your product
PUSHBUTTON, 100mA, 30VDC, DPDT, On-(On), Through Hole, Illuminated
About TL2205 Series
- Multiple LED illumination colors (blue, red, green, yellow or none)
- Optional black cap with LED window
- Electrical Rating: 100mA, 30VDC
- Through-hole mounting design
- Full travel of 2.5mm; maintained version latches at 1.5mm
- Operating Force: 250 grams
- DPDT; maintained (latching) or momentary pushbuttons
- Mechanical Life: 10,000 cycles
- Operating/Storage Temperature: -20°C to +70°C
TL2205 Series Markets
Product Specifications

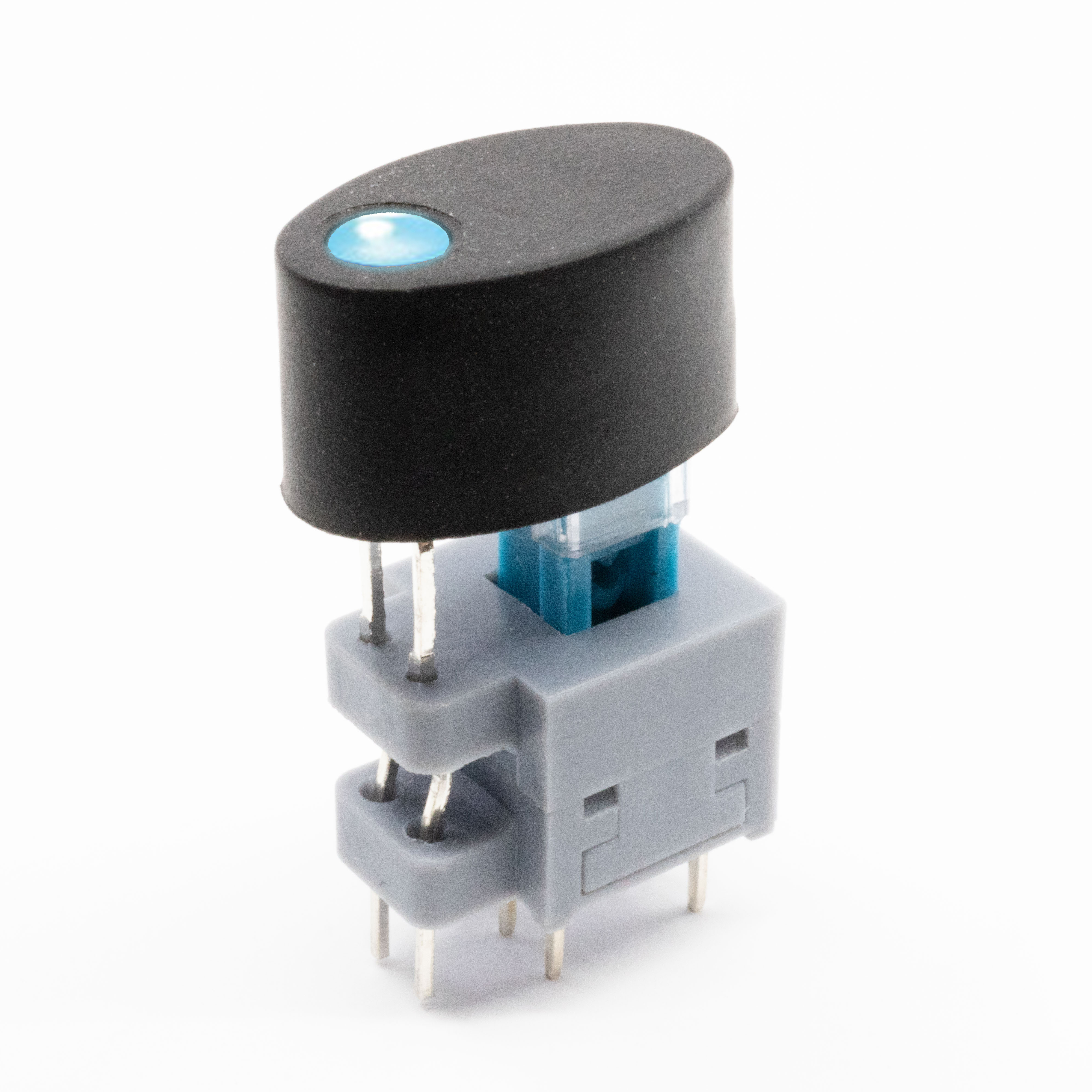

TL2205OABPBB
PUSHBUTTON, 100mA, 30VDC, DPDT, On-(On), Through Hole, Illuminated
- Series Name TL2205
- PackagingBulk
- Current Rating100mA
- Voltage Rating30VDC
- CircuitDPDT
- FunctionOn-(On)
- Mounting TypeThrough Hole
- Termination TypePC Pin
- Actuator TypeOval, Button
- Illumination StyleDot
- Illumination ColorLED, Blue
- Illumination Voltage3.5VDC
- Operating Temperature-20°C to 70°C
