TL2203 Series Subminiature Pushbutton Switch
Stock Check for TL2203EE
Not the product you are looking for? Configure your product
PUSHBUTTON, 100mA, 30VDC, SPST, Off-On, Through Hole, Illuminated
About TL2203 Series
- Electrical Rating: 100mA @ 30VDC
- PC board mounting design
- Long travel (1.9mm)
- Operating Force: 180 grams
- SPST; latching function
- Operating Temperature: -20°C to 70°C
- Life Expectancy: 10,000 cycles
TL2203 Series Markets
Product Specifications

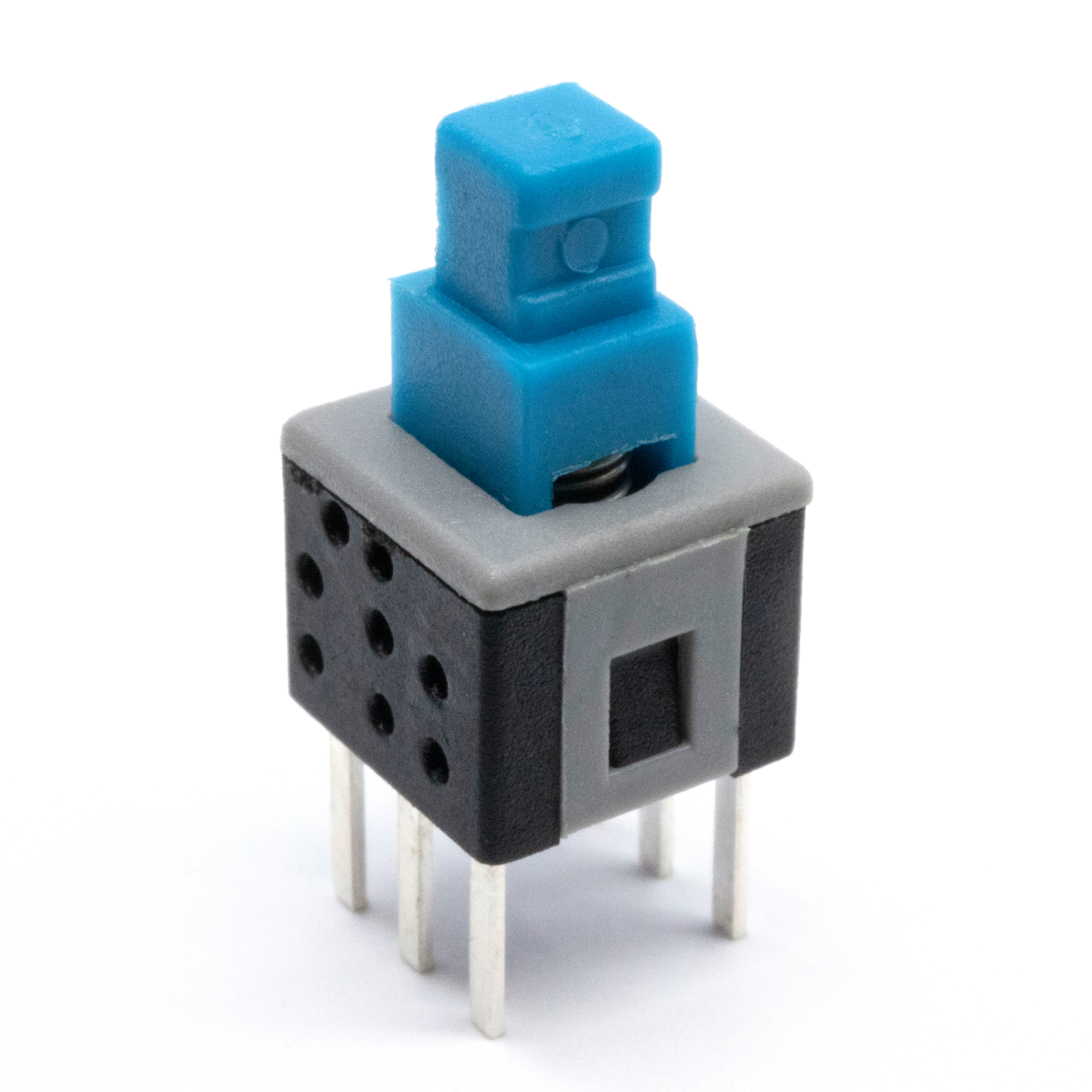

TL2203EE
PUSHBUTTON, 100mA, 30VDC, SPST, Off-On, Through Hole, Illuminated
- Series Name TL2203
- PackagingBulk
- Current Rating100mA
- Voltage Rating30VDC
- CircuitSPST
- FunctionOff-On
- Mounting TypeThrough Hole
- Termination TypePC Pin
- Actuator TypeRound, Plunger
- Illumination StyleNon-illuminated
- Illumination ColorNon-illuminated
- Operating Temperature-20°C to 70°C
