Read MoreTL2202 Series Subminiature Pushbutton Switch
TL2202 Series Subminiature Pushbutton Switch
Stock Check for TL2202OAYA
Not the product you are looking for? Configure your product
PUSHBUTTON, 100mA, 30VDC, DPDT, On-(On), Through Hole, Illuminated
About TL2202 Series
- Contact Rating: 100mA @ 30VDC
- PC board mount design
- Up to four poles; momentary and maintained (latching) functions
- Long travel
- Life Expectancy: 10,000 cycles
- Many actuator and cap options available
- MBB (shorting) version
TL2202 Series Markets
Product Specifications

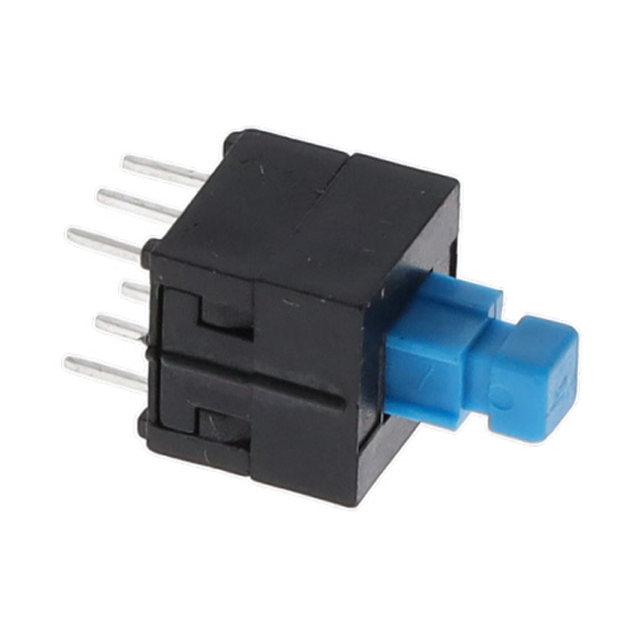

TL2202OAYA
PUSHBUTTON, 100mA, 30VDC, DPDT, On-(On), Through Hole, Illuminated
- Series Name TL2202
- PackagingBulk
- Current Rating100mA
- Voltage Rating30VDC
- CircuitDPDT
- FunctionOn-(On)
- Mounting TypeThrough Hole
- Termination TypePC Pin
- Actuator TypePlunger for Cap
- Illumination StyleNon-illuminated
- Illumination ColorNon-illuminated
