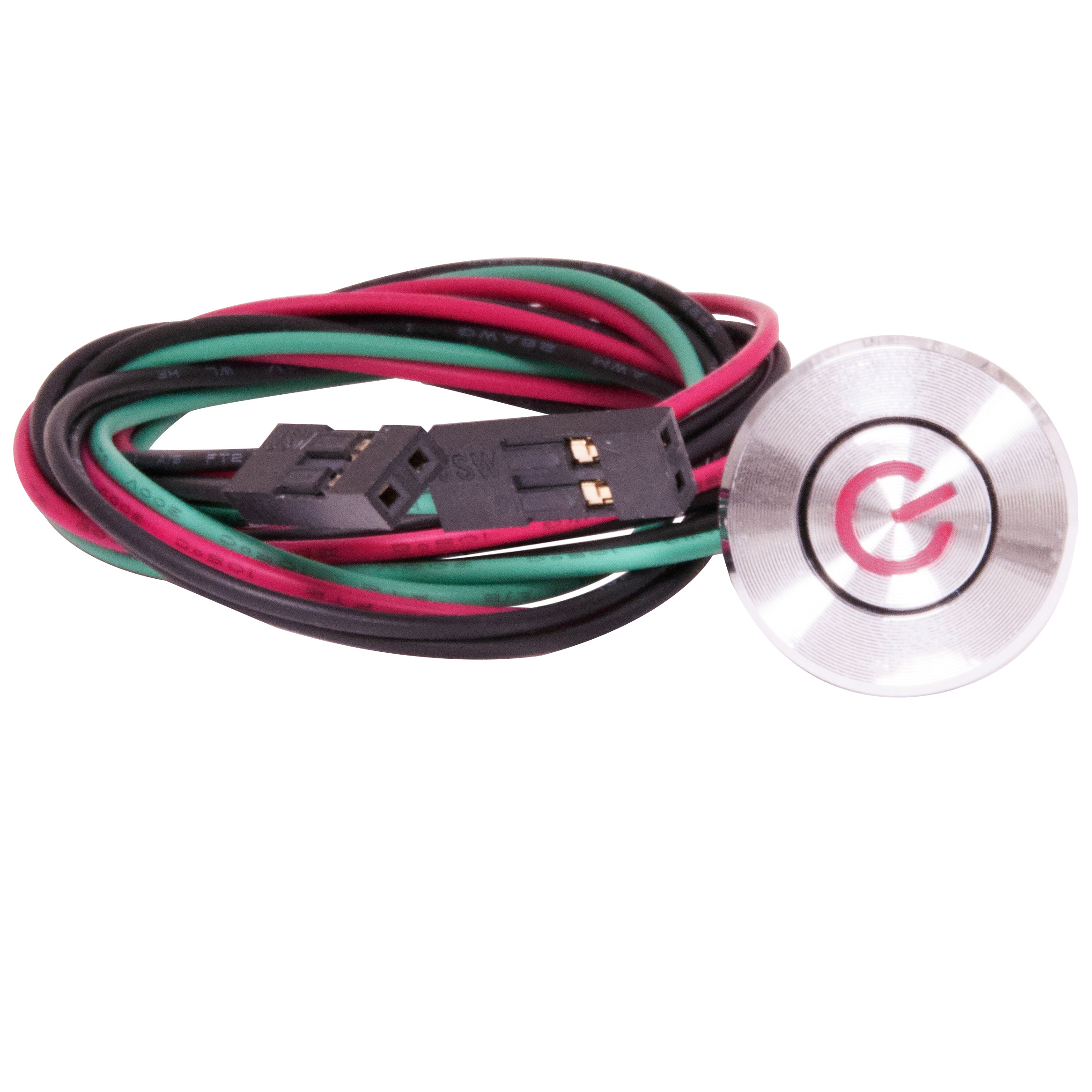

TL1275 Series Illuminated Tactile Switch with Wire Leads and Connectors
Stock Check for TL1275CA2WA500QPB
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Panel Mount, Illuminated
About TL1275 Series
- Panel mount tact switch:Â Tact switch soldered to a PCB, which is assembled into a module that allows for panel mounting
- 16mm diameter panel cutout
- (4) wires, 500mm long, with (2) connectors, 2.54mm pitch
- Flat, snap-in bezel, with 10mm diameter button
- Illuminated power symbol;Â many color and bi-color options
- 350gf operating force
- 0.25mm travel
- 100,000 cycle life
- Silver contact material
- -25°C to 70°C operating temperature
- 50mA @ 12VDC
- SPST-NO;Â On-(Off)
- Sharp tactile response
Product Specifications
TL1275CA2WA500QPB
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Panel Mount, Illuminated
- Series Name TL1275
- PackagingTray
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypePanel Mount
- Termination TypeWire Leads with Connector
- Contact MaterialSilver
- Actuator TypeFlush
- Actuator Height1.60mm
- Illumination StyleIlluminated
- Illumination ColorLED, Blue
- Operating Force350gf
- Operating Temperature-25°C to 70°C
