Read MoreTL1240 Series Illuminated, Through Hole Tactile Switch

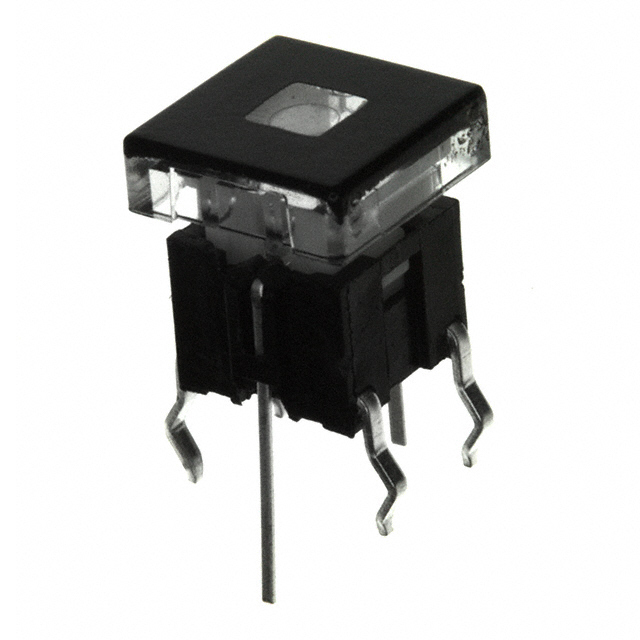

TL1240 Series Illuminated, Through Hole Tactile Switch
Stock Check for TL1240GQ2JBLK
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Through Hole, Illuminated
About TL1240 Series
- Through hole mounting design
- 6mm x 6mm
- Illuminated, with many LED color options
- Additional cap options
- 160gf operating force
- 100,000 cycle life
- Silver contact material
- -20°C to 70°C operating temperature
- 50mA @ 12VDC
TL1240 Series Markets
Product Specifications
TL1240GQ2JBLK
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Through Hole, Illuminated
- Series Name TL1240
- PackagingBulk
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeThrough Hole
- Termination TypePC Pin
- Contact MaterialSilver
- Actuator TypeSquare, Button
- Actuator Height8.20mm
- Illumination StyleIlluminated
- Illumination ColorLED, Green
- Illumination Voltage2.8 VDC
- Operating Force160gf
- Operating Temperature-20°C to 70°C
- Cap OptionBlack Cap
Support for TL1240GQ2JBLK
Not the product you are looking for? Configure your product
