Read MoreTL1030 Series Miniature SMT Tactile Switch

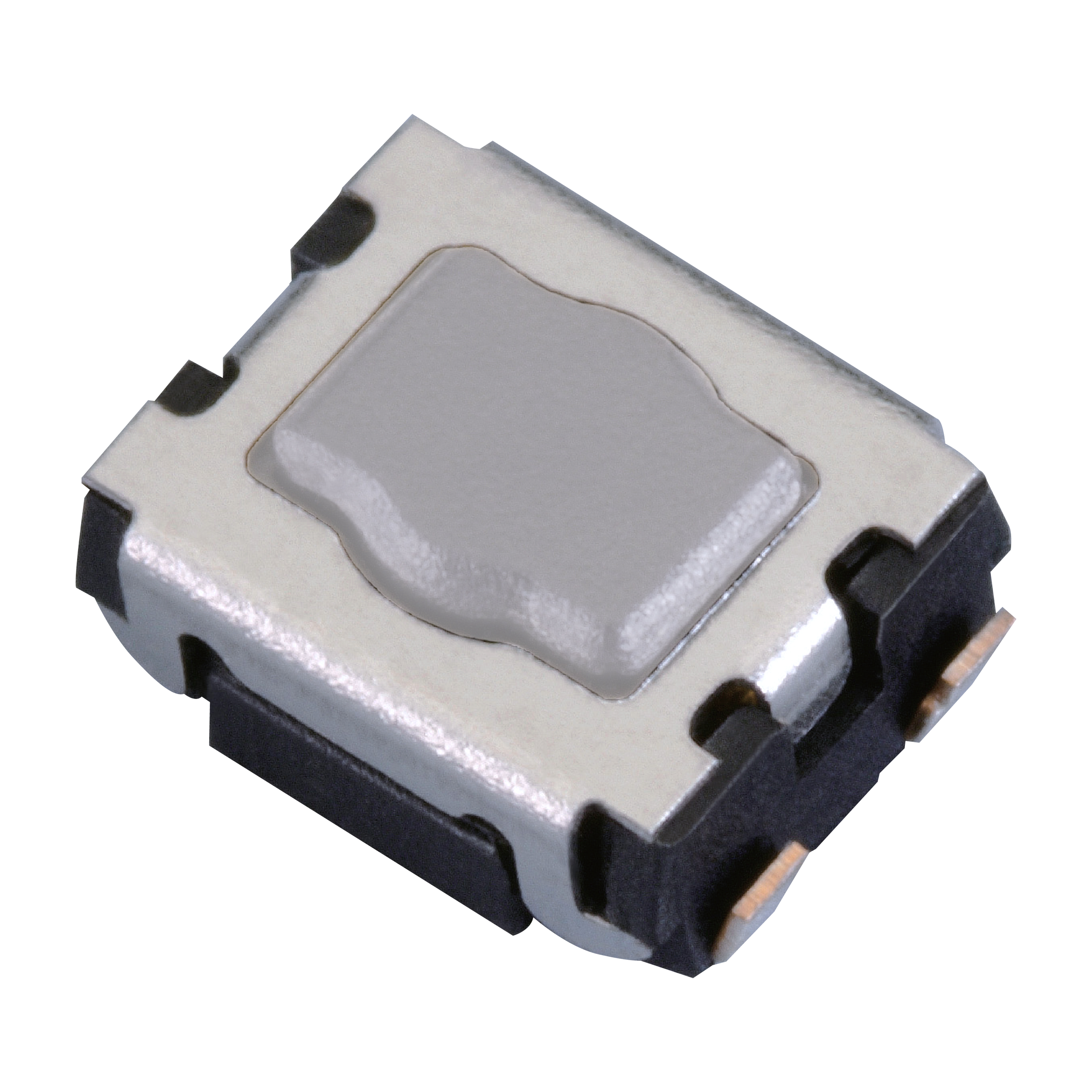

TL1030 Series Miniature SMT Tactile Switch
Stock Check for TL1030AF160AQJ
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount
About TL1030 Series
- Surface mount (SMT) design
- 3.5mm x 2.9mm
- 160gf, 200gf, 350gf, or 500gf operating force
- Ground terminal option
- J-lead termination
- Up to 200,000 cycle life
- Silver contact material
- -40°C to 85°C operating temperature
- 50mA @ 12VDC
- Tape and Reel packaging
TL1030 Series Markets
Product Specifications
TL1030AF160AQJ
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount
- Series Name TL1030
- PackagingTape & Reel
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeSurface Mount
- Termination TypeJ-lead
- Contact MaterialSilver
- Actuator TypeRectangular, Button
- Actuator Height1.70mm
- Operating Force160gf
- Operating Temperature-40°C to 85°C
Support for TL1030AF160AQJ
Not the product you are looking for? Configure your product
