SV7 Series Illuminated, Short Body Anti-Vandal Switch

SV7 Series Illuminated, Short Body Anti-Vandal Switch Wire Leads & Connectors Available

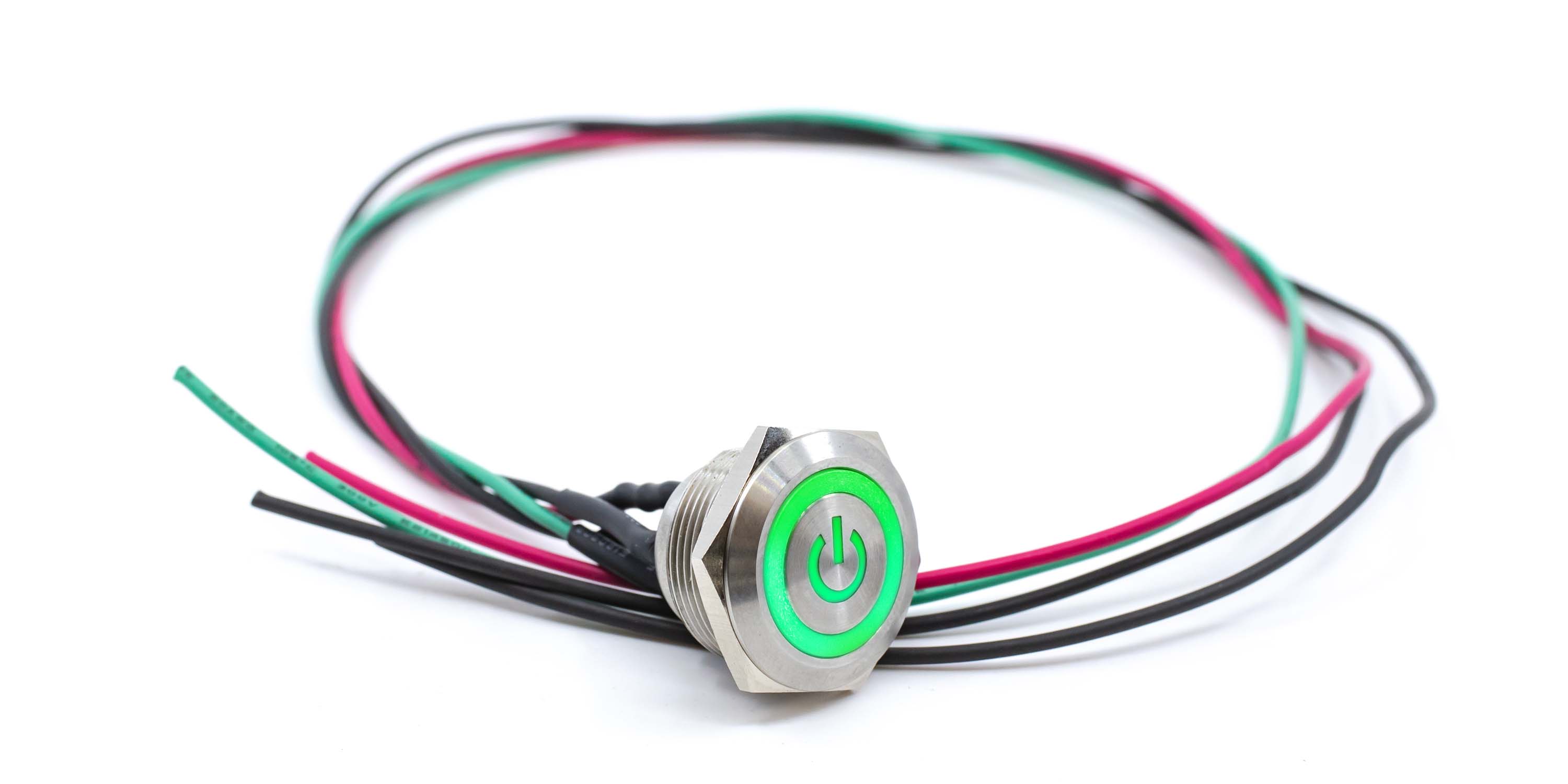

SV7 Series: SV7FW3SS-631

Categories: ANTI-VANDAL

RoHS Compliant REACH Compliant UL Certified

SV7 Series Illuminated, Short Body Anti-Vandal Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

SV7FW3SS-631

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for SV7FW3SS-631

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the SV7FW3SS-631 from our authorized distributors.

In-Stock Distributors

ANTI-VANDAL, 2A, 36VDC, SPST, Off-(On), Panel Mount, Front, Illuminated

Powered by oemsecrets

About SV7 Series

  • 22mm panel cutout
  • 2A, 36VDC;  IP67 rated
  • Short body design
  • SPST circuit; momentary function
  • Solder or wire leads 500mm long termination options
  • Stainless steel finish
  • Flat actuator
  • Illuminated ring or ring/power symbol options
  • Many LED illumination color options including bi-color
  • Laser etched custom graphic optional
  • 1 million cycles mechanical life
  • -20°C to 70°C operating temperature

E-Switch E-Bits: SV Short Body Anti-vandal Series

SV7 Series Markets

Industrial

Product Specifications

SV7FW3SS-631

ANTI-VANDAL, 2A, 36VDC, SPST, Off-(On), Panel Mount, Front, Illuminated

  • Series Name SV7
  • PackagingBulk
  • Current Rating2A
  • Voltage Rating36VDC
  • CircuitSPST
  • FunctionOff-(On)
  • Mounting TypePanel Mount, Front
  • Termination TypeWire Leads
  • Contact MaterialSilver
  • Actuator TypeRound, Button, Flush
  • Actuator ColorSilver
  • Illumination StyleRing/Power Symbol
  • Illumination ColorLED, Green
  • Illumination Voltage3.1VDC
  • Ingress ProtectionIP67
  • Panel Cutout DimensionsCircular - 22mm Dia.
  • Operating Temperature-20°C to 70°C
