ST5 Series High Current, High Temperature, Power Toggle Switch

ST5 Series High Current, High Temperature, Power Toggle Switch Wire Leads & Connectors Available

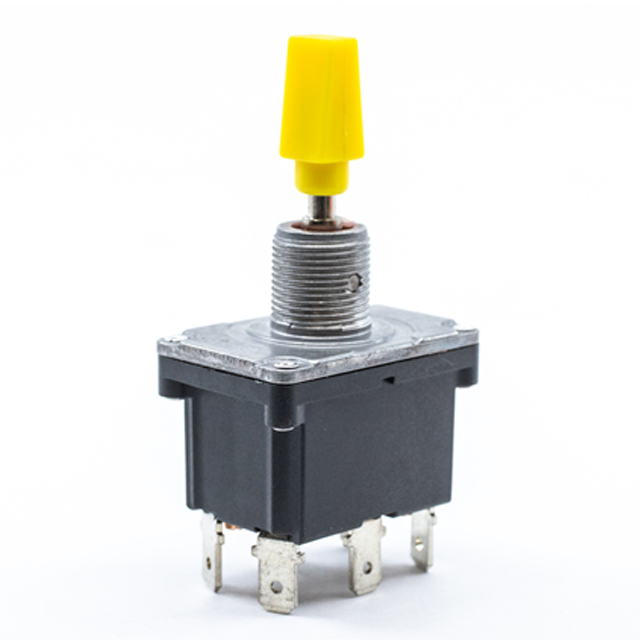

ST5 Series: ST5DP104T2C1

Categories: TOGGLE

RoHS Compliant REACH Compliant UL Certified

ST5 Series High Current, High Temperature, Power Toggle Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

ST5DP104T2C1

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for ST5DP104T2C1

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the ST5DP104T2C1 from our authorized distributors.

In-Stock Distributors

TOGGLE, 20A, 30VDC, DPDT, (On)-Off-(On), Panel Mount

Powered by oemsecrets

About ST5 Series

  • IP40
  • Electrical rating options:
    • 16(8)A @ 125/250VAC, µT 125/55; UL, cUL
    • 20(8)A @ 125/250VAC, µT 125/55; UL, cUL
    • 20A @ 6-30VAC, µT 125/55; UL, cUL
  • Single Pole or Double Pole, 2 or 3 positions; nine total function options
  • 3/16” quick connect, 1/4” quick connect, Solder lug, or Screw termination options
  • 17mm Metal Bat or 22mm Plastic Bat actuator options
  • 12mm diameter panel cutout
  • -10°C to 125°C operating temperature

ST5 Series High-Power Toggle Switch - E-Bits

ST5 Series Markets

Appliance

Product Specifications

ST5DP104T2C1

TOGGLE, 20A, 30VDC, DPDT, (On)-Off-(On), Panel Mount

  • Series Name ST5
  • PackagingBulk
  • Current Rating20A
  • Voltage Rating30VDC
  • CircuitDPDT
  • Function(On)-Off-(On)
  • Mounting TypePanel Mount
  • Termination TypeQuick Connect - 0.187"
  • Contact MaterialSilver
  • Actuator TypeFlatted
  • Actuator Height22.20mm
  • Ingress ProtectionIP40
  • Panel Cutout DimensionsCircular - 12mm Dia.
  • Operating Temperature-10°C to 125°C
  • Bushing15/32-32
