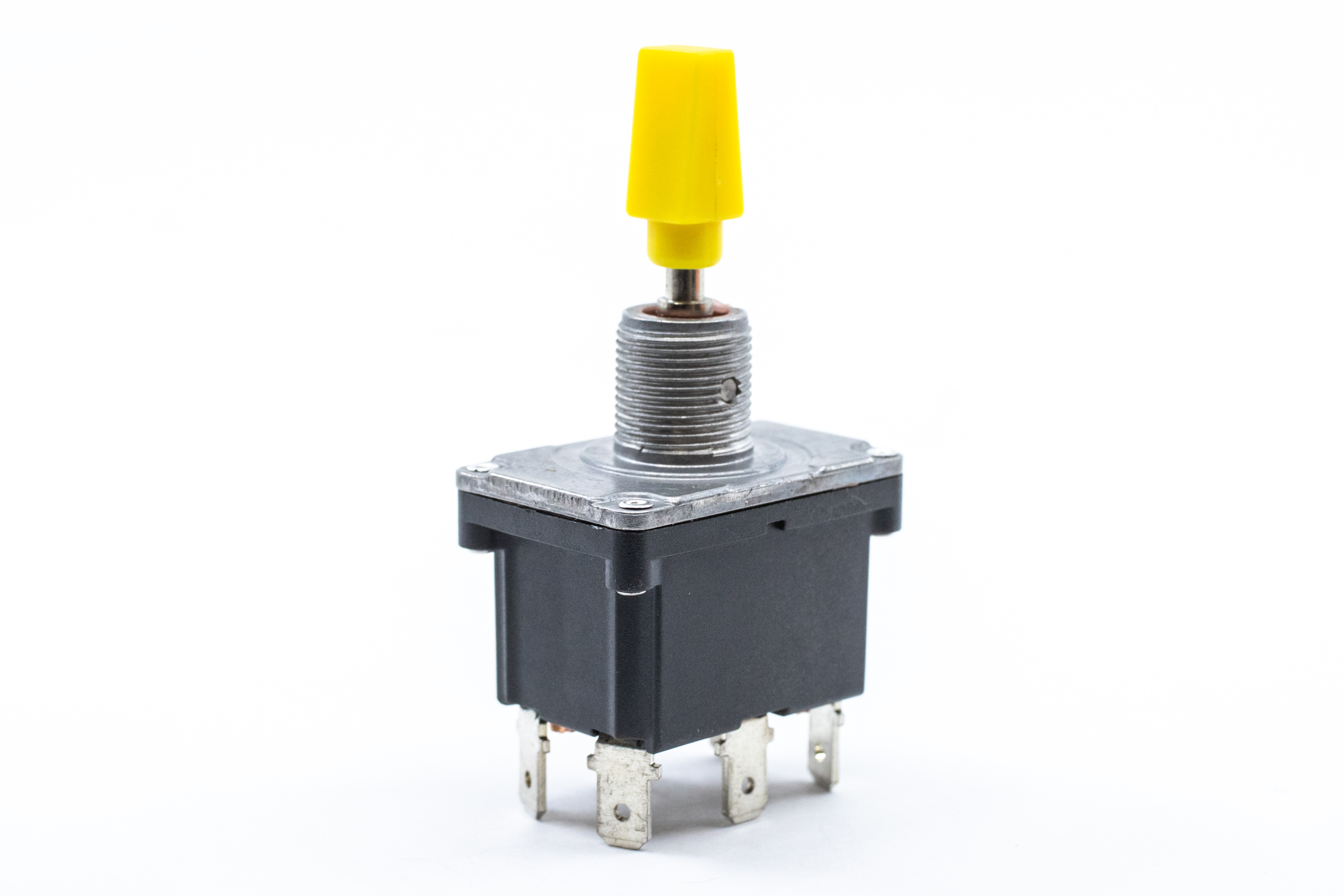

ST4 Series High Current, Sealed, Power Toggle Switch
Stock Check for ST4DP10DT2C1
Not the product you are looking for? Configure your product
TOGGLE, 20A, 30VDC, DPDT, (On)-Off-(On), Panel Mount
About ST4 Series
- IP68
- Electrical Rating options:
- 16(8)A @ 125/250VAC, μT55; UL, cUL
- 20(8)A @ 125/250VAC, μT55; UL, cUL
- 20A @ 6-30VDC, μT55; UL, cUL
- Single Pole or Double Pole, 2 or 3 positions; nine total function options
- 3/16” quick connect, 1/4” quick connect, Solder lug, or Screw termination options
- 17mm Metal Bat or 22mm Plastic Bat actuator options
- 12mm diameter panel cutout
- -10°C to 55°C operating temperature
ST4 Series Markets
Product Specifications
ST4DP10DT2C1
TOGGLE, 20A, 30VDC, DPDT, (On)-Off-(On), Panel Mount
- Series Name ST4
- PackagingBulk
- Current Rating20A
- Voltage Rating30VDC
- CircuitDPDT
- Function(On)-Off-(On)
- Mounting TypePanel Mount
- Termination TypeQuick Connect - 0.250
- Contact MaterialSilver
- Actuator TypeFlatted
- Actuator Height22.20mm
- Ingress ProtectionIP68
- Panel Cutout DimensionsCircular - 12mm Dia.
- Operating Temperature-10°C to 55°C
- Bushing15/32-32
