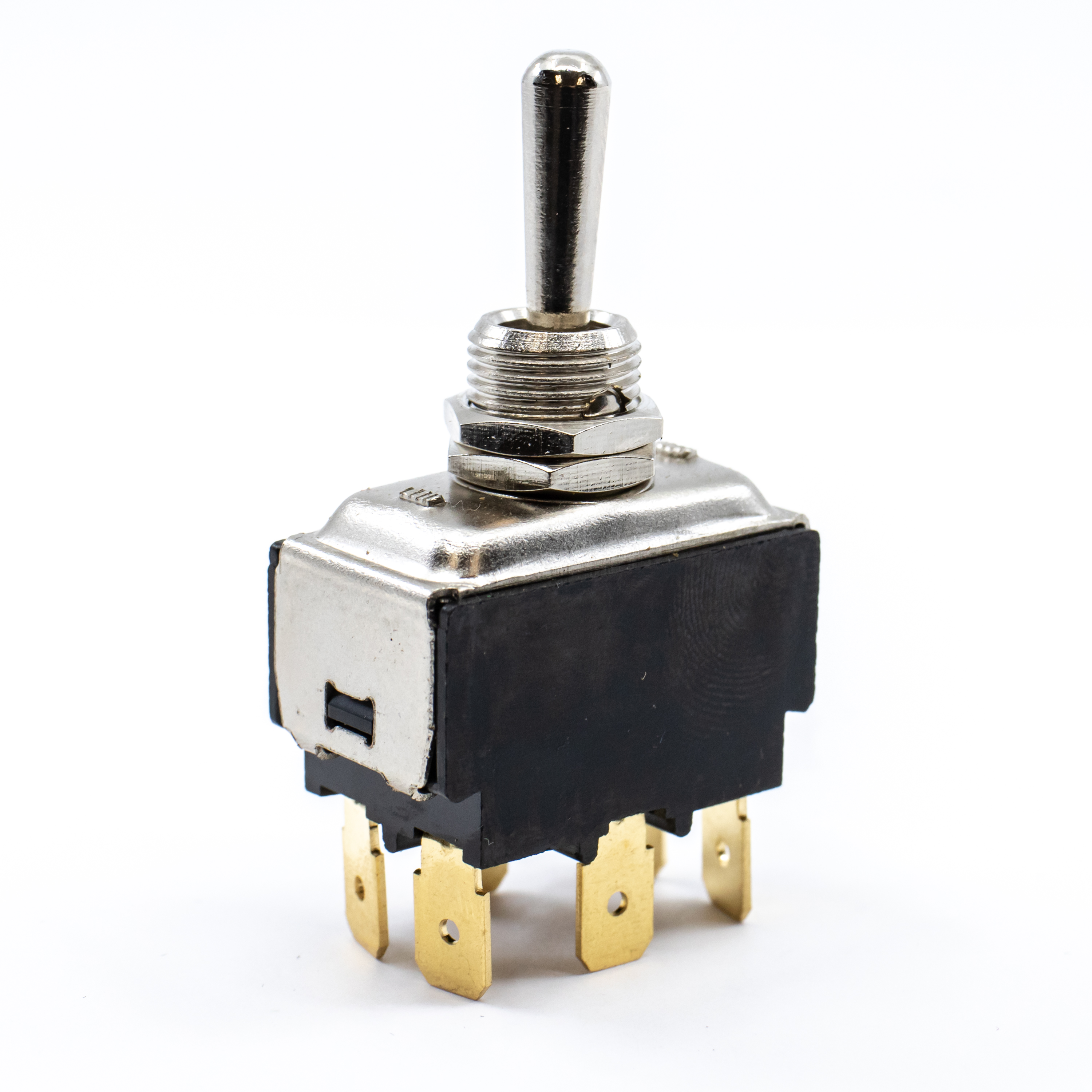

ST2 Series High Current, Power Toggle Switch
Stock Check for ST24KD00
Not the product you are looking for? Configure your product
TOGGLE, 20A, 125VAC, DPDT, (On)-Off-(On), Panel Mount
About ST2 Series
- Electrical Ratings:
- 20A 125VAC; UL, cUL
- 15A 277VAC; UL, cUL
- 2.0HP 125-277VAC; UL, cUL (latching), 1.5HP 125-277VAC; UL, cUL (momentary)
- DPST-NO, DPST, or DPDT circuit; momentary or latching function
- Tab, solder, screw, or wire leads termination options
- M12 x 1.0 or 15/32” – 32UNS bushing options
- 12mm diameter panel cutout
- 0°C to 85°C operating temperature
ST2 Series Markets
Product Specifications
ST24KD00
TOGGLE, 20A, 125VAC, DPDT, (On)-Off-(On), Panel Mount
- Series Name ST2
- PackagingBulk
- Current Rating20A
- Voltage Rating125VAC
- CircuitDPDT
- Function(On)-Off-(On)
- Mounting TypePanel Mount
- Termination TypeQuick Connect - 0.250"
- Contact MaterialSilver
- Actuator TypeStandard Round
- Actuator Height17.50mm
- Panel Cutout DimensionsCircular - 12mm Dia.
- Operating Temperature0°C to 85°C
- BushingM12 x 1
