SAV7 Series Illuminated, High Current Anti-Vandal Switch

SAV7 Series Illuminated, High Current Anti-Vandal Switch Wire Leads & Connectors Available

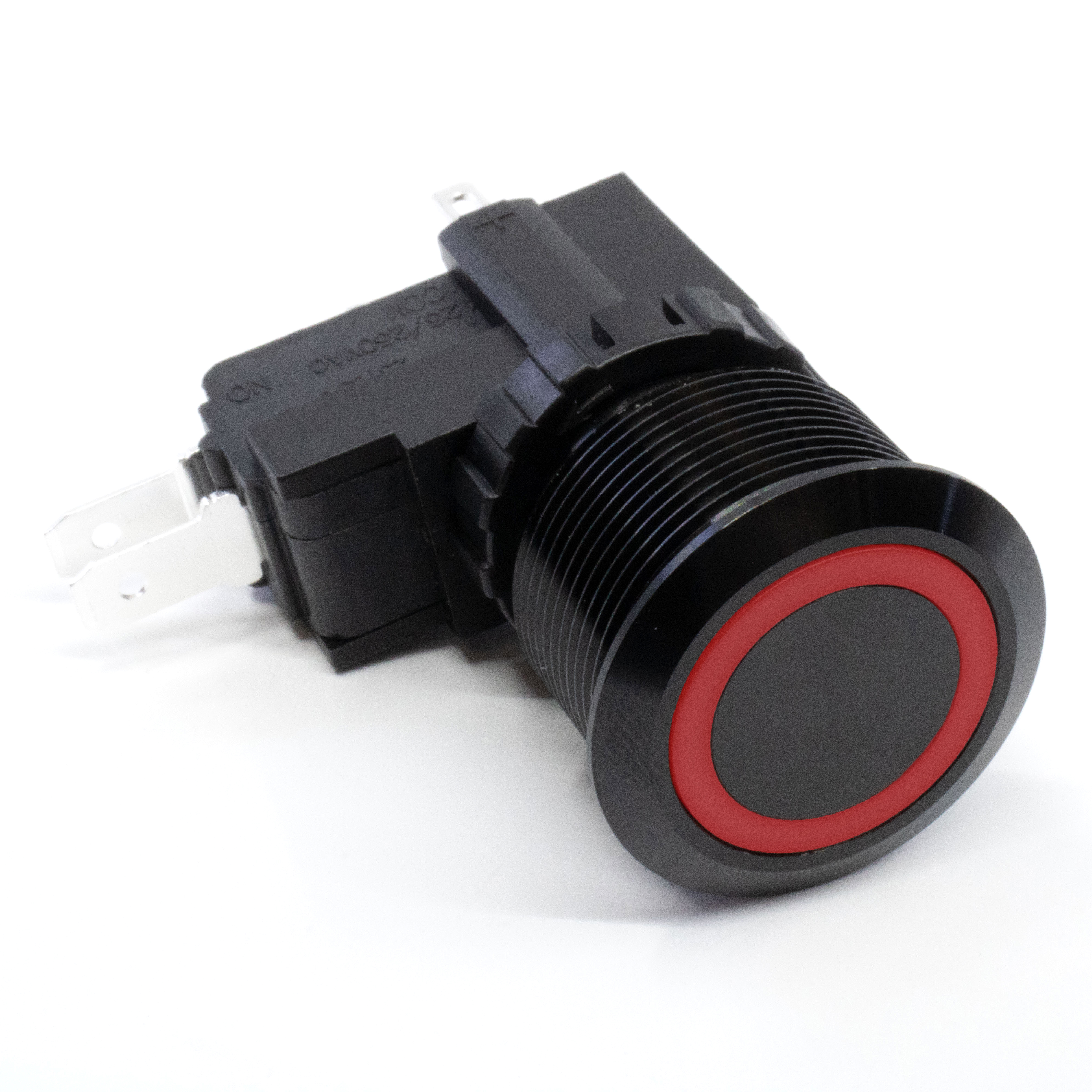

SAV7 Series: SAV7F1311311

Categories: ANTI-VANDAL

  • document Series Data Sheet
  • document Spec Sheet (2D)

RoHS Compliant REACH Compliant

SAV7 Series Illuminated, High Current Anti-Vandal Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

SAV7F1311311

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for SAV7F1311311

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the SAV7F1311311 from our authorized distributors.

In-Stock Distributors

ANTI-VANDAL, 15A, 125VAC, SPDT, On-On, Panel Mount, Front, Illuminated

Powered by oemsecrets

About SAV7 Series

  • 22mm panel cutout
  • 15A, 125/250VAC;  IP67 rated
  • SPDT circuit; latching or momentary function
  • Quick connect – 0.187″ (4.7mm) termination
  • Flat actuator
  • Stainless steel or black anodized finish options
  • Illuminated ring, ring and power symbol, or non-illuminated
  • Many LED illumination color options including bi-color
  • Many illumination voltage options
  • 10,000 cycles electrical life
  • -25°C to 85°C operating temperature

E-Switch E-Bits: SAV Series Anti-vandal Switch

SAV7 Series Markets

Security

Product Specifications

SAV7F1311311

ANTI-VANDAL, 15A, 125VAC, SPDT, On-On, Panel Mount, Front, Illuminated

  • Series Name SAV7
  • PackagingBulk
  • Current Rating15A
  • Voltage Rating125VAC
  • CircuitSPDT
  • FunctionOn-On
  • Mounting TypePanel Mount, Front
  • Termination TypeQuick Connect - 0.187"
  • Contact MaterialSilver
  • Actuator TypeRound, Button, Flush
  • Actuator ColorBlack
  • Illumination StyleRing
  • Illumination ColorLED, Red
  • Illumination Voltage3VDC
  • Ingress ProtectionIP67
  • Operating Force3.5N
  • Panel Cutout DimensionsCircular - 22mm Dia.
  • Operating Temperature-25°C to 85°C
