Read MoreRSC Series Illuminated, Power Rocker Switch with Bi-Color Actuator
RSC Series Illuminated, Power Rocker Switch with Bi-Color Actuator
Stock Check for RSC191D1021-137
Not the product you are looking for? Configure your product
ROCKER, 20A, 125VAC, SPST, Off-On, Panel Mount, Snap-In, Illuminated
About RSC Series
- Four different panel cutout options between 12.1mm and 13.9mm x 27.2mm and 28.6mm
- Up to 20A, 125VAC, 1/4HP; UL, cUL
- SPST or SPDT; momentary or latching function
- Panel mount snap-in design
- Quick connect – 0.187″, 0.250″, solder, or wire leads termination
- Full-illumination or non-illuminated
- Many housing and actuator color options including bi-color
- Eight actuator marking options
- -20°C to 105°C operating temperature
RSC Series Markets
Product Specifications

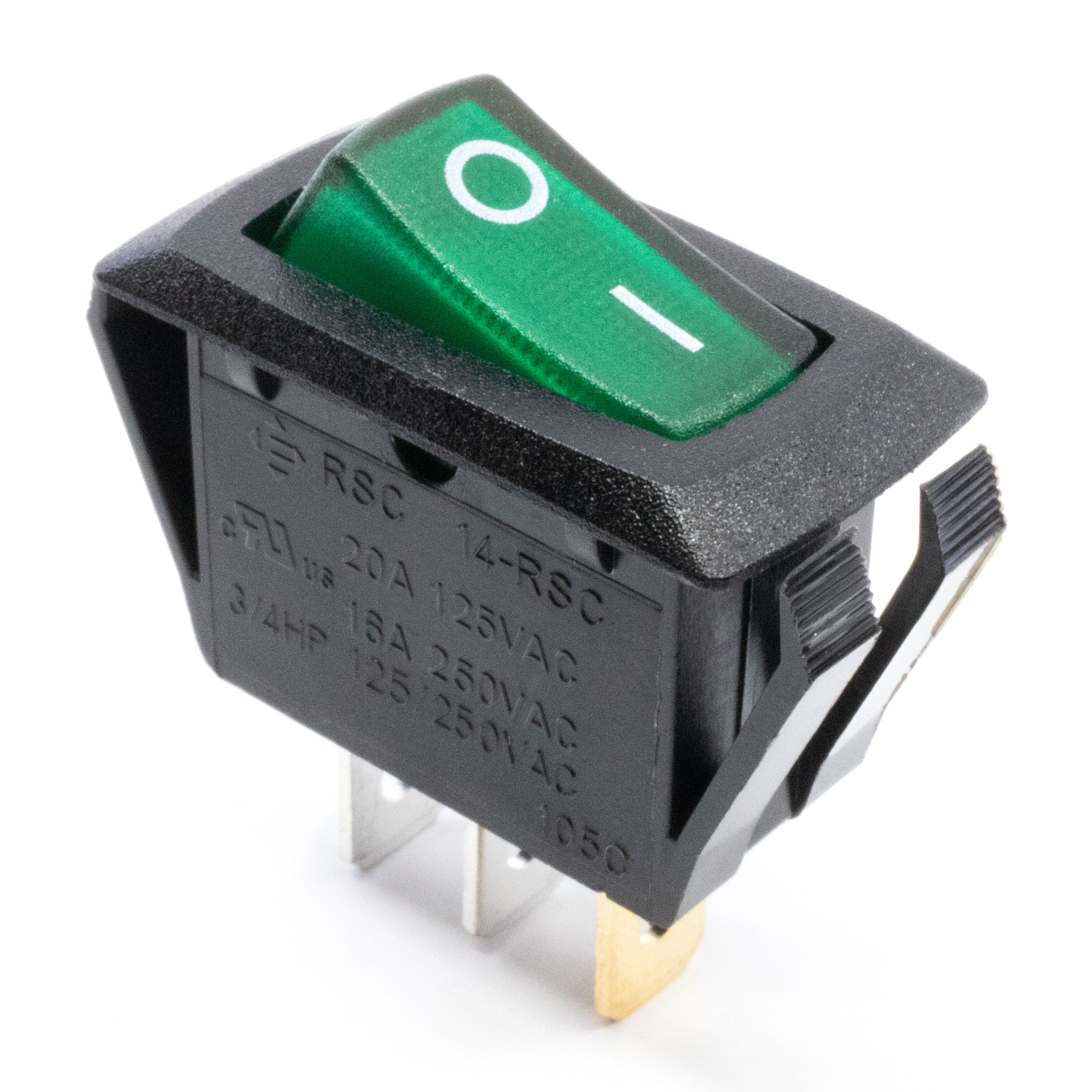

RSC191D1021-137
ROCKER, 20A, 125VAC, SPST, Off-On, Panel Mount, Snap-In, Illuminated
- Series Name RSC
- PackagingBulk
- Current Rating20A
- Voltage Rating125VAC
- CircuitSPST
- FunctionOff-On
- Mounting TypePanel Mount, Snap-In
- Termination TypeQuick Connect - 0.250
- Actuator TypeConcave (Curved) - Illuminated
- Actuator ColorGreen
- Illumination StyleFull
- Illumination ColorLED, Green
- Illumination Voltage250VAC
- MarkingI/O Vertical
- Panel Cutout DimensionsRectangular - 28.6mm x 13.9mm
- Operating Temperature-20°C to 105°C
Support for RSC191D1021-137
Not the product you are looking for? Configure your product
