Read MoreRRA Series Round, Illuminated, Power Rocker Switch with PVC Cap

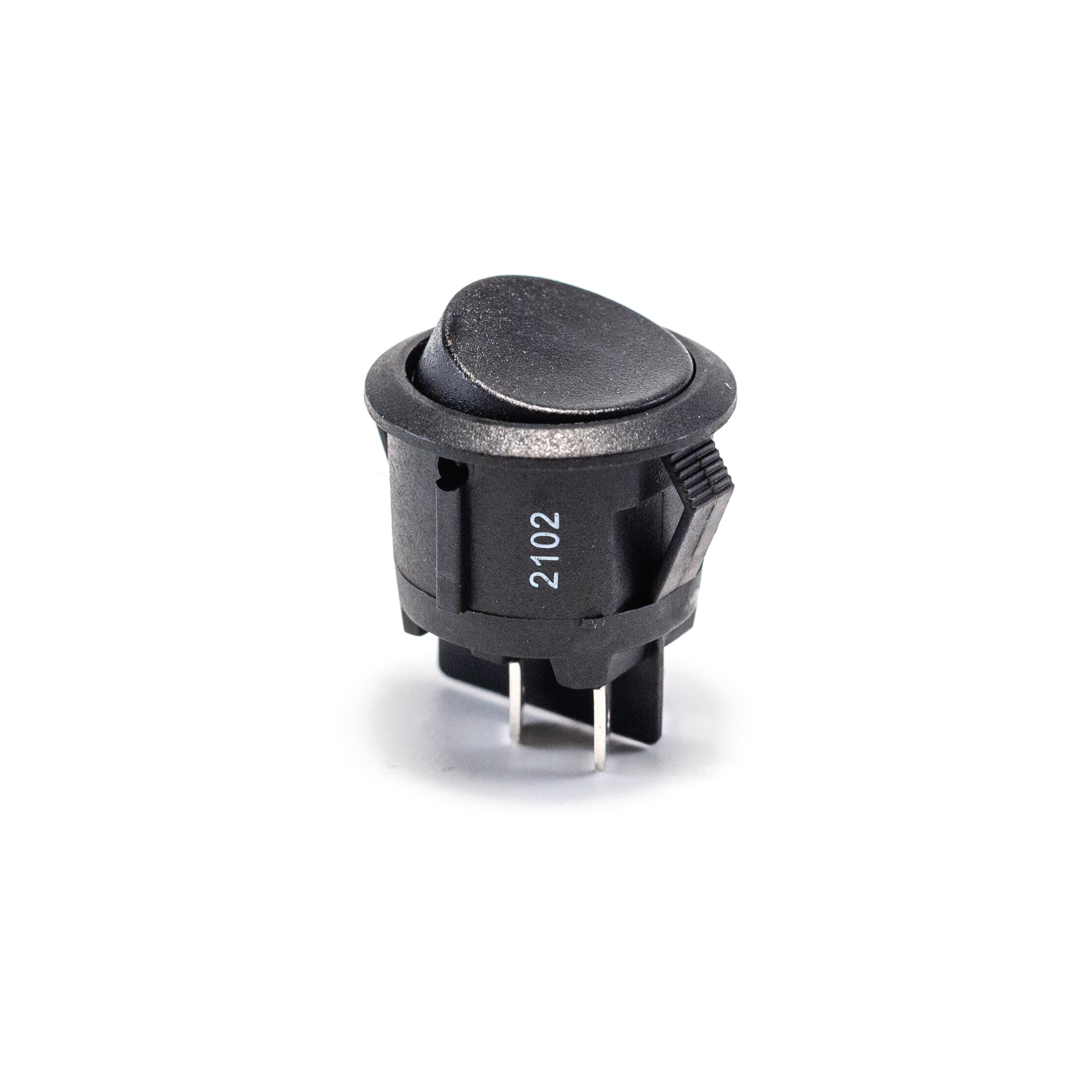

RRA Series Round, Illuminated, Power Rocker Switch with PVC Cap
Stock Check for RRA12C1100
Not the product you are looking for? Configure your product
ROCKER, 15A, 125VAC, DPST, Off-On, Panel Mount, Snap-In, Illuminated
About RRA Series
- IP54 with PVC cap: ACC-P04
- 22mm panel cutout
- Up to 15A, 125VAC, 1/3HP; UL, cUL
- 1 or 2 poles; 2 or 3 positions; latching function
- Panel mount snap-in design
- Quick connect – 0.187″, or wire leads termination
- Full illumination or non-illuminated options
- Many housing and actuator color options
- Eight actuator marking options
- Multiple LED illumination color and voltage options
- -20°C to 105°C operating temperature
RRA Series Markets
Product Specifications
RRA12C1100
ROCKER, 15A, 125VAC, DPST, Off-On, Panel Mount, Snap-In, Illuminated
- Series Name RRA
- PackagingBulk
- Current Rating15A
- Voltage Rating125VAC
- CircuitDPST
- FunctionOff-On
- Mounting TypePanel Mount, Snap-In
- Termination TypeQuick Connect - 0.187"
- Actuator TypeRound
- Actuator ColorBlack
- Illumination StyleNon-illuminated
- Illumination ColorNon-illuminated
- Panel Cutout DimensionsCircular - 22mm Dia.
- Operating Temperature-20°C to 105°C
Support for RRA12C1100
Not the product you are looking for? Configure your product
