RP8700 Series Round, Illuminated Pushbutton Switch

RP8700 Series Round, Illuminated Pushbutton Switch Wire Leads & Connectors Available

RP8700 Series: RP8701AB2M2CEBLKREDNIL

Categories: PUSHBUTTON

RoHS Compliant REACH Compliant

RP8700 Series Round, Illuminated Pushbutton Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

RP8701AB2M2CEBLKREDNIL

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for RP8701AB2M2CEBLKREDNIL

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the RP8701AB2M2CEBLKREDNIL from our authorized distributors.

In-Stock Distributors

PUSHBUTTON, 125mA (AC)/200mA (DC), 125VAC/50VDC, SPST, Off-(On), Panel Mount, Front

Powered by oemsecrets

About RP8700 Series

  • 13.6mm diameter panel cutout
  • Threaded bushing (M12 x 0.75)
  • 125mA, 125VAC; 200mA, 50VDC;  IP68 rated
  • SPST; Off-(On) or On-(Off)
  • Solder, PC Pin, or wire leads with ECM connector
  • Round, high, or domed button; many color options
  • LED illumination options
  • Nylon housing and actuator
  • Life expectancy of 500,000 cycles
  • Travel: 1.5mm

RP8700 Series Markets

Industrial

Product Specifications

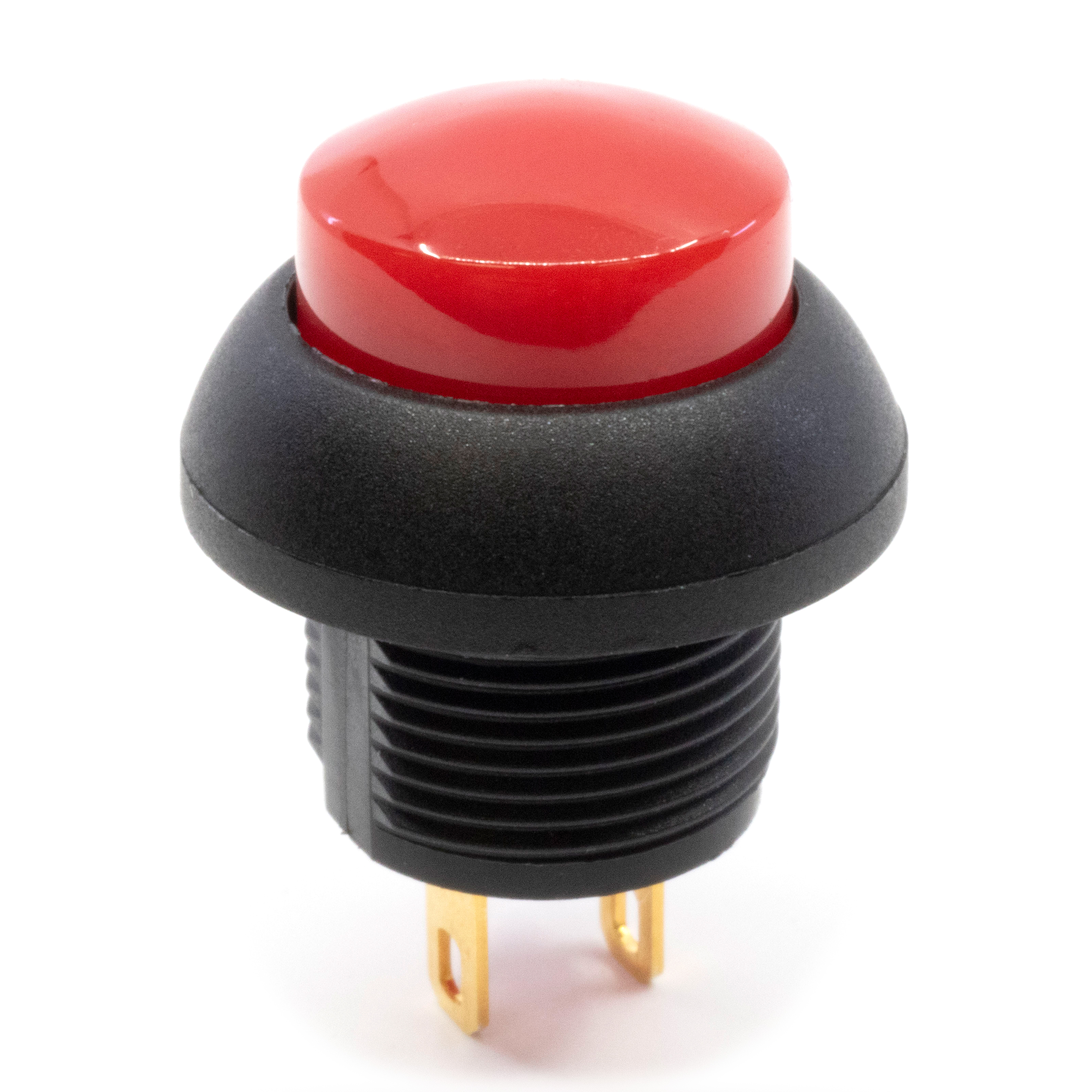

RP8701AB2M2CEBLKREDNIL

PUSHBUTTON, 125mA (AC)/200mA (DC), 125VAC/50VDC, SPST, Off-(On), Panel Mount, Front

  • Series Name RP8700
  • PackagingBulk
  • Current Rating125mA (AC)/200mA (DC)
  • Voltage Rating125VAC/50VDC
  • CircuitSPST
  • FunctionOff-(On)
  • Mounting TypePanel Mount, Front
  • Termination TypeSolder
  • Contact MaterialGold over Silver
  • Actuator TypeRound, Button
  • Actuator ColorRed
  • Illumination StyleNon-illuminated
  • Illumination ColorNon-illuminated
  • Ingress ProtectionIP68
  • Panel Cutout DimensionsCircular - 13.6mm Dia.
  • Operating Temperature-30°C to 85°C


Support for RP8701AB2M2CEBLKREDNIL
