Read MoreRP8400 Series Square, Illuminated Pushbutton Switch

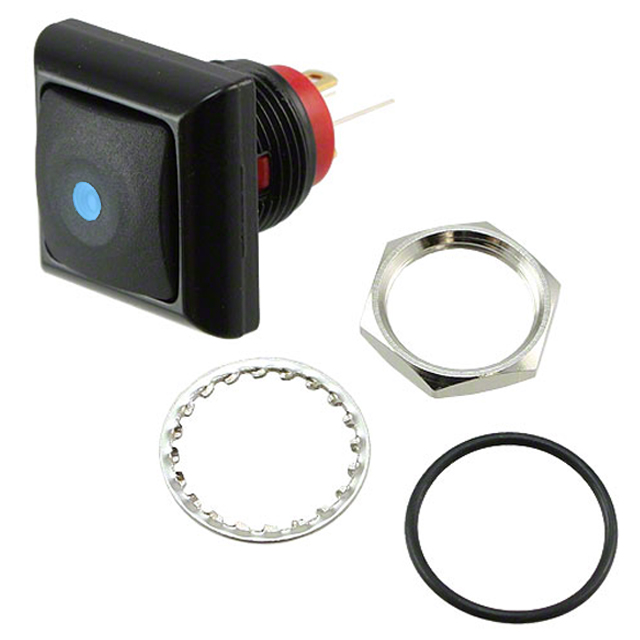

RP8400 Series Square, Illuminated Pushbutton Switch
Stock Check for RP8400B2M1CEBLKBLKBLU
Not the product you are looking for? Configure your product
PUSHBUTTON, 200mA, 50VDC, SPST, Off-(On), Panel Mount, Front, Illuminated
About RP8400 Series
- IP67 rated protection from dust and moisture
- Panel Cutout: 13.6mm diameter
- Metal Die-cast housing with nylon actuator
- Threaded mount
- Life expectancy of 500,000 cycles
- Electrical Rating: 125mA @ 125VAC; 100mA @ 50VDC
- LED illumination options
- SPST, momentary pushbuttons
- Operating Temperature: -30°C to 85°C
- Travel: 1.5mm
RP8400 Series Markets
Product Specifications
RP8400B2M1CEBLKBLKBLU
PUSHBUTTON, 200mA, 50VDC, SPST, Off-(On), Panel Mount, Front, Illuminated
- Series Name RP8400
- PackagingBulk
- Current Rating200mA
- Voltage Rating50VDC
- CircuitSPST
- FunctionOff-(On)
- Mounting TypePanel Mount, Front
- Termination TypeSolder
- Contact MaterialGold over Silver
- Actuator TypeSquare, Button
- Actuator ColorBlack
- Illumination StyleDot
- Illumination ColorLED, Blue
- Illumination Voltage2.8VDC
- Ingress ProtectionIP67
- Panel Cutout DimensionsCircular - 13.6mm Dia.
- Operating Temperature-30°C to 85°C
Support for RP8400B2M1CEBLKBLKBLU
Not the product you are looking for? Configure your product
