RE1 Series Oval, Illuminated, Power Rocker Switch
Stock Check for RE11131021-134
Not the product you are looking for? Configure your product

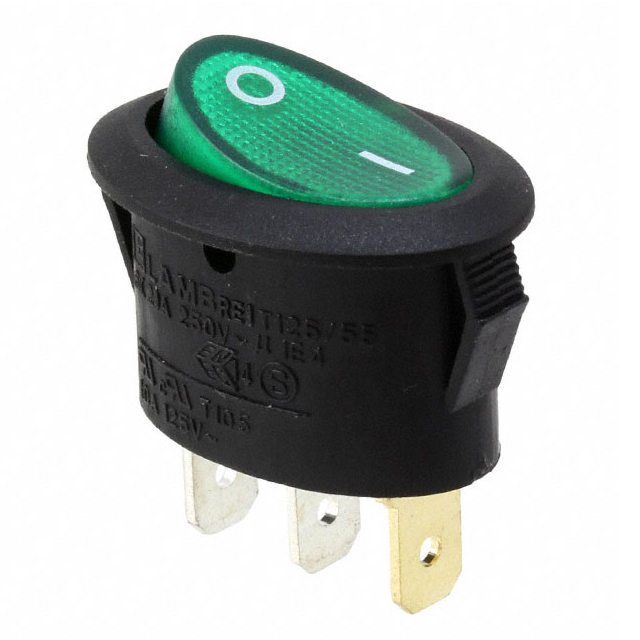

ROCKER, 10A, 125VAC, SPST, Off-On, Panel Mount, Snap-In, Illuminated
About RE1 Series
- 23.3mm x 13.5mm – Oval panel cutout
- Up to 16A, 125VAC, 1/3HP; UL, cUL
- SPST or SPDT; latching function
- Panel mount snap-in design
- Quick connect – 0.187″, or wire leads termination
- Full illumination or non-illuminated options
- Eight actuator marking options
- Multiple LED illumination color and voltage options
- -20°C to 105°C operating temperature
RE1 Series Markets
Product Specifications
RE11131021-134
ROCKER, 10A, 125VAC, SPST, Off-On, Panel Mount, Snap-In, Illuminated
- Series Name RE1
- PackagingBulk
- Current Rating10A
- Voltage Rating125VAC
- CircuitSPST
- FunctionOff-On
- Mounting TypePanel Mount, Snap-In
- Termination TypeQuick Connect - 0.187
- Actuator TypeOval - Illuminated
- Actuator ColorGreen
- Illumination StyleFull
- Illumination ColorLED, Green
- Illumination Voltage12VDC
- MarkingI/O Vertical
- Panel Cutout DimensionsOval - 23.3mm x 13.5mm
- Operating Temperature-20°C to 105°C
Support for RE11131021-134
