RDT Series Sealed Rotary DIP Switch
RDT Series Sealed Rotary DIP Switch
Stock Check for RDTAR10P2T
Not the product you are looking for? Configure your product
ROTARY DIP, 150mA, 42VDC, BCD, Through Hole
About RDT Series
- IP67 for A, B, and D actuators
- Electrical ratings:Â Switch:Â 42VDC, 150mA;Â Carry:Â 42VDC, 200mA
- Through hole vertical, right angle; or surface mount (SMT) design
- Many actuator options
- 4, 6, 8, 10, or 16 positions
- 10mm x 10mm housing
- 10,000 steps life expectancy
- Real or complementary code
- Gold contact material
- -40ºC to 85ºC operating temperature (THT versions)
- -60ºC to 125ºC operating temperature (SMT versions)
- Tube or tape and reel packaging
RDT Series Markets
Product Specifications

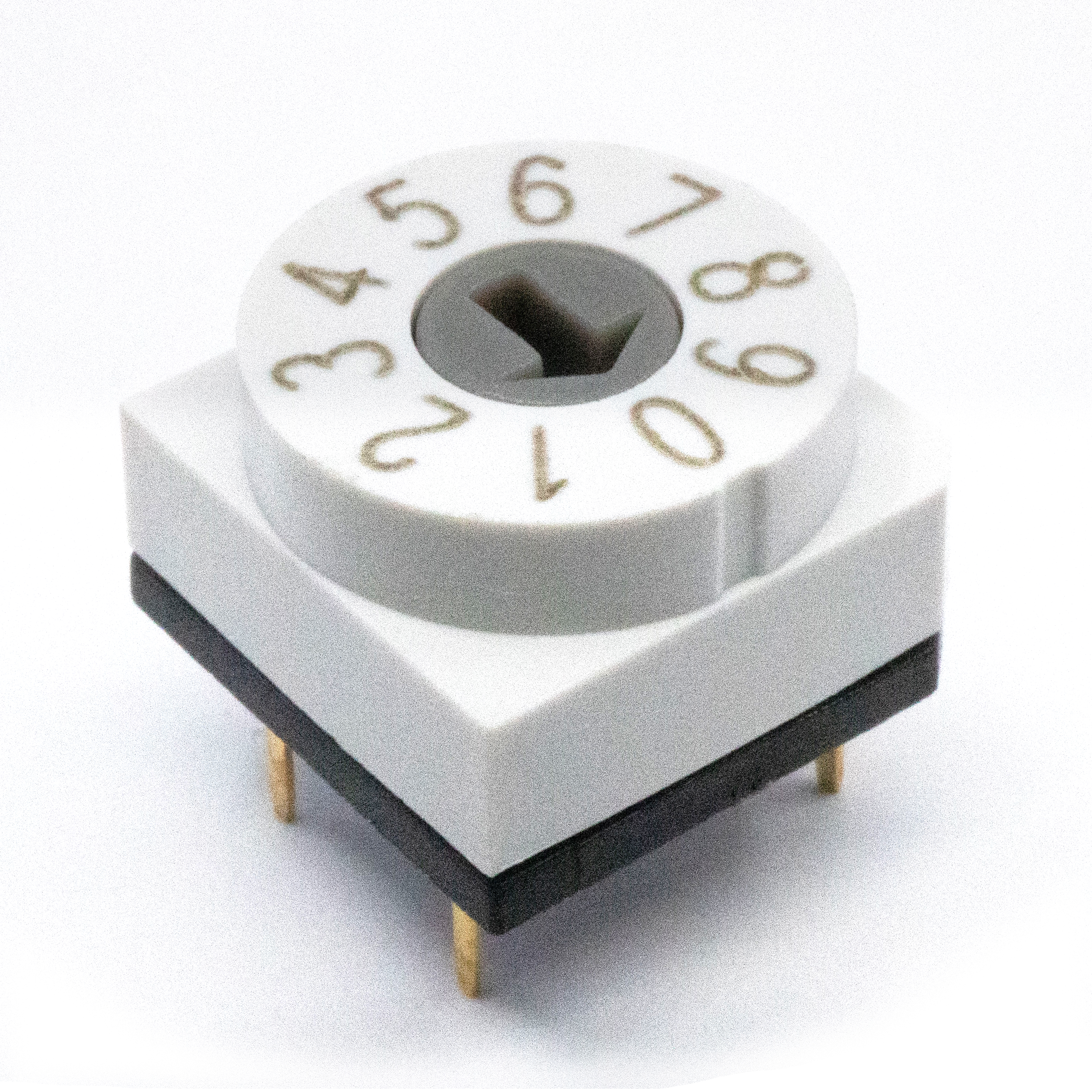

RDTAR10P2T
ROTARY DIP, 150mA, 42VDC, BCD, Through Hole
- Series Name RDT
- PackagingTube
- Current Rating150mA
- Voltage Rating42VDC
- CircuitBCD
- Mounting TypeThrough Hole
- Termination TypePC Pin
- Contact MaterialGold
- Actuator TypeRotary for Tool
- Ingress ProtectionIP67
- Operating Temperature-40°C to 85°C
- Nbr of Positions10
- Pitch0.100" (2.54mm), Full
