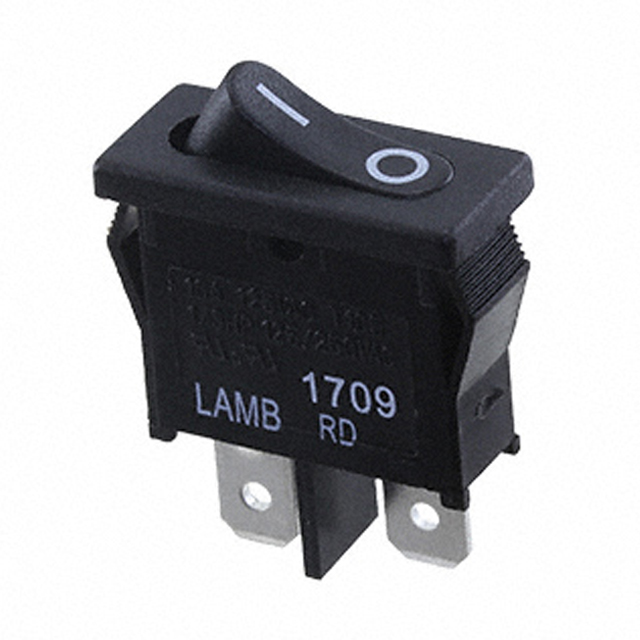

RD1 Series Compact, Power Rocker Switch

RD1 Series: RD111C1121

Categories: ROCKER

Series Data Sheet

RD1 Series Compact, Power Rocker Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

Series: Terminal: Function: Rating: Body Color: Actuator Color: Marking Color: Marking Type:

* If you need further customization, we can help!

Current Configuration:

RD111C1121

Spec Sheet (2D)

... in stock, available to buy now.

Quantity:

Additional Purchase Options:

Check Distributor Stock

Request Sample

Stock Check for RD111C1121

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the RD111C1121 from our authorized distributors.

In-Stock Distributors

ROCKER, 16A, 125VAC, SPST, Off-On, Panel Mount, Snap-In

Quantity:

About RD1 Series

19.2mm x 6.8mm panel cutout
Up to 16A, 125VAC, 1/3HP; UL, cUL
SPST; latching function
Panel mount snap-in design
Quick connect – 0.187″ termination
Housing and actuator color options
Actuator marking options
Non-illuminated
-20°C to 105°C operating temperature

What are Rocker Switches?

RD1 Series Markets

Agricultural Appliance Audio Visual Automation Construction Fitness Food Industry Home Maintenance Industrial Marine Medical Personal Care Security Sustainable Energy Telecommunications Transportation

Product Specifications

RD111C1121

ROCKER, 16A, 125VAC, SPST, Off-On, Panel Mount, Snap-In

Series Name RD1
PackagingBulk
Current Rating16A
Voltage Rating125VAC
CircuitSPST
FunctionOff-On
Mounting TypePanel Mount, Snap-In
Termination TypeQuick Connect - 0.187
Actuator TypeConcave (Curved)
Actuator ColorBlack
Illumination StyleNon-illuminated
Illumination ColorNon-illuminated
MarkingI/O Vertical
Panel Cutout DimensionsRectangular - 19.2mm x 6.8mm
Operating Temperature-20°C to 105°C
