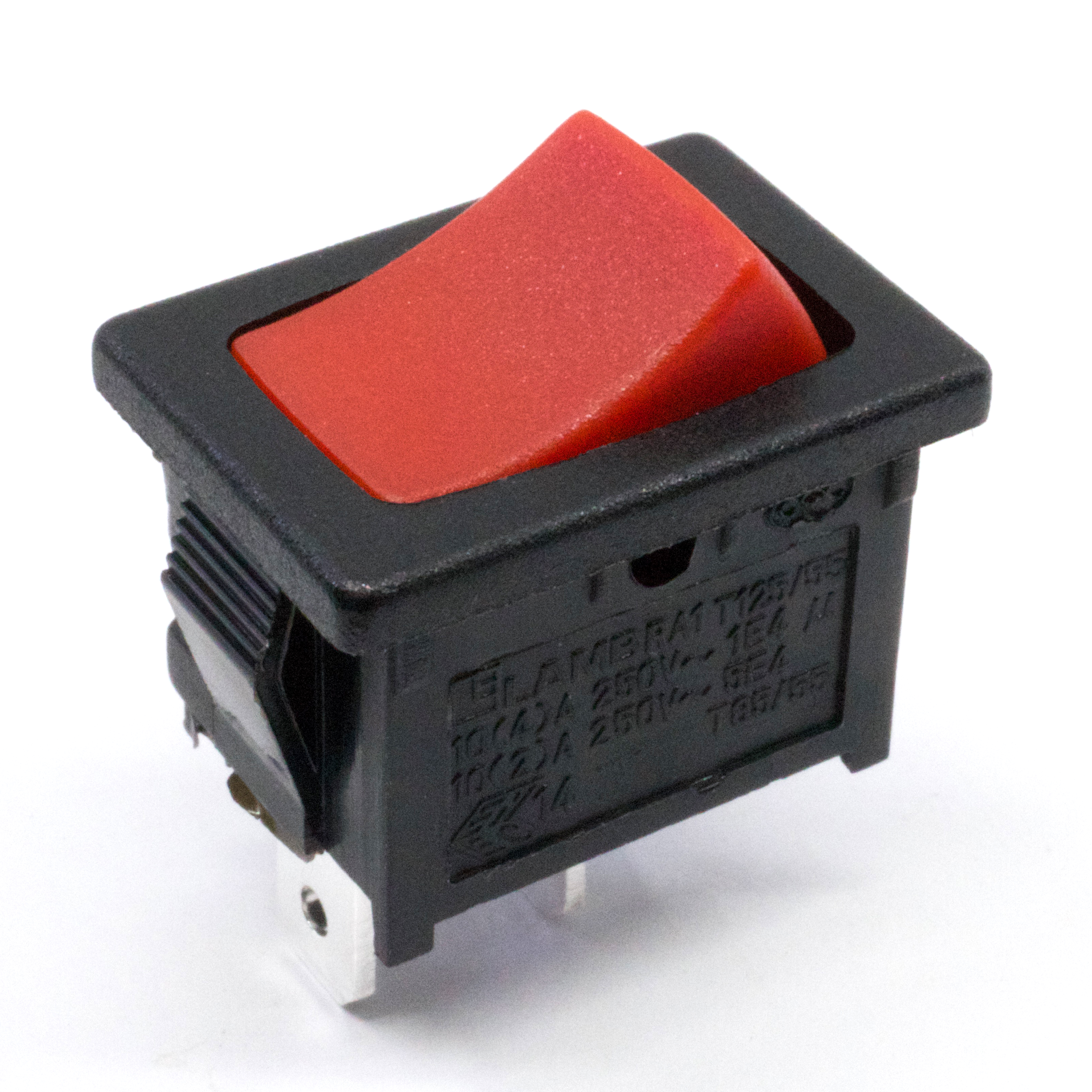

RA1 Series Illuminated, Power Rocker Switch with PVC Cap

Wire Leads & Connectors Available

RA1 Series: RA111C1900

Categories: ROCKER

Series Data Sheet

RA1 Series Illuminated, Power Rocker Switch with PVC Cap

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

Series: Terminal: Function: Rating: Body Color: Actuator Color: Marking Color: Marking Type: Lens Style: Lens Color: Lamp Voltage: Optional PVC Cap:

* If you need further customization, we can help!

Current Configuration:

RA111C1900

Spec Sheet (2D)

... in stock, available to buy now.

Quantity:

Additional Purchase Options:

Check Distributor Stock

Request Sample

Stock Check for RA111C1900

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the RA111C1900 from our authorized distributors.

In-Stock Distributors

ROCKER, 16A, 125VAC, SPST, Off-On, Panel Mount, Snap-In

Quantity:

About RA1 Series

19.2mm x 13mm panel cutout
10A, 125VAC; UL, cUL (Rating 3)
16A, 125VAC, 1/3HP; 10A, 250VAC, 1/3HP UL, cUL (Rating C)
SPST or SPDT, momentary or latching function
Panel mount snap-in or panel mount snap-in right angle design
Solder, quick connect – 0.187″, or PC Pin termination options
Full LED illumination or non-illuminated options
Multiple housing and actuator color options
Eight actuator marking options
Many illumination voltage options
-20°C to 55°C operating temperature
IP54 with PVC cap: ACC-P01

What are Rocker Switches?

RA1 Series Markets

Transportation Industrial Medical Appliance Audio Visual Construction

Product Specifications

RA111C1900

ROCKER, 16A, 125VAC, SPST, Off-On, Panel Mount, Snap-In

Series Name RA1
PackagingBulk
Current Rating16A
Voltage Rating125VAC
CircuitSPST
FunctionOff-On
Mounting TypePanel Mount, Snap-In
Termination TypeQuick Connect - 0.187
Actuator TypeConcave (Curved)
Actuator ColorRed
Illumination StyleNon-illuminated
Illumination ColorNon-illuminated
Panel Cutout DimensionsRectangular - 19.2mm x 13mm
Operating Temperature-20°C to 55°C
