RA1 Series Illuminated, Power Rocker Switch with PVC Cap

RA1 Series Illuminated, Power Rocker Switch with PVC Cap Wire Leads & Connectors Available

RA1 Series: RA11131100

Categories: ROCKER

  • document Series Data Sheet
  • document Spec Sheet (2D)

RoHS Compliant REACH Compliant UL Certified ENEC Certified

RA1 Series Illuminated, Power Rocker Switch with PVC Cap

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

RA11131100

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for RA11131100

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the RA11131100 from our authorized distributors.

In-Stock Distributors

ROCKER, 10A, 125VAC, SPST, Off-On, Panel Mount, Snap-In

Powered by oemsecrets

About RA1 Series

  • IP54 with PVC cap: ACC-P01
  • 19.2mm x 13mm panel cutout
  • 10A, 125VAC; UL, cUL (Rating 3)
  • 16A, 125VAC, 1/3HP; 10A, 250VAC, 1/3HP UL, cUL (Rating C)
  • SPST or SPDT, momentary or latching function
  • Panel mount snap-in or panel mount snap-in right angle design
  • Solder, quick connect – 0.187″, or PC Pin termination options
  • Full LED illumination or non-illuminated options
  • Multiple housing and actuator color options
  • Eight actuator marking options
  • Many illumination voltage options
  • -20°C to 55°C operating temperature

RA1 Series Markets

Tour Bus

Product Specifications

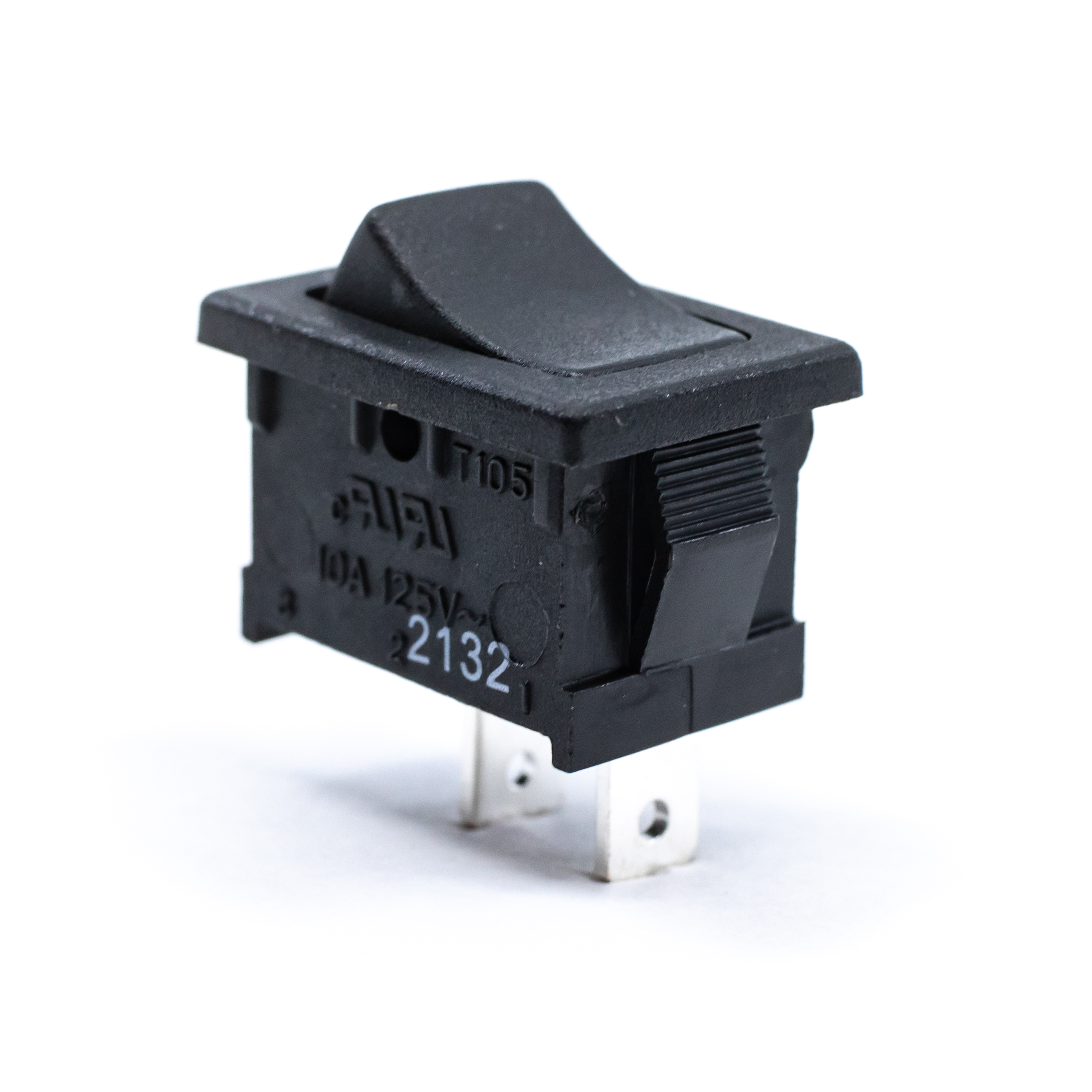

RA11131100

ROCKER, 10A, 125VAC, SPST, Off-On, Panel Mount, Snap-In

  • Series Name RA1
  • PackagingBulk
  • Current Rating10A
  • Voltage Rating125VAC
  • CircuitSPST
  • FunctionOff-On
  • Mounting TypePanel Mount, Snap-In
  • Termination TypeQuick Connect - 0.187"
  • Actuator TypeConcave (Curved)
  • Actuator ColorBlack
  • Illumination Style-
  • Illumination Color-
  • Panel Cutout DimensionsRectangular - 19.2mm x 13mm
  • Operating Temperature-20°C to 55°C
