Read MoreR7 Series Sealed, Illuminated, Power Rocker Switch
R7 Series Sealed, Illuminated, Power Rocker Switch
Stock Check for R726FB1-SXXXNBBNNX
Not the product you are looking for? Configure your product
ROCKER, 20A, 125VAC, DPDT, (On)-Off-(On), Panel Mount, Snap-In
About R7 Series
- UL power rated;Â Ergonomic design for harsh environments
- IP67 (Ratings B, D);Â IP40 (Ratings 2, 4, 8, 9)
- 37mm x 21.2mm panel cutout size
- Electrical ratings / Temp:
- B – 20(8)A @ 125/250VAC, µT55
- D – 16A @ 6-30VDC, µT55
- 2 – 20(8)A @ 125/250VAC, µT85/T55
- 4 – 16A @ 6-30VDC, µT85/T55
- 8 – 20(8)A @ 125/250VAC, µ40T85/T55
- 9 – 16A @ 6-30VDC, µ40T85/T55
- Single or double pole; two or three positions; latching or momentary
- Solder, quick connect – 0.250″, screw, or wire leads termination
- Many actuator style options;Â Custom actuator markings available
- LED illumination color and voltage options including dual LED
Product Specifications
R726FB1-SXXXNBBNNX

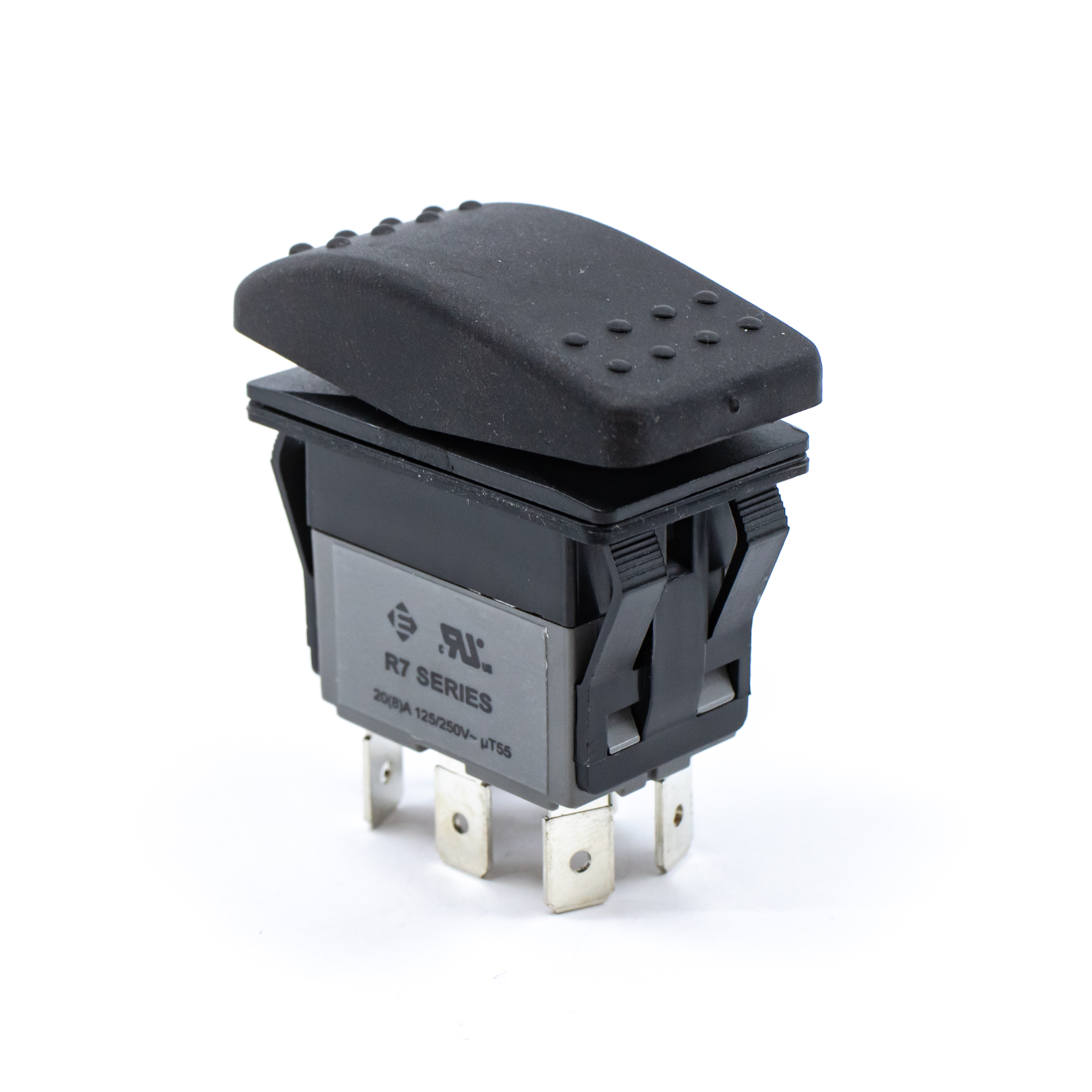

ROCKER, 20A, 125VAC, DPDT, (On)-Off-(On), Panel Mount, Snap-In
- Series Name R7
- PackagingBulk
- Current Rating20A
- Voltage Rating125VAC
- CircuitDPDT
- Function(On)-Off-(On)
- Mounting TypePanel Mount, Snap-In
- Termination TypeQuick Connect - 0.250
- Actuator TypeConvex (Reverse V)
- Actuator ColorBlack
- Illumination ColorNon-illuminated
- Ingress ProtectionIP67
- Panel Cutout DimensionsRectangular - 37mm x 21.2mm
- Operating Temperature0°C to 55°C
Support for R726FB1-SXXXNBBNNX
Not the product you are looking for? Configure your product
